Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

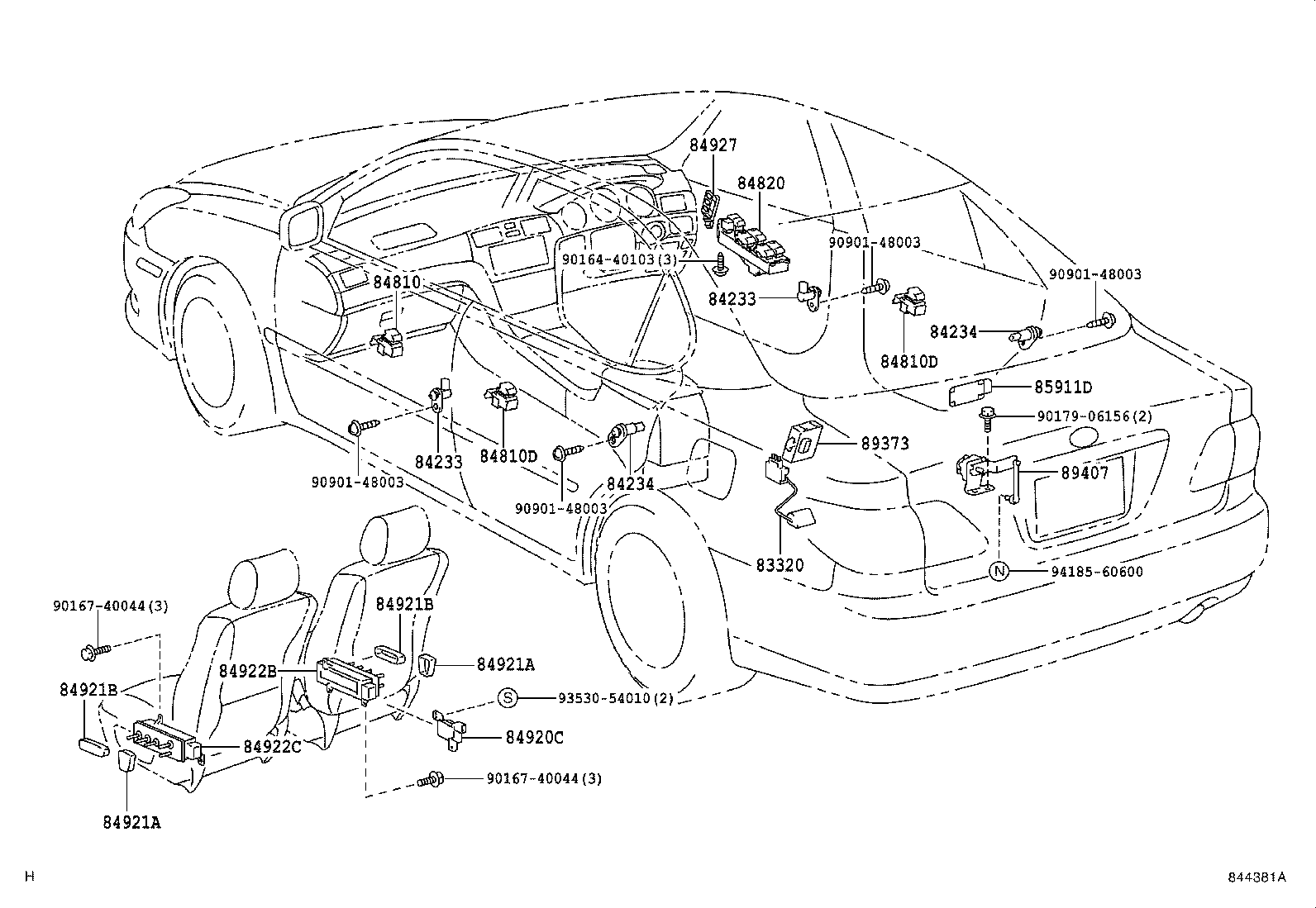

Exploded illustration 844381A 9016740044 — not listed in this catalogue 84921A — KNOB, POWER SEAT SWITCH (FOR RECLINING) (8 parts) 84921B — KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) (8 parts) 84922B — SWITCH, FRONT POWER SEAT, RH (3 parts) 84922C — SWITCH, FRONT POWER SEAT, LH (2 parts) 9090148003 — not listed in this catalogue 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (2 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (2 parts) 84921B — KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) (8 parts) 84921A — KNOB, POWER SEAT SWITCH (FOR RECLINING) (8 parts) 84920C — SWITCH ASSY, POWER SEAT FRONT, RH (4 parts) 9016740044 — not listed in this catalogue 9353054010 — not listed in this catalogue 9090148003 — not listed in this catalogue 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (2 parts) 83320 — GAGE ASSY, FUEL SENDER (2 parts) 89373 — SENSOR, LAMP FAILURE INDICATOR (3 parts) 84810D — SWITCH ASSY, POWER WINDOW REGULATOR, REAR (2 parts) 84234 — SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) (2 parts) 9090148003 — not listed in this catalogue 9090148003 — not listed in this catalogue 84233 — SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) (2 parts) 89407 — SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH (2 parts) 85911D — RELAY, REAR SUNSHADE (2 parts) 9017906156 — not listed in this catalogue 9418560600 — not listed in this catalogue 84820 — MASTER SWITCH ASSY, POWER WINDOW REGULATOR (2 parts) 84927 — SWITCH, SEAT MEMORY (1 parts) 9016440103 — not listed in this catalogue 84810 — SWITCH ASSY, POWER WINDOW REGULATOR (2 parts)
844381A · 20 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
83320 — Gage Assy, Fuel Sender
83320-33070 Gage Assy, Fuel Sender
2001-07 → 2004-06 ended
MCV30 ¥4,330
83320-33070 Gage Assy, Fuel Sender
2004-06 → 2006-03 ended
MCV30 ¥4,330
84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84231-60070 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2001-07 → 2004-06 ended
MCV30 ¥660
84231-60070 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2004-06 → —
MCV30 ¥660
84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84231-53010 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2001-07 → 2004-06 ended
MCV30 ¥660
84231-53010 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2004-06 → —
MCV30 ¥660
84810 — Switch Assy, Power Window Regulator
84030-33030 Switch Assy, Power Window Regulator
2001-07 → 2004-06 ended
MCV30 ¥19,400
84030-33030 Switch Assy, Power Window Regulator
2004-06 → —
MCV30 ¥19,400
84810D — Switch Assy, Power Window Regulator, Rear
84030-33060 Switch Assy, Power Window Regulator, Rear
2001-07 → 2004-06 ended
MCV30 ¥13,300
84030-33060 Switch Assy, Power Window Regulator, Rear
2004-06 → —
MCV30 ¥13,300
84820 — Master Switch Assy, Power Window Regulator
84040-33040 Master Switch Assy, Power Window Regulator
2001-07 → 2004-06 ended
MCV30 ¥30,700
84040-33040 Master Switch Assy, Power Window Regulator
2004-06 → —
MCV30 ¥30,700
84920C — Switch Assy, Power Seat Front, RH
84920-33040-A0 note Switch Assy, Power Seat Front, RH
2001-07 → 2004-06 ended
MCV30 ¥5,300
84920-33040-C0 note Switch Assy, Power Seat Front, RH
2001-07 → 2004-06 ended
MCV30 ¥5,300
84920-60040-A1 note Switch Assy, Power Seat Front, RH
2004-06 → 2006-03 ended
MCV30 ¥4,890
84920-60040-C0 note Switch Assy, Power Seat Front, RH
2004-06 → 2006-03 ended
MCV30 ¥3,380
84921A — Knob, Power Seat Switch (FOR RECLINING)
84921-33120-A0 note Knob, Power Seat Switch (FOR RECLINING)
2001-07 → 2004-06 ended
MCV30 ¥500
84921-33120-A0 note Knob, Power Seat Switch (FOR RECLINING)
2001-07 → 2004-06 ended
MCV30 ¥500
84921-33120-C0 note Knob, Power Seat Switch (FOR RECLINING)
2001-07 → 2004-06 ended
MCV30 ¥500
84921-33120-C0 note Knob, Power Seat Switch (FOR RECLINING)
2001-07 → 2004-06 ended
MCV30 ¥500
84921-60110-A1 note Knob, Power Seat Switch (FOR RECLINING)
2004-06 → 2006-03 ended
MCV30 ¥780
84921-60110-C0 note Knob, Power Seat Switch (FOR RECLINING)
2004-06 → 2006-03 ended
MCV30 ¥540
84921-60120-A1 note Knob, Power Seat Switch (FOR RECLINING)
2004-06 → 2006-03 ended
MCV30 ¥780
84921-60120-C0 note Knob, Power Seat Switch (FOR RECLINING)
2004-06 → 2006-03 ended
MCV30 ¥540
84921B — Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84921-33110-A0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2001-07 → 2004-06 ended
MCV30 ¥820
84921-33110-A0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2001-07 → 2004-06 ended
MCV30 ¥820
84921-33110-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2001-07 → 2004-06 ended
MCV30 ¥820
84921-33110-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2001-07 → 2004-06 ended
MCV30 ¥820
84921-60080-A1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2004-06 → 2006-03 ended
MCV30 ¥820
84921-60080-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2004-06 → 2006-03 ended
MCV30 ¥570
84921-60100-A1 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2004-06 → 2006-03 ended
MCV30 ¥820
84921-60100-C0 note Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
2004-06 → 2006-03 ended
MCV30 ¥570
84922B — Switch, Front Power Seat, RH
84922-30210 Switch, Front Power Seat, RH
2001-07 → 2004-06 ended
MCV30 ¥13,000
84070-33020 note Switch, Front Power Seat, RH
2004-06 → 2006-03 ended
MCV30 ¥38,100
84922-58010 Switch, Front Power Seat, RH
2004-06 → 2006-03 ended
MCV30 ¥8,900
84922C — Switch, Front Power Seat, LH
84922-30230 Switch, Front Power Seat, LH
2001-07 → 2004-06 ended
MCV30 ¥12,800
84922-60120 Switch, Front Power Seat, LH
2004-06 → 2006-03 ended
MCV30 ¥7,600
84927 — Switch, Seat Memory
84927-33040 Switch, Seat Memory
2004-06 → 2006-03 ended
MCV30 ¥6,000
85911D — Relay, Rear Sunshade
85911-33010 Relay, Rear Sunshade
2001-07 → 2004-06 ended
MCV30 30G ¥27,900
85911-33010 Relay, Rear Sunshade
2004-06 → 2006-03 ended
MCV30 30G ¥27,900
89373 — Sensor, Lamp Failure Indicator
89373-33300 Sensor, Lamp Failure Indicator
2001-07 → 2004-06 ended
MCV30 ¥17,500
89373-33290 Sensor, Lamp Failure Indicator
2004-06 → —
MCV30 ¥17,500
89373-33300 note Sensor, Lamp Failure Indicator
2004-06 → —
MCV30 ¥17,500
89407 — Sensor Sub-assy, Height Control, Rear RH
89407-48010 Sensor Sub-assy, Height Control, Rear RH
2001-07 → 2004-06 ended
MCV30 ¥41,700
89407-48010 Sensor Sub-assy, Height Control, Rear RH
2004-06 → —
MCV30 ¥41,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
