Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

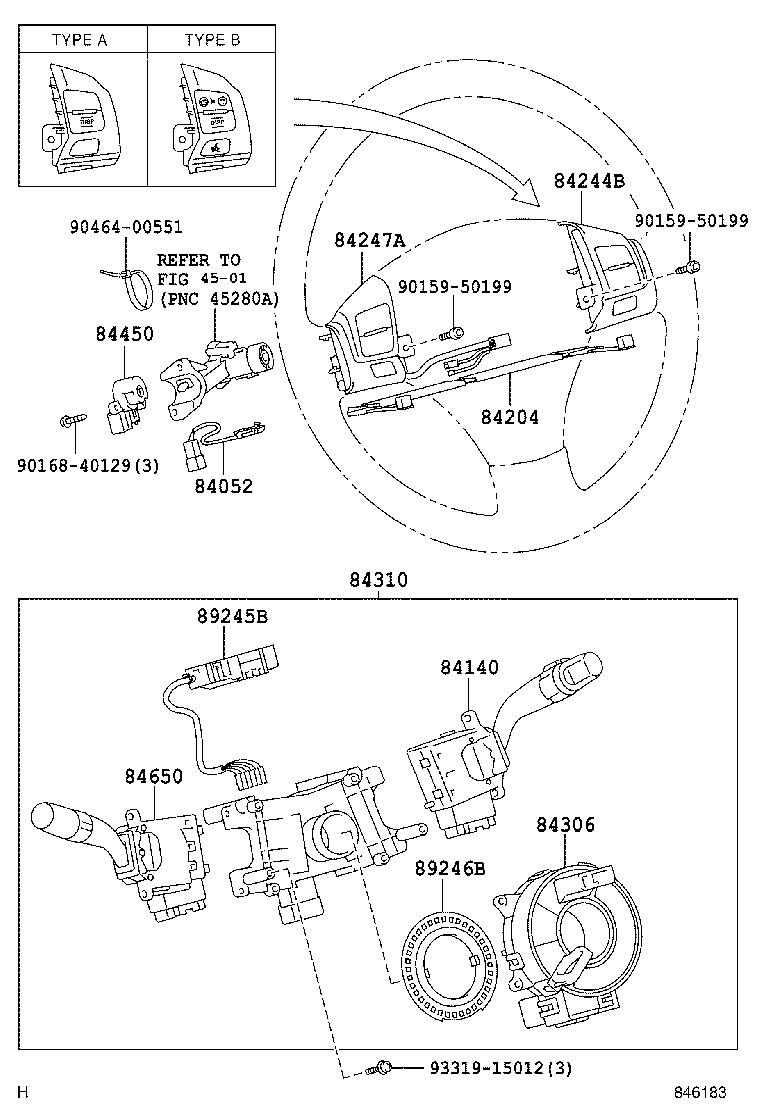

Exploded illustration 846183 9046400551 — not listed in this catalogue 84450 — SWITCH ASSY, IGNITION OR STARTER (2 parts) 84052 — SWITCH ASSY, UN-LOCK WARNING (2 parts) 84244B — SWITCH, STEERING PAD, RH (4 parts) 84247A — SWITCH, STEERING PAD, LH (4 parts) 84310 — SWITCH ASSY, TURN SIGNAL (12 parts) 9016840129 — not listed in this catalogue 84204 — CABLE SUB-ASSY, STEERING PAD SWITCH (1 parts) 9015950199 — not listed in this catalogue 9015950199 — not listed in this catalogue 84140 — SWITCH ASSY, HEADLAMP DIMMER (4 parts) 89246B — DISC, SENSOR STEERING (3 parts) 84306 — CABLE SUB-ASSY, SPIRAL (3 parts) 9331915012 — not listed in this catalogue 89245B — SENSOR, STEERING (3 parts) 84650 — SWITCH ASSY, WINDSHIELD WIPER (2 parts) 4501 — not listed in this catalogue
846183 · 11 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
84052 — Switch Assy, Un-lock Warning
84052-33040 Switch Assy, Un-lock Warning
2001-07 → 2004-06 ended
MCV30 ¥1,720
84052-33040 Switch Assy, Un-lock Warning
2004-06 → 2006-03 ended
MCV30 ¥1,720
84140 — Switch Assy, Headlamp Dimmer
84140-26160 Switch Assy, Headlamp Dimmer
2001-07 → 2004-06 ended
MCV30 ¥9,400
84140-33130 note Switch Assy, Headlamp Dimmer
2001-07 → 2004-06 ended
MCV30 ¥15,300
84140-26160 Switch Assy, Headlamp Dimmer
2004-06 → —
MCV30 ¥9,400
84140-33130 note Switch Assy, Headlamp Dimmer
2004-06 → —
MCV30 ¥15,300
84204 — Cable Sub-assy, Steering Pad Switch
84204-33010 Cable Sub-assy, Steering Pad Switch
2004-06 → —
MCV30 ¥3,030
84244B — Switch, Steering Pad, RH
84244-33130-C0 note Switch, Steering Pad, RH
2004-06 → 2006-03 ended
MCV30 ¥4,980
84244-33130-E0 note Switch, Steering Pad, RH
2004-06 → 2006-03 ended
MCV30 ¥4,980
84244-33150-C0 note Switch, Steering Pad, RH
2004-06 → 2006-03 ended
MCV30 30G ¥7,500
84244-33150-E0 note Switch, Steering Pad, RH
2004-06 → 2006-03 ended
MCV30 30G ¥7,500
84247A — Switch, Steering Pad, LH
84247-33070-C0 note Switch, Steering Pad, LH
2004-06 → 2006-03 ended
MCV30 ¥7,800
84247-33070-E0 note Switch, Steering Pad, LH
2004-06 → 2006-03 ended
MCV30 ¥7,800
84247-33080-C0 note Switch, Steering Pad, LH
2004-06 → 2006-03 ended
MCV30 30G ¥8,800
84247-33080-E0 note Switch, Steering Pad, LH
2004-06 → 2006-03 ended
MCV30 30G ¥8,800
84306 — Cable Sub-assy, Spiral
84306-33090 Cable Sub-assy, Spiral
2001-07 → 2003-05 ended
MCV30 ¥20,900
84306-60080 Cable Sub-assy, Spiral
2003-05 → 2004-06 ended
MCV30 ¥14,300
84306-60080 Cable Sub-assy, Spiral
2004-06 → —
MCV30 ¥14,300
84310 — Switch Assy, Turn Signal
84310-3T010 note Switch Assy, Turn Signal
2001-07 → 2004-06 ended
MCV30 30G ¥45,700
84310-3T010 note Switch Assy, Turn Signal
2002-04 → 2004-06 ended
MCV30 30X ¥45,700
84310-3T030 Switch Assy, Turn Signal
2001-07 → 2004-06 ended
MCV30 30G ¥44,800
84310-3T030 note Switch Assy, Turn Signal
2002-04 → 2004-06 ended
MCV30 30X ¥44,800
84310-3T120 note Switch Assy, Turn Signal
2001-07 → 2004-06 ended
MCV30 30X ¥42,100
84310-3T130 Switch Assy, Turn Signal
2001-07 → 2004-06 ended
MCV30 30X ¥41,300
84310-3T010 note Switch Assy, Turn Signal
2004-06 → —
MCV30 30G ¥45,700
84310-3T010 note Switch Assy, Turn Signal
2004-06 → —
MCV30 30X ¥45,700
84310-3T030 Switch Assy, Turn Signal
2004-06 → —
MCV30 30G ¥44,800
84310-3T030 note Switch Assy, Turn Signal
2004-06 → —
MCV30 30X ¥44,800
84310-3T120 note Switch Assy, Turn Signal
2004-06 → —
MCV30 30X ¥42,100
84310-3T130 Switch Assy, Turn Signal
2004-06 → —
MCV30 30X ¥41,300
84450 — Switch Assy, Ignition OR Starter
84450-12200 Switch Assy, Ignition OR Starter
2001-07 → 2004-06 ended
MCV30 ¥3,240
84450-12200 Switch Assy, Ignition OR Starter
2004-06 → 2006-03 ended
MCV30 ¥3,240
84650 — Switch Assy, Windshield Wiper
84652-33400 Switch Assy, Windshield Wiper
2001-07 → 2004-06 ended
MCV30 ¥10,300
84652-33400 Switch Assy, Windshield Wiper
2004-06 → —
MCV30 ¥10,300
89245B — Sensor, Steering
89245-33010 Sensor, Steering
2001-07 → 2004-06 ended
MCV30 30G ¥23,300
89245-33010 Sensor, Steering
2002-04 → 2004-06 ended
MCV30 30X ¥23,300
89245-33010 Sensor, Steering
2004-06 → 2006-03 ended
MCV30 ¥23,300
89246B — Disc, Sensor Steering
89246-22020 Disc, Sensor Steering
2001-07 → 2004-06 ended
MCV30 30G ¥6,000
89246-22020 Disc, Sensor Steering
2002-04 → 2004-06 ended
MCV30 30X ¥6,000
89246-22020 Disc, Sensor Steering
2004-06 → 2006-03 ended
MCV30 ¥6,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
