Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

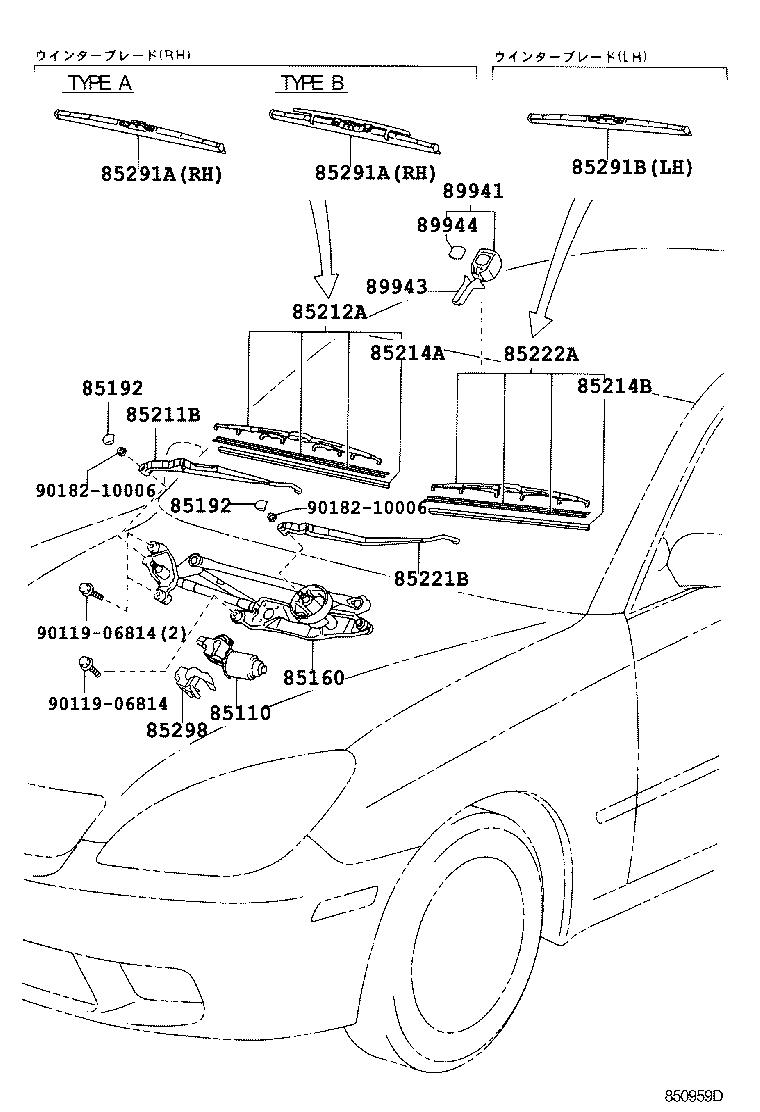

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-33280 |
Motor Assy, Windshield Wiper
2001-07 → 2004-06
ended
|
MCV30 | ¥27,500 | |
| 85110-33290 note |
Motor Assy, Windshield Wiper
2001-07 → 2004-06
ended
|
MCV30 | ¥27,900 | |
| 85110-33280 |
Motor Assy, Windshield Wiper
2004-06 → —
|
MCV30 | ¥27,500 | |
| 85110-33290 note |
Motor Assy, Windshield Wiper
2004-06 → —
|
MCV30 | ¥27,900 | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-33200 |
Link Assy, Windshield Wiper
2001-07 → 2004-06
ended
|
MCV30 | ¥10,300 | |
| 85150-33210 note |
Link Assy, Windshield Wiper
2001-07 → 2004-06
ended
|
MCV30 | ¥13,000 | |
| 85150-33200 |
Link Assy, Windshield Wiper
2004-06 → —
|
MCV30 | ¥10,300 | |
| 85150-33210 note |
Link Assy, Windshield Wiper
2004-06 → —
|
MCV30 | ¥13,000 | |
| 85192 — Cover, Windshield Wiper Arm | ||||
| 85292-13010 |
Cover, Windshield Wiper Arm
2001-07 → 2004-06
ended
|
MCV30 | ¥250 | |
| 85292-13010 |
Cover, Windshield Wiper Arm
2004-06 → —
|
MCV30 | ¥250 | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-33230 |
Arm, Front Wiper, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥5,300 | |
| 85211-33240 note |
Arm, Front Wiper, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥5,300 | |
| 85211-33230 |
Arm, Front Wiper, RH
2004-06 → —
|
MCV30 | ¥5,300 | |
| 85211-33240 note |
Arm, Front Wiper, RH
2004-06 → —
|
MCV30 | ¥5,300 | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-33190 |
Blade, FR Wiper, RH
2001-07 → 2004-10
ended
|
MCV30 | ¥4,260 | |
| 85212-24100 |
Blade, FR Wiper, RH
2004-10 → 2006-03
ended
|
MCV30 | ¥4,260 | |
| 85212-33190 |
Blade, FR Wiper, RH
2004-06 → 2004-10
ended
|
MCV30 | ¥4,260 | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-50120 |
Rubber, Wiper, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,090 | |
| 85214-50100 |
Rubber, Wiper, RH
2004-10 → 2006-03
ended
|
MCV30 | ¥850 | |
| 85214-50120 |
Rubber, Wiper, RH
2004-06 → 2004-10
ended
|
MCV30 | ¥1,090 | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-53050 |
Rubber, Wiper, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥1,020 | |
| 85214-24050 |
Rubber, Wiper, LH
2004-10 → 2006-03
ended
|
MCV30 | ¥1,020 | |
| 85214-53050 |
Rubber, Wiper, LH
2004-06 → 2004-10
ended
|
MCV30 | ¥1,020 | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-33220 |
Arm, Front Wiper, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥5,300 | |
| 85221-33230 note |
Arm, Front Wiper, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥5,300 | |
| 85221-33220 |
Arm, Front Wiper, LH
2004-06 → —
|
MCV30 | ¥5,300 | |
| 85221-33230 note |
Arm, Front Wiper, LH
2004-06 → —
|
MCV30 | ¥5,300 | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-43020 |
Blade, FR Wiper, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥3,040 | |
| 85222-24100 |
Blade, FR Wiper, LH
2004-10 → 2006-03
ended
|
MCV30 | ¥3,040 | |
| 85222-43020 |
Blade, FR Wiper, LH
2004-06 → 2004-10
ended
|
MCV30 | ¥3,040 | |
| 85291A — Blade, Front Wiper, Winter, RH | ||||
| 85291-24090 note |
Blade, Front Wiper, Winter, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥5,700 | |
| 85291-24100 note |
Blade, Front Wiper, Winter, RH
2001-07 → 2004-06
ended
|
MCV30 | ¥6,900 | |
| 85291-24090 note |
Blade, Front Wiper, Winter, RH
2004-06 → —
|
MCV30 | ¥5,700 | |
| 85291-24100 note |
Blade, Front Wiper, Winter, RH
2004-06 → —
|
MCV30 | ¥6,900 | |
| 85291B — Blade, Front Wiper, Winter, LH | ||||
| 85291-33060 |
Blade, Front Wiper, Winter, LH
2001-07 → 2004-06
ended
|
MCV30 | ¥4,800 | |
| 85291-33060 |
Blade, Front Wiper, Winter, LH
2004-06 → —
|
MCV30 | ¥4,800 | |
| 85298 — Cover, Wiper Motor | ||||
| 85111-33020 |
Cover, Wiper Motor
2004-06 → —
|
MCV30 | — | |
| 89941 — Sensor, Rain | ||||
| 89941-33010 |
Sensor, Rain
2001-07 → 2002-07
ended
|
MCV30 | ¥19,900 | |
| 89941-33010 |
Sensor, Rain
2002-10 → 2004-06
ended
|
MCV30 | ¥19,900 | |
| 89941-33011 |
Sensor, Rain
2002-07 → 2002-10
ended
|
MCV30 | ¥19,800 | |
| 89941-33010 |
Sensor, Rain
2004-06 → —
|
MCV30 | ¥19,900 | |
| 89943 — Cover, Rain Sensor | ||||
| 89943-33010 |
Cover, Rain Sensor
2001-07 → 2004-06
ended
|
MCV30 | ¥2,010 | |
| 89943-33010 |
Cover, Rain Sensor
2004-06 → 2004-08
ended
|
MCV30 | ¥2,010 | |
| 89943-33030 |
Cover, Rain Sensor
2004-09 → —
|
MCV30 | ¥2,010 | |
| 89944 — Tape, Rain Sensor | ||||
| 89944-33010 |
Tape, Rain Sensor
2001-07 → 2004-06
ended
|
MCV30 | ¥2,380 | |
| 89944-33010 |
Tape, Rain Sensor
2004-06 → —
|
MCV30 | ¥2,380 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
