Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

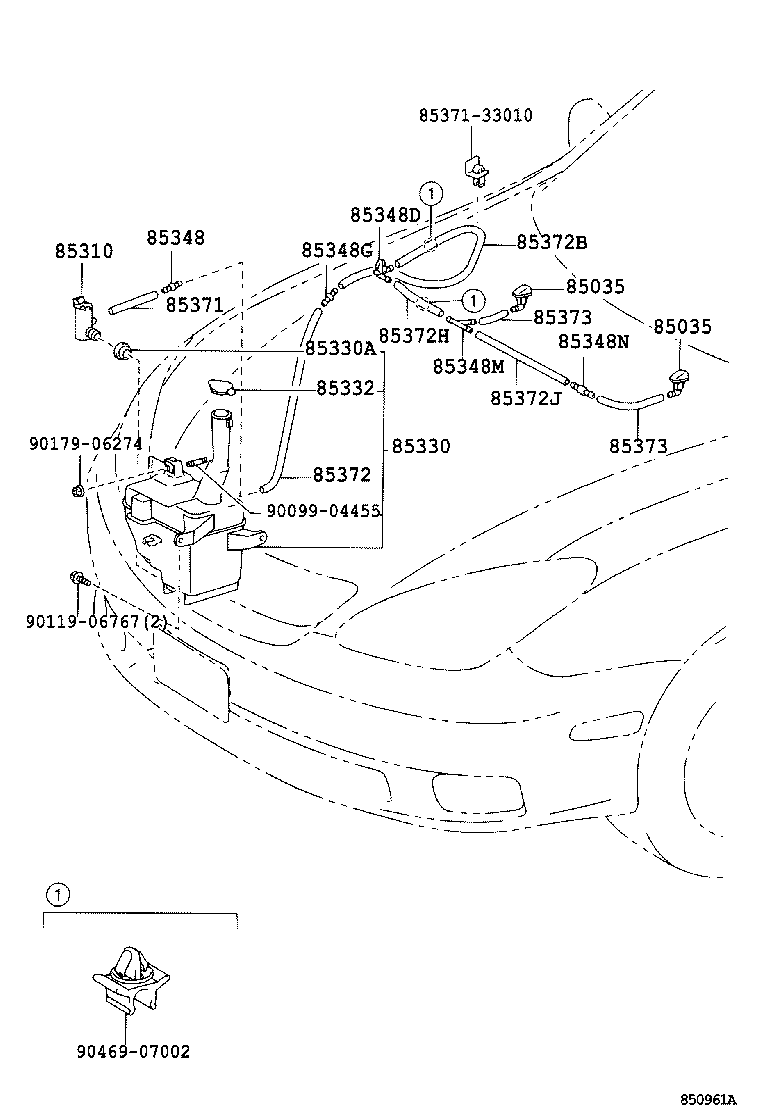

Exploded illustration 850961A 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (2 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (2 parts) 85371 — HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) (2 parts) 9017906274 — not listed in this catalogue 9011906767 — not listed in this catalogue 85330A — BUSH, WINDSHIELD WASHER JAR (2 parts) 85332 — CAP, WINDSHIELD WASHER JAR (2 parts) 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (2 parts) 9009904455 — not listed in this catalogue 85330 — JAR ASSY, WINDSHIELD WASHER (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (2 parts) 85372J — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 (2 parts) 85348M — JOINT, WINDSHIELD WASHER HOSE, NO.3 (2 parts) 85372H — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 (2 parts) 85348N — JOINT, WINDSHIELD WASHER HOSE, NO.4 (2 parts) 85035 — NOZZLE SUB-ASSY, WASHER (12 parts) 85035 — NOZZLE SUB-ASSY, WASHER (12 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (2 parts) 85372B — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 (2 parts) 85348D — JOINT, WINDSHIELD WASHER ELBOW, NO.1 (2 parts) 85348G — JOINT, WINDSHIELD WASHER HOSE, NO.2 (2 parts) 9046907002 — not listed in this catalogue 8537133010 — not listed in this catalogue
850961A · 18 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
85035 — Nozzle Sub-assy, Washer
85381-33060-A0 note Nozzle Sub-assy, Washer
2001-07 → 2004-06 ended
MCV30 —
85381-33060-B0 note Nozzle Sub-assy, Washer
2001-07 → 2004-06 ended
MCV30 —
85381-33060-C0 note Nozzle Sub-assy, Washer
2001-07 → 2004-06 ended
MCV30 —
85381-33060-D0 note Nozzle Sub-assy, Washer
2001-07 → 2004-06 ended
MCV30 —
85381-33060-H0 note Nozzle Sub-assy, Washer
2001-07 → 2004-06 ended
MCV30 —
85381-33060-J0 note Nozzle Sub-assy, Washer
2001-07 → 2004-06 ended
MCV30 —
85381-33060-A0 note Nozzle Sub-assy, Washer
2004-06 → 2006-03 ended
MCV30 —
85381-33060-B1 note Nozzle Sub-assy, Washer
2004-06 → 2006-03 ended
MCV30 —
85381-33060-B2 note Nozzle Sub-assy, Washer
2004-06 → 2006-03 ended
MCV30 —
85381-33060-C0 note Nozzle Sub-assy, Washer
2004-06 → 2006-03 ended
MCV30 —
85381-33060-D0 note Nozzle Sub-assy, Washer
2004-06 → 2006-03 ended
MCV30 —
85381-33060-J0 note Nozzle Sub-assy, Washer
2004-06 → 2006-03 ended
MCV30 —
85310 — Motor And Pump Assy, Windshield Washer
85330-10280 Motor And Pump Assy, Windshield Washer
2001-07 → 2004-06 ended
MCV30 ¥0
85330-10280 Motor And Pump Assy, Windshield Washer
2004-06 → —
MCV30 ¥0
85330 — Jar Assy, Windshield Washer
85315-33270 Jar Assy, Windshield Washer
2001-07 → 2004-06 ended
MCV30 —
85315-33270 Jar Assy, Windshield Washer
2004-06 → —
MCV30 —
85330A — Bush, Windshield Washer Jar
90099-32089 Bush, Windshield Washer Jar
2001-07 → 2004-06 ended
MCV30 —
90099-32089 Bush, Windshield Washer Jar
2004-06 → —
MCV30 —
85332 — Cap, Windshield Washer Jar
85316-16070 Cap, Windshield Washer Jar
2001-07 → 2004-06 ended
MCV30 ¥0
85316-16070 Cap, Windshield Washer Jar
2004-06 → —
MCV30 ¥0
85348 — Joint, Windshield Washer Hose, NO.1
85349-89122 Joint, Windshield Washer Hose, NO.1
2001-07 → 2004-06 ended
MCV30 —
85349-89122 Joint, Windshield Washer Hose, NO.1
2004-06 → —
MCV30 —
85348D — Joint, Windshield Washer Elbow, NO.1
85375-16160 Joint, Windshield Washer Elbow, NO.1
2001-07 → 2004-06 ended
MCV30 ¥0
85375-16160 Joint, Windshield Washer Elbow, NO.1
2004-06 → —
MCV30 ¥0
85348G — Joint, Windshield Washer Hose, NO.2
85349-89122 Joint, Windshield Washer Hose, NO.2
2001-07 → 2004-06 ended
MCV30 —
85349-89122 Joint, Windshield Washer Hose, NO.2
2004-06 → —
MCV30 —
85348M — Joint, Windshield Washer Hose, NO.3
85348-12250 Joint, Windshield Washer Hose, NO.3
2001-07 → 2004-06 ended
MCV30 —
85348-12250 Joint, Windshield Washer Hose, NO.3
2004-06 → —
MCV30 —
85348N — Joint, Windshield Washer Hose, NO.4
85349-89122 Joint, Windshield Washer Hose, NO.4
2001-07 → 2004-06 ended
MCV30 —
85349-89122 Joint, Windshield Washer Hose, NO.4
2004-06 → —
MCV30 —
85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT)
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2001-07 → 2004-06 ended
MCV30 —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2004-06 → —
MCV30 —
85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
90446-07001 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2001-07 → 2004-06 ended
MCV30 —
90446-07001 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2004-06 → —
MCV30 —
85372B — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2001-07 → 2004-06 ended
MCV30 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2004-06 → —
MCV30 —
85372H — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
90099-59175 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
2001-07 → 2004-06 ended
MCV30 —
90099-59175 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
2004-06 → —
MCV30 —
85372J — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
90446-07001 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
2001-07 → 2004-06 ended
MCV30 —
90446-07001 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
2004-06 → —
MCV30 —
85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE)
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2001-07 → 2004-06 ended
MCV30 —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2004-06 → —
MCV30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
