Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

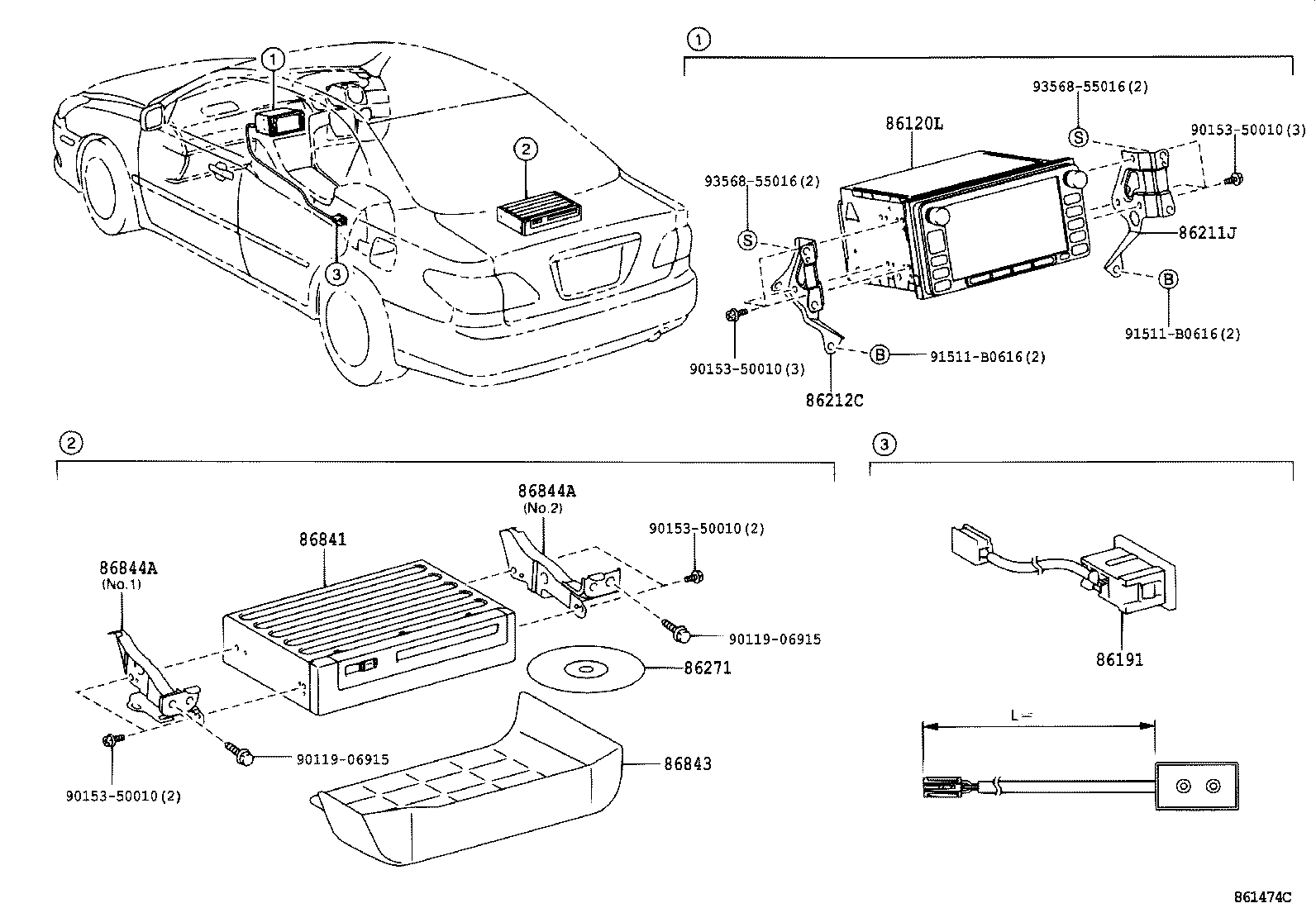

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120L — Receiver Assy, Navigation | ||||
| 86120-33561 note |
Receiver Assy, Navigation
2003-01 → 2003-07
ended
|
MCV30 30G | ¥414,000 | |
| 86120-33670 note |
Receiver Assy, Navigation
2003-07 → 2004-06
ended
|
MCV30 30G | ¥414,000 | |
| 86120-33560 note |
Receiver Assy, Navigation
2001-07 → 2003-01
ended
|
MCV30 30G | ¥414,000 | |
| 86120-33670 note |
Receiver Assy, Navigation
2004-06 → —
|
MCV30 30G | ¥414,000 | |
| 86191 — Terminal, Video(VIDEO ADAPTER) | ||||
| 86191-33010 note |
Terminal, Video(VIDEO ADAPTER)
2001-07 → 2004-06
ended
|
MCV30 30G | ¥4,000 | |
| 86191-33020 note |
Terminal, Video(VIDEO ADAPTER)
2001-07 → 2004-06
ended
|
MCV30 30G | ¥4,000 | |
| 86191-33010 note |
Terminal, Video(VIDEO ADAPTER)
2004-06 → —
|
MCV30 30G | ¥4,000 | |
| 86191-33020 note |
Terminal, Video(VIDEO ADAPTER)
2004-06 → —
|
MCV30 30G | ¥4,000 | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-33170 |
Bracket, Radio Receiver, NO.1
2001-07 → 2004-06
ended
|
MCV30 30G | ¥720 | |
| 86211-33170 |
Bracket, Radio Receiver, NO.1
2004-06 → —
|
MCV30 30G | ¥720 | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-33170 |
Bracket, Radio Receiver, NO.2
2001-07 → 2004-06
ended
|
MCV30 30G | ¥720 | |
| 86212-33170 |
Bracket, Radio Receiver, NO.2
2004-06 → —
|
MCV30 30G | ¥720 | |
| 86271 — Disc, Disc Player | ||||
| 86271-44020 |
Disc, Disc Player
2001-07 → 2003-07
ended
|
MCV30 30G | ¥25,000 | |
| 86271-52041 |
Disc, Disc Player
2003-07 → 2004-04
ended
|
MCV30 30G | — | |
| 86271-52042 |
Disc, Disc Player
2004-04 → 2004-06
ended
|
MCV30 30G | ¥12,500 | |
| 86271-52042 |
Disc, Disc Player
2004-06 → 2004-10
ended
|
MCV30 30G | ¥12,500 | |
| 86271-52043 |
Disc, Disc Player
2004-10 → 2005-07
ended
|
MCV30 30G | ¥12,500 | |
| 86271-52044 |
Disc, Disc Player
2005-07 → 2005-09
ended
|
MCV30 30G | ¥12,500 | |
| 86271-52045 |
Disc, Disc Player
2005-10 → —
|
MCV30 30G | — | |
| 86841 — Computer, Navigation | ||||
| 86841-44010 |
Computer, Navigation
2001-07 → 2003-07
ended
|
MCV30 30G | ¥309,000 | |
| 86841-52020 |
Computer, Navigation
2003-07 → 2004-06
ended
|
MCV30 30G | ¥309,000 | |
| 86841-52020 |
Computer, Navigation
2004-06 → —
|
MCV30 30G | ¥309,000 | |
| 86843 — Cover, Navigation Computer | ||||
| 86843-33040 |
Cover, Navigation Computer
2001-07 → 2004-06
ended
|
MCV30 30G | ¥6,300 | |
| 86843-33040 |
Cover, Navigation Computer
2004-06 → —
|
MCV30 30G | ¥6,300 | |
| 86844A — Bracket, Navigation Computer | ||||
| 86274-33230 note |
Bracket, Navigation Computer
2001-07 → 2004-06
ended
|
MCV30 30G | ¥750 | |
| 86274-33240 note |
Bracket, Navigation Computer
2001-07 → 2004-06
ended
|
MCV30 30G | ¥750 | |
| 86274-33230 note |
Bracket, Navigation Computer
2004-06 → —
|
MCV30 30G | ¥750 | |
| 86274-33240 note |
Bracket, Navigation Computer
2004-06 → —
|
MCV30 30G | ¥750 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
