Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

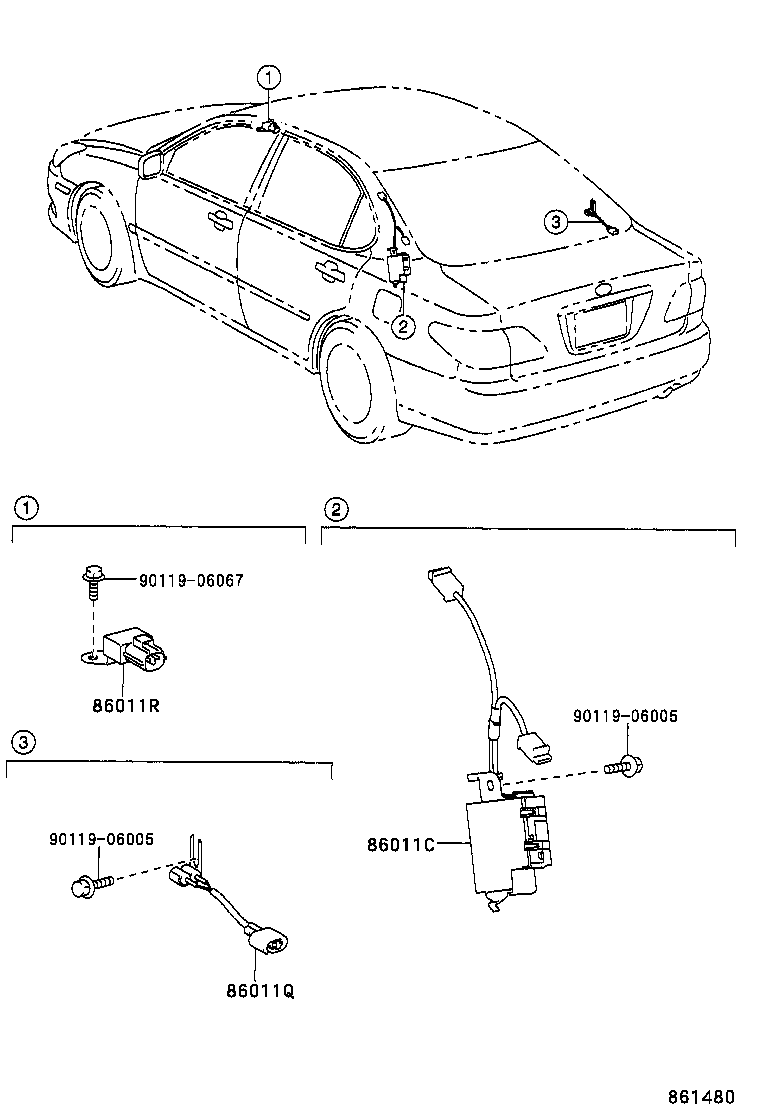

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011C — Filter, Noise | ||||
| 90980-05355 |
Filter, Noise
2001-07 → 2004-06
ended
|
MCV30 | ¥6,000 | |
| 90980-05355 |
Filter, Noise
2004-06 → —
|
MCV30 | ¥6,000 | |
| 86011Q — Condenser, Radio Setting | ||||
| 90980-04129 |
Condenser, Radio Setting
2001-07 → 2004-06
ended
|
MCV30 | ¥1,130 | |
| 90980-04129 |
Condenser, Radio Setting
2004-06 → —
|
MCV30 | ¥1,130 | |
| 86011R — Condenser, Radio Setting | ||||
| 90980-04153 |
Condenser, Radio Setting
2001-07 → 2004-06
ended
|
MCV30 | ¥1,360 | |
| 90980-04153 |
Condenser, Radio Setting
2004-06 → —
|
MCV30 | ¥1,360 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
