Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

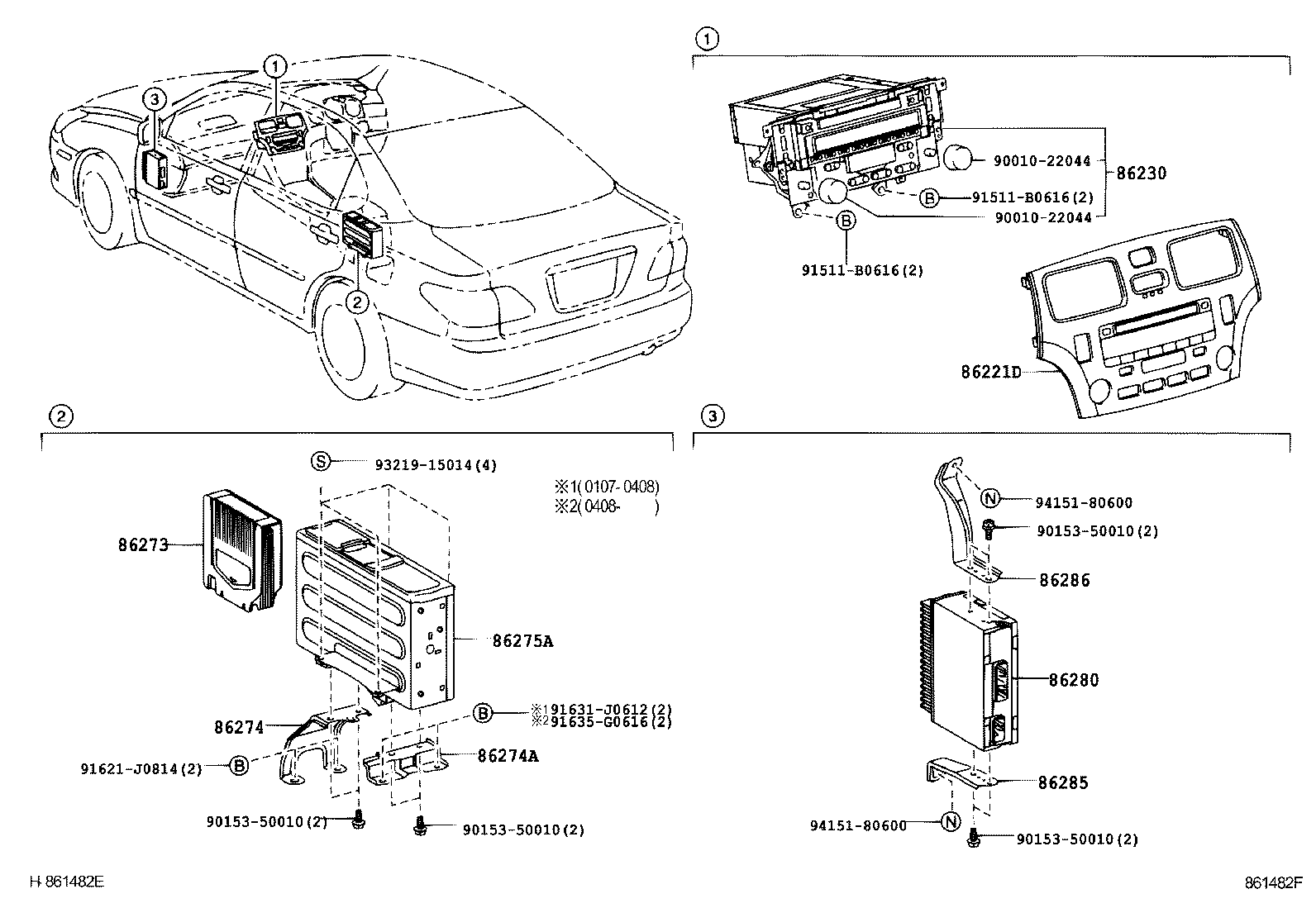

Exploded illustration 861482F 86273 — MAGAZINE, DISC PLAYER (2 parts) 86275A — CHANGER, DISC PLAYER (2 parts) 86274 — BRACKET, DISC PLAYER (2 parts) 86274A — BRACKET, DISC PLAYER (2 parts) 91631J0612 — not listed in this catalogue 9015350010 — not listed in this catalogue 9015350010 — not listed in this catalogue 91621J0814 — not listed in this catalogue 9321915014 — not listed in this catalogue 91511B0616 — not listed in this catalogue 86221D — PANEL, RADIO RECEIVER (2 parts) 9415180600 — not listed in this catalogue 86280 — AMPLIFIER ASSY, STEREO COMPONENT (5 parts) 86285 — BRACKET, AMPLIFIER, NO.1 (2 parts) 86286 — BRACKET, AMPLIFIER, NO.2 (4 parts) 9015350010 — not listed in this catalogue 9415180600 — not listed in this catalogue 9015350010 — not listed in this catalogue 86230 — CONTROLLER ASSY, STEREO COMPONENT (2 parts) 91511B0616 — not listed in this catalogue 91635G0616 — not listed in this catalogue 9001022044 — not listed in this catalogue 9001022044 — not listed in this catalogue
861482F · 9 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
86221D — Panel, Radio Receiver
86221-33040 Panel, Radio Receiver
2001-07 → 2004-06 ended
MCV30 30X ¥43,300
86221-33041 Panel, Radio Receiver
2004-06 → —
MCV30 30X ¥43,300
86230 — Controller Assy, Stereo Component
86230-33010 Controller Assy, Stereo Component
2001-07 → 2004-06 ended
MCV30 30X ¥126,000
86230-33011 Controller Assy, Stereo Component
2004-06 → —
MCV30 30X ¥126,000
86273 — Magazine, Disc Player
86273-50070 Magazine, Disc Player
2001-07 → 2004-06 ended
MCV30 ¥7,000
86273-50070 Magazine, Disc Player
2004-06 → —
MCV30 ¥7,000
86274 — Bracket, Disc Player
86274-33210 Bracket, Disc Player
2001-07 → 2004-06 ended
MCV30 ¥870
86274-33210 Bracket, Disc Player
2004-06 → —
MCV30 ¥870
86274A — Bracket, Disc Player
86274-33220 Bracket, Disc Player
2001-07 → 2004-06 ended
MCV30 ¥700
86274-33220 Bracket, Disc Player
2004-06 → —
MCV30 ¥700
86275A — Changer, Disc Player
86275-33080 Changer, Disc Player
2001-07 → 2004-06 ended
MCV30 ¥179,000
86275-33080 Changer, Disc Player
2004-06 → —
MCV30 ¥179,000
86280 — Amplifier Assy, Stereo Component
86280-33110 Amplifier Assy, Stereo Component
2001-07 → 2004-06 ended
MCV30 30X ¥46,400
86280-33120 Amplifier Assy, Stereo Component
2001-07 → 2003-07 ended
MCV30 30G ¥72,700
86280-33121 Amplifier Assy, Stereo Component
2003-07 → 2004-06 ended
MCV30 30G ¥72,800
86280-33111 Amplifier Assy, Stereo Component
2004-06 → —
MCV30 30X ¥46,400
86280-33122 Amplifier Assy, Stereo Component
2004-06 → —
MCV30 30G ¥72,800
86285 — Bracket, Amplifier, NO.1
86285-33080 Bracket, Amplifier, NO.1
2001-07 → 2004-06 ended
MCV30 ¥710
86285-33080 Bracket, Amplifier, NO.1
2004-06 → —
MCV30 ¥710
86286 — Bracket, Amplifier, NO.2
86286-33030 Bracket, Amplifier, NO.2
2001-07 → 2004-06 ended
MCV30 30X ¥900
86286-33050 Bracket, Amplifier, NO.2
2001-07 → 2004-06 ended
MCV30 30G ¥780
86286-33030 Bracket, Amplifier, NO.2
2004-06 → —
MCV30 30X ¥900
86286-33050 Bracket, Amplifier, NO.2
2004-06 → —
MCV30 30G ¥780
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
