Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

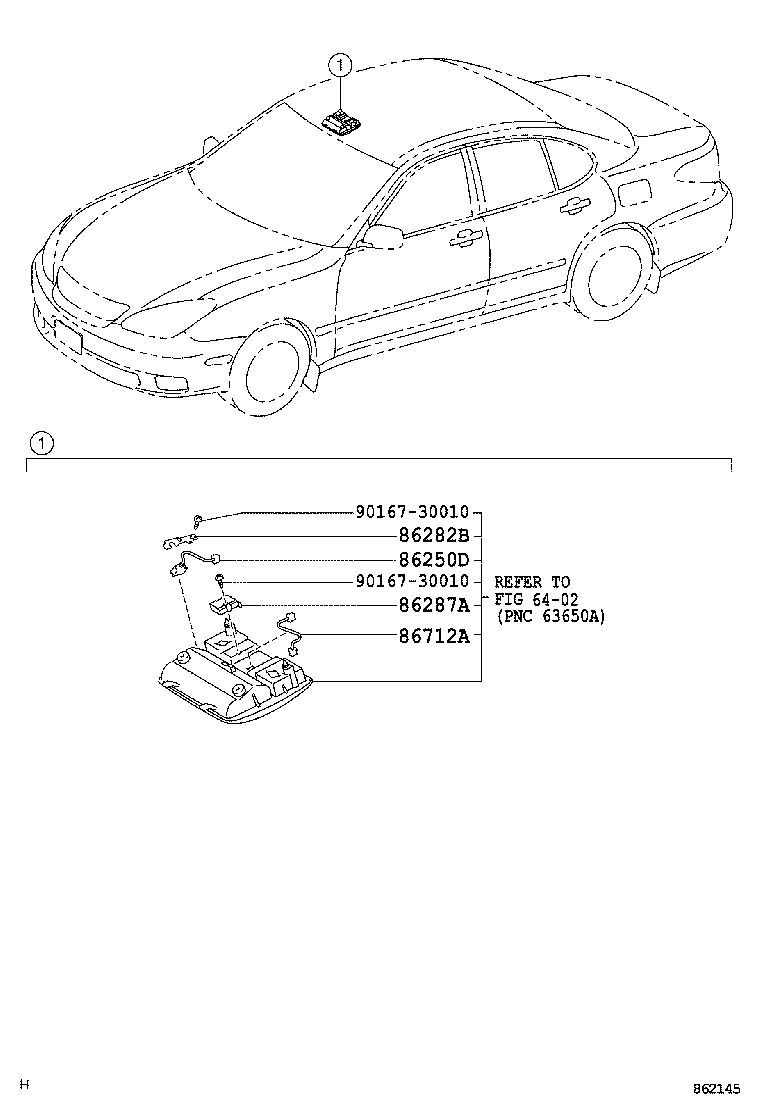

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86250D — Microphone Assy, Amplifier | ||||
| 86250-33010 |
Microphone Assy, Amplifier
2004-06 → 2006-03
ended
|
MCV30 30G | ¥5,400 | |
| 86282B — Bracket, Microphone | ||||
| 86282-33010 |
Bracket, Microphone
2004-06 → 2006-03
ended
|
MCV30 30G | ¥110 | |
| 86287A — Cover, Amplifier | ||||
| 86287-33010 |
Cover, Amplifier
2004-06 → 2006-03
ended
|
MCV30 30G | ¥390 | |
| 86712A — Wire, Telephone | ||||
| 86732-33010 |
Wire, Telephone
2004-06 → 2006-03
ended
|
MCV30 30G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
