Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

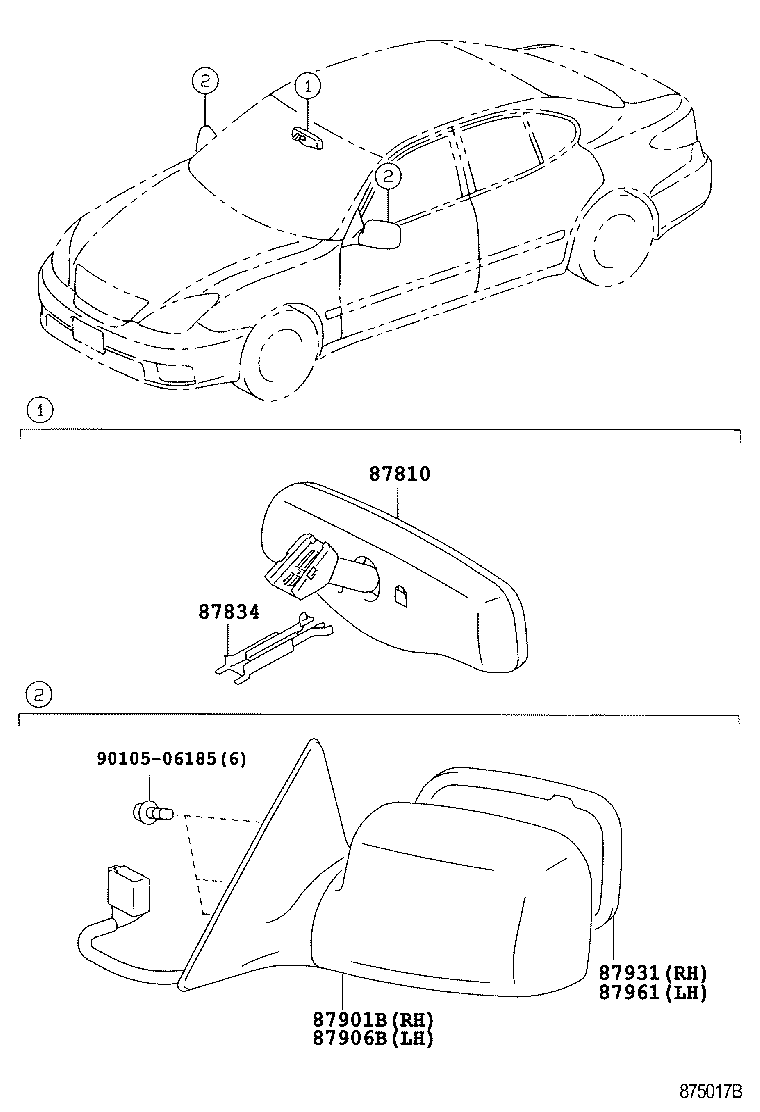

Exploded illustration 875017B 87810 — MIRROR ASSY, INNER REAR VIEW (2 parts) 87834 — COVER, INNER REAR VIEW MIRROR STAY HOLDER (3 parts) 9010506185 — not listed in this catalogue 87901B — MIRROR SUB-ASSY, OUTER REAR VIEW, RH (18 parts) 87906B — MIRROR SUB-ASSY, OUTER REAR VIEW, LH (18 parts) 87931 — OUTER MIRROR, RH (3 parts) 87961 — MIRROR OUTER, LH (3 parts)
875017B · 6 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
87810 — Mirror Assy, Inner Rear View
87810-AC040 Mirror Assy, Inner Rear View
2001-07 → 2004-06 ended
MCV30 ¥62,000
87810-AC040 Mirror Assy, Inner Rear View
2004-06 → —
MCV30 ¥62,000
87834 — Cover, Inner Rear View Mirror Stay Holder
87818-AC010 Cover, Inner Rear View Mirror Stay Holder
2001-07 → 2004-06 ended
MCV30 ¥360
87818-48010 Cover, Inner Rear View Mirror Stay Holder
2004-08 → 2006-03 ended
MCV30 ¥500
87818-AC010 Cover, Inner Rear View Mirror Stay Holder
2004-06 → 2004-07 ended
MCV30 ¥360
87901B — Mirror Sub-assy, Outer Rear View, RH
87901-33150-A0 note Mirror Sub-assy, Outer Rear View, RH
2001-07 → 2004-06 ended
MCV30 ¥48,000
87901-33150-B0 note Mirror Sub-assy, Outer Rear View, RH
2001-07 → 2004-06 ended
MCV30 ¥48,000
87901-33150-C0 note Mirror Sub-assy, Outer Rear View, RH
2001-07 → 2004-06 ended
MCV30 ¥48,000
87901-33150-D0 note Mirror Sub-assy, Outer Rear View, RH
2001-07 → 2004-06 ended
MCV30 ¥48,000
87901-33150-H0 note Mirror Sub-assy, Outer Rear View, RH
2001-07 → 2004-06 ended
MCV30 ¥48,000
87901-33150-J0 note Mirror Sub-assy, Outer Rear View, RH
2001-07 → 2004-06 ended
MCV30 ¥48,000
87901-33060-A0 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥53,400
87901-33060-B0 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥53,400
87901-33060-B1 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥53,400
87901-33060-C0 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥53,400
87901-33060-D0 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥53,400
87901-33060-J0 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥53,400
87901-33150-A0 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥48,000
87901-33150-B1 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥48,000
87901-33150-B2 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥48,000
87901-33150-C0 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥48,000
87901-33150-D0 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥48,000
87901-33150-J0 note Mirror Sub-assy, Outer Rear View, RH
2004-06 → 2006-03 ended
MCV30 ¥48,000
87906B — Mirror Sub-assy, Outer Rear View, LH
87906-33160-A0 note Mirror Sub-assy, Outer Rear View, LH
2001-07 → 2004-06 ended
MCV30 ¥48,100
87906-33160-B0 note Mirror Sub-assy, Outer Rear View, LH
2001-07 → 2004-06 ended
MCV30 ¥48,100
87906-33160-C0 note Mirror Sub-assy, Outer Rear View, LH
2001-07 → 2004-06 ended
MCV30 ¥48,100
87906-33160-D0 note Mirror Sub-assy, Outer Rear View, LH
2001-07 → 2004-06 ended
MCV30 ¥48,100
87906-33160-H0 note Mirror Sub-assy, Outer Rear View, LH
2001-07 → 2004-06 ended
MCV30 ¥48,000
87906-33160-J0 note Mirror Sub-assy, Outer Rear View, LH
2001-07 → 2004-06 ended
MCV30 ¥48,100
87906-33070-A0 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥50,000
87906-33070-B0 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥50,000
87906-33070-B1 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥50,000
87906-33070-C0 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥50,000
87906-33070-D0 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥50,000
87906-33070-J0 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥50,000
87906-33160-A0 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥48,100
87906-33160-B1 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥48,100
87906-33160-B2 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥48,100
87906-33160-C0 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥48,100
87906-33160-D0 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥48,100
87906-33160-J0 note Mirror Sub-assy, Outer Rear View, LH
2004-06 → 2006-03 ended
MCV30 ¥48,100
87931 — Outer Mirror, RH
87931-33600 Outer Mirror, RH
2001-07 → 2003-07 ended
MCV30 ¥3,870
87931-41090 Outer Mirror, RH
2003-07 → 2004-06 ended
MCV30 ¥4,420
87931-41090 Outer Mirror, RH
2004-06 → 2006-03 ended
MCV30 ¥4,420
87961 — Mirror Outer, LH
87961-3A170 Mirror Outer, LH
2001-07 → 2003-07 ended
MCV30 ¥3,560
87961-41080 Mirror Outer, LH
2003-07 → 2004-06 ended
MCV30 ¥4,420
87961-41080 Mirror Outer, LH
2004-06 → 2006-03 ended
MCV30 ¥4,420
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
