Toyota Windom

2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

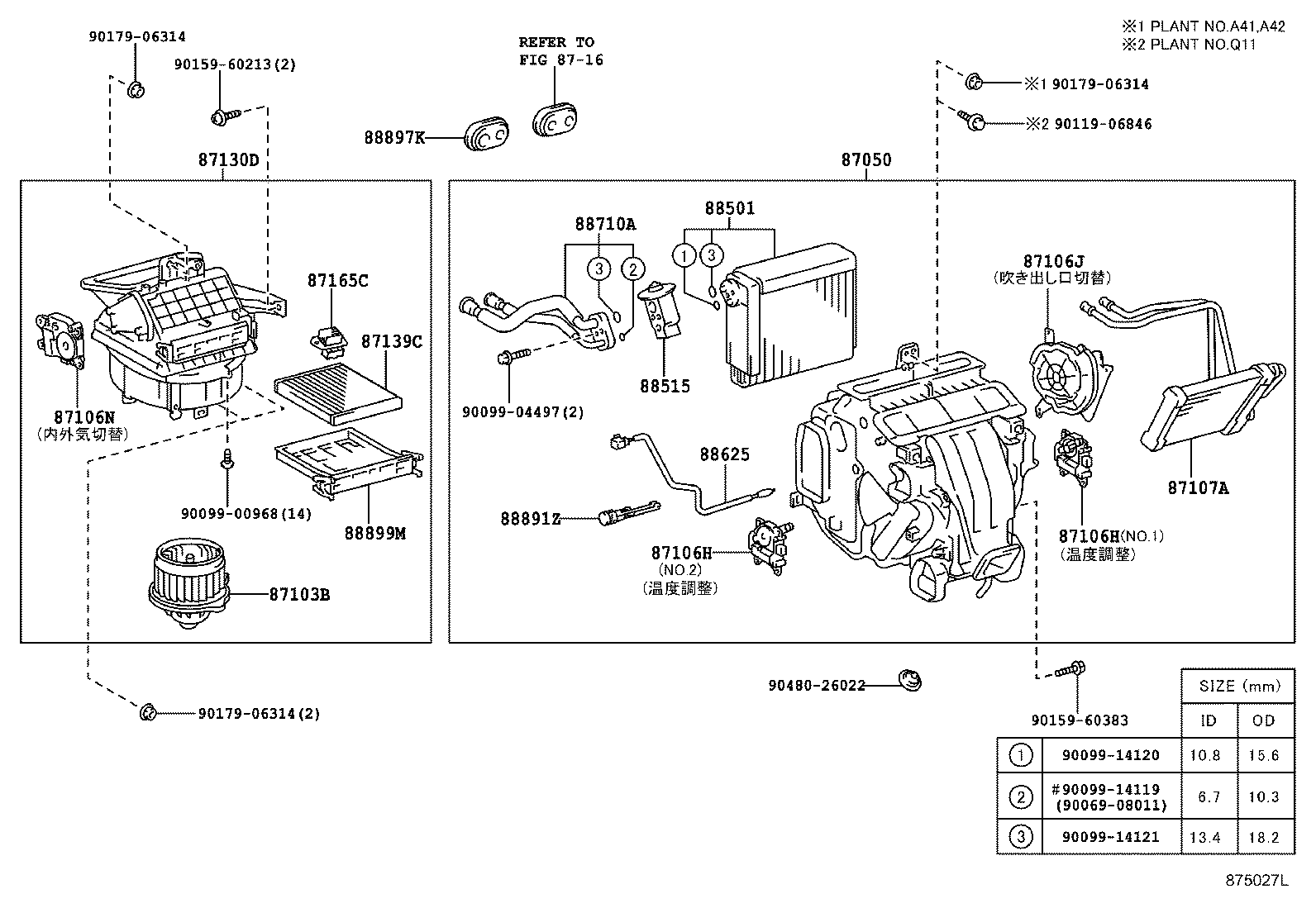

Exploded illustration 875027L 8716 — not listed in this catalogue 9009914120 — not listed in this catalogue 9009914121 — not listed in this catalogue 9009914119 — not listed in this catalogue 88710A — TUBE ASSY, AIR CONDITIONER (2 parts) 88501 — EVAPORATOR SUB-ASSY, COOLER, NO.1 (3 parts) 9015960383 — not listed in this catalogue 9017906314 — not listed in this catalogue 9011906846 — not listed in this catalogue 9017906314 — not listed in this catalogue 88897K — GROMMET, (FOR COOLER PIPE) (2 parts) 9015960213 — not listed in this catalogue 9048026022 — not listed in this catalogue 9017906314 — not listed in this catalogue 87130D — BLOWER ASSY (2 parts) 87165C — CONTROL, BLOWER MOTOR (2 parts) 87106N — SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) (2 parts) 87139C — FILTER, CLEAN AIR (4 parts) 87103B — MOTOR SUB-ASSY, BLOWER W/FAN (2 parts) 88899M — PLATE, COVER(FOR AIR FILTER) (2 parts) 87050 — RADIATOR ASSY, AIR CONDITIONER (5 parts) 88625 — THERMISTOR, COOLER, NO.1 (3 parts) 88515 — VALVE, COOLER EXPANSION (3 parts) 87106H — SERVO SUB-ASSY, DAMPER(FOR AIRMIX) (4 parts) 87106H — SERVO SUB-ASSY, DAMPER(FOR AIRMIX) (4 parts) 87106J — SERVO SUB-ASSY, DAMPER(FOR MODE) (2 parts) 87107A — UNIT SUB-ASSY, HEATER RADIATOR (4 parts) 9009900968 — not listed in this catalogue 9009904497 — not listed in this catalogue 88891Z — BRACKET, COOLER THERMISTOR (2 parts)
875027L · 17 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
87050 — Radiator Assy, Air Conditioner
87050-33560 Radiator Assy, Air Conditioner
2001-07 → 2002-07 ended
MCV30 ¥124,000
87050-33561 Radiator Assy, Air Conditioner
2002-07 → 2002-09 ended
MCV30 ¥124,000
87050-33562 Radiator Assy, Air Conditioner
2002-09 → 2004-06 ended
MCV30 ¥125,000
87050-33562 Radiator Assy, Air Conditioner
2004-06 → 2004-07 ended
MCV30 ¥125,000
87050-33563 Radiator Assy, Air Conditioner
2004-08 → 2006-03 ended
MCV30 ¥125,000
87103B — Motor Sub-assy, Blower W/Fan
87103-33071 Motor Sub-assy, Blower W/Fan
2001-07 → 2004-06 ended
MCV30 —
87103-33071 Motor Sub-assy, Blower W/Fan
2004-06 → 2006-03 ended
MCV30 —
87106H — Servo Sub-assy, Damper(FOR AIRMIX)
87106-41041 note Servo Sub-assy, Damper(FOR AIRMIX)
2001-07 → 2004-06 ended
MCV30 —
87106-41051 note Servo Sub-assy, Damper(FOR AIRMIX)
2001-07 → 2004-06 ended
MCV30 —
87106-41041 note Servo Sub-assy, Damper(FOR AIRMIX)
2004-06 → 2006-03 ended
MCV30 —
87106-41051 note Servo Sub-assy, Damper(FOR AIRMIX)
2004-06 → 2006-03 ended
MCV30 —
87106J — Servo Sub-assy, Damper(FOR MODE)
87106-33230 Servo Sub-assy, Damper(FOR MODE)
2001-07 → 2004-06 ended
MCV30 —
87106-33230 Servo Sub-assy, Damper(FOR MODE)
2004-06 → 2006-03 ended
MCV30 —
87106N — Servo Sub-assy, Damper(FOR RECIRCULATION)
87106-33200 Servo Sub-assy, Damper(FOR RECIRCULATION)
2001-07 → 2004-06 ended
MCV30 —
87106-33200 Servo Sub-assy, Damper(FOR RECIRCULATION)
2004-06 → 2006-03 ended
MCV30 —
87107A — Unit Sub-assy, Heater Radiator
87107-33090 Unit Sub-assy, Heater Radiator
2001-07 → 2002-07 ended
MCV30 —
87107-33110 Unit Sub-assy, Heater Radiator
2002-07 → 2003-12 ended
MCV30 —
87107-33111 Unit Sub-assy, Heater Radiator
2003-12 → 2004-06 ended
MCV30 —
87107-33111 Unit Sub-assy, Heater Radiator
2004-06 → 2006-03 ended
MCV30 —
87130D — Blower Assy
87130-33180 Blower Assy
2001-07 → 2004-06 ended
MCV30 —
87130-33180 Blower Assy
2004-06 → 2006-03 ended
MCV30 —
87139C — Filter, Clean Air
87139-33010 note Filter, Clean Air
2001-07 → 2004-06 ended
MCV30 ¥4,800
87139-47020 note Filter, Clean Air
2001-07 → 2004-06 ended
MCV30 ¥4,000
87139-33010 note Filter, Clean Air
2004-06 → 2006-03 ended
MCV30 ¥4,800
87139-47020 note Filter, Clean Air
2004-06 → 2006-03 ended
MCV30 ¥4,000
87165C — Control, Blower Motor
87165-13010 Control, Blower Motor
2001-07 → 2004-06 ended
MCV30 —
87165-13010 Control, Blower Motor
2004-06 → 2006-03 ended
MCV30 —
88501 — Evaporator Sub-assy, Cooler, NO.1
88501-33100 Evaporator Sub-assy, Cooler, NO.1
2001-07 → 2004-06 ended
MCV30 —
88501-33100 Evaporator Sub-assy, Cooler, NO.1
2004-06 → 2004-07 ended
MCV30 —
88501-33101 Evaporator Sub-assy, Cooler, NO.1
2004-08 → 2006-03 ended
MCV30 —
88515 — Valve, Cooler Expansion
88515-28160 Valve, Cooler Expansion
2003-12 → 2004-06 ended
MCV30 ¥10,200
88515-48040 Valve, Cooler Expansion
2001-07 → 2003-12 ended
MCV30 ¥10,200
88515-28160 Valve, Cooler Expansion
2004-06 → 2006-03 ended
MCV30 ¥10,200
88625 — Thermistor, Cooler, NO.1
88625-17130 Thermistor, Cooler, NO.1
2001-07 → 2002-09 ended
MCV30 —
88625-33170 Thermistor, Cooler, NO.1
2002-09 → 2004-06 ended
MCV30 —
88625-33170 Thermistor, Cooler, NO.1
2004-06 → 2006-03 ended
MCV30 —
88710A — Tube Assy, Air Conditioner
88710-33290 Tube Assy, Air Conditioner
2001-07 → 2004-06 ended
MCV30 ¥10,100
88710-33290 Tube Assy, Air Conditioner
2004-06 → 2006-03 ended
MCV30 ¥10,100
88891Z — Bracket, Cooler Thermistor
88891-50060 Bracket, Cooler Thermistor
2002-06 → 2004-06 ended
MCV30 —
88891-50060 Bracket, Cooler Thermistor
2004-06 → 2006-03 ended
MCV30 —
88897K — Grommet, (FOR COOLER PIPE)
88897-33020 Grommet, (FOR COOLER PIPE)
2001-07 → 2004-06 ended
MCV30 —
88897-33020 Grommet, (FOR COOLER PIPE)
2004-06 → 2006-03 ended
MCV30 —
88899M — Plate, Cover(FOR AIR FILTER)
88899-41010 Plate, Cover(FOR AIR FILTER)
2001-07 → 2004-06 ended
MCV30 —
88899-41010 Plate, Cover(FOR AIR FILTER)
2004-06 → —
MCV30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
