Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

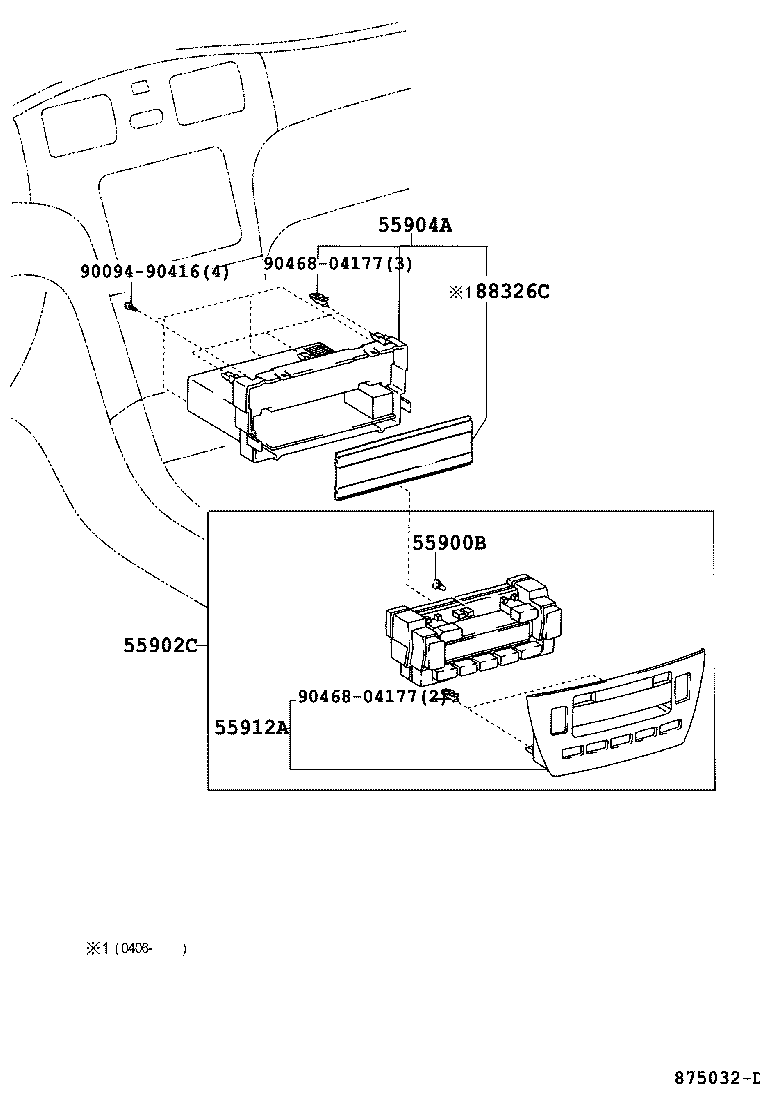

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55900B — Bulb, Air Conditioner Control | ||||
| 90010-03048 note |
Bulb, Air Conditioner Control
2004-06 → —
|
MCV30 | ¥0 | |
| 90010-03048 note |
Bulb, Air Conditioner Control
2001-07 → 2004-06
ended
|
MCV30 | ¥0 | |
| 90010-03049 note |
Bulb, Air Conditioner Control
2001-07 → 2004-06
ended
|
MCV30 | ¥0 | |
| 90010-03049 note |
Bulb, Air Conditioner Control
2004-06 → —
|
MCV30 | ¥0 | |
| 55902C — Panel Sub-assy, Air Conditioner | ||||
| 55902-33430 note |
Panel Sub-assy, Air Conditioner
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 55902-33440 |
Panel Sub-assy, Air Conditioner
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 55902-33750 note |
Panel Sub-assy, Air Conditioner
2004-06 → —
|
MCV30 | — | |
| 55902-33760 |
Panel Sub-assy, Air Conditioner
2004-06 → —
|
MCV30 | — | |
| 55904A — Housing Sub-assy, Heater Control | ||||
| 55904-33060 note |
Housing Sub-assy, Heater Control
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 55904-33070 |
Housing Sub-assy, Heater Control
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 55904-33070 |
Housing Sub-assy, Heater Control
2004-06 → —
|
MCV30 | — | |
| 55904-33230 note |
Housing Sub-assy, Heater Control
2004-06 → —
|
MCV30 | — | |
| 55912A — Housing, Heater Control | ||||
| 55912-33040 note |
Housing, Heater Control
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 55912-33050 |
Housing, Heater Control
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 55912-33410 note |
Housing, Heater Control
2004-06 → —
|
MCV30 | — | |
| 55912-33420 |
Housing, Heater Control
2004-06 → —
|
MCV30 | — | |
| 88326C — Plate, Cover | ||||
| 88326-26010 |
Plate, Cover
2004-06 → —
|
MCV30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
