Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

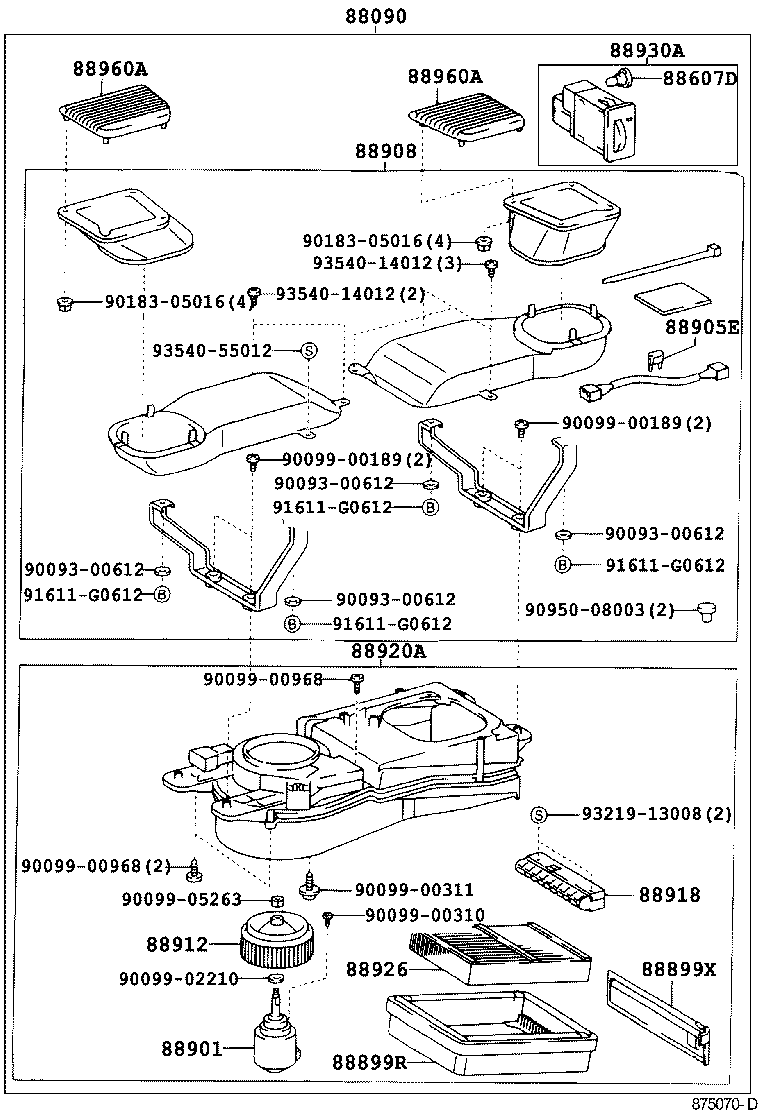

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88090 — Air Purifier & Accessory Assy | ||||
| 88090-33070-A1 note |
Air Purifier & Accessory Assy
2001-07 → 2004-06
ended
|
MCV30 | ¥41,000 | |
| 88090-33070-A1 note |
Air Purifier & Accessory Assy
2004-06 → 2006-03
ended
|
MCV30 | ¥41,000 | |
| 88090-33070-C0 note |
Air Purifier & Accessory Assy
2001-07 → 2004-06
ended
|
MCV30 | ¥41,000 | |
| 88090-33070-C0 note |
Air Purifier & Accessory Assy
2004-06 → 2006-03
ended
|
MCV30 | ¥41,000 | |
| 88607D — Lamp Sub-assy, Air Purifier Switch | ||||
| 90010-03005 note |
Lamp Sub-assy, Air Purifier Switch
2001-07 → 2004-06
ended
|
MCV30 | ¥0 | |
| 90010-03005 note |
Lamp Sub-assy, Air Purifier Switch
2004-06 → —
|
MCV30 | ¥0 | |
| 88899R — Frame, Air Purifier | ||||
| 88899-22350 |
Frame, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88899-22350 |
Frame, Air Purifier
2004-06 → —
|
MCV30 | — | |
| 88899X — Plate, Air Purifier Cover | ||||
| 88899-22370 |
Plate, Air Purifier Cover
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88899-22370 |
Plate, Air Purifier Cover
2004-06 → —
|
MCV30 | — | |
| 88901 — Motor Sub-assy, Air Purifier | ||||
| 88901-22340 |
Motor Sub-assy, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | ¥17,900 | |
| 88901-22340 |
Motor Sub-assy, Air Purifier
2004-06 → —
|
MCV30 | ¥17,900 | |
| 88905E — Fuse, Air Purifier Wire | ||||
| 90096-80012 |
Fuse, Air Purifier Wire
2001-07 → 2004-06
ended
|
MCV30 | ¥0 | |
| 90096-80012 |
Fuse, Air Purifier Wire
2004-06 → —
|
MCV30 | ¥0 | |
| 88908 — Accessory Sub-assy, Air Purifier, NO.2 | ||||
| 88908-33070 |
Accessory Sub-assy, Air Purifier, NO.2
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88908-33070 |
Accessory Sub-assy, Air Purifier, NO.2
2004-06 → —
|
MCV30 | — | |
| 88912 — Fan, Air Purifier | ||||
| 88912-22390 |
Fan, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88912-22390 |
Fan, Air Purifier
2004-06 → —
|
MCV30 | — | |
| 88918 — Lamp, Air Purifier | ||||
| 88918-22390 |
Lamp, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88918-22390 |
Lamp, Air Purifier
2004-06 → —
|
MCV30 | — | |
| 88920A — Purifier Assy, Air | ||||
| 88920-33080 |
Purifier Assy, Air
2001-07 → 2004-06
ended
|
MCV30 | ¥72,300 | |
| 88920-33080 |
Purifier Assy, Air
2004-06 → —
|
MCV30 | ¥72,300 | |
| 88926 — Filter, Air Purifier | ||||
| 88926-22360 |
Filter, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | ¥5,800 | |
| 88926-22360 |
Filter, Air Purifier
2004-06 → —
|
MCV30 | ¥5,800 | |
| 88930A — Switch Assy, Air Purifier | ||||
| 88930-22390 |
Switch Assy, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88930-22390 |
Switch Assy, Air Purifier
2004-06 → —
|
MCV30 | — | |
| 88960A — Grille Assy, Air Purifier | ||||
| 88960-20240-A0 note |
Grille Assy, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88960-20240-C0 note |
Grille Assy, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88960-20250-A0 note |
Grille Assy, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88960-20250-C0 note |
Grille Assy, Air Purifier
2001-07 → 2004-06
ended
|
MCV30 | — | |
| 88960-20240-A0 note |
Grille Assy, Air Purifier
2004-06 → —
|
MCV30 | — | |
| 88960-20240-C0 note |
Grille Assy, Air Purifier
2004-06 → —
|
MCV30 | — | |
| 88960-20250-A0 note |
Grille Assy, Air Purifier
2004-06 → —
|
MCV30 | — | |
| 88960-20250-C0 note |
Grille Assy, Air Purifier
2004-06 → —
|
MCV30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
