Toyota Lexus ES300H

2018-10 → present · chassis AXZH1# · catalogue 2821A0 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

4 part groups · 2 illustrations

Illustrations

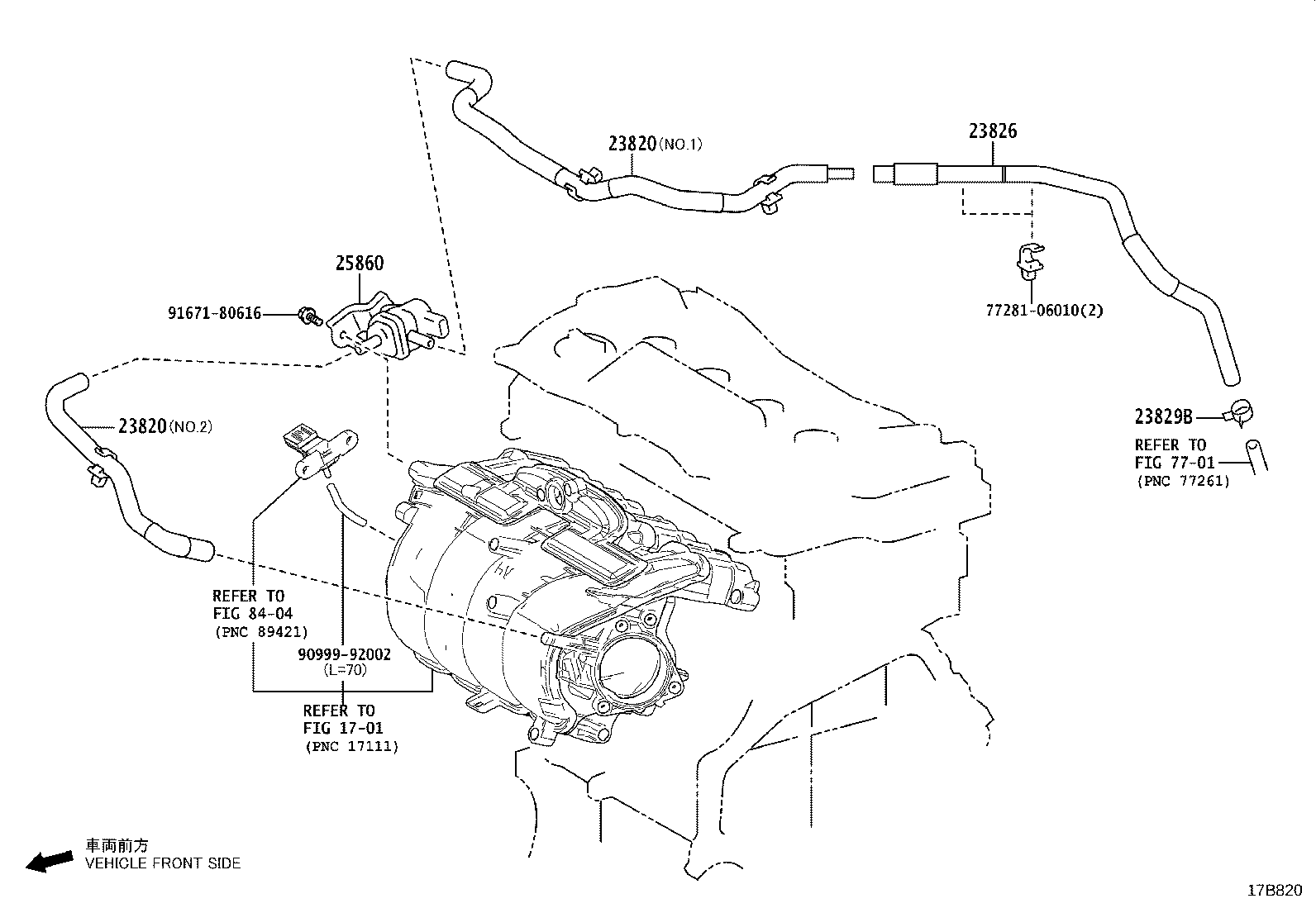

Figure 17A318 17A318 2018-10 → 2021-08 Figure 17B820 17B820 2021-08 → —

Part groups

PNCDescription
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
