Toyota Lexus ES300H

2018-10 → present · chassis AXZH1# · catalogue 2821A0 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

26 part groups · 3 illustrations

Illustrations

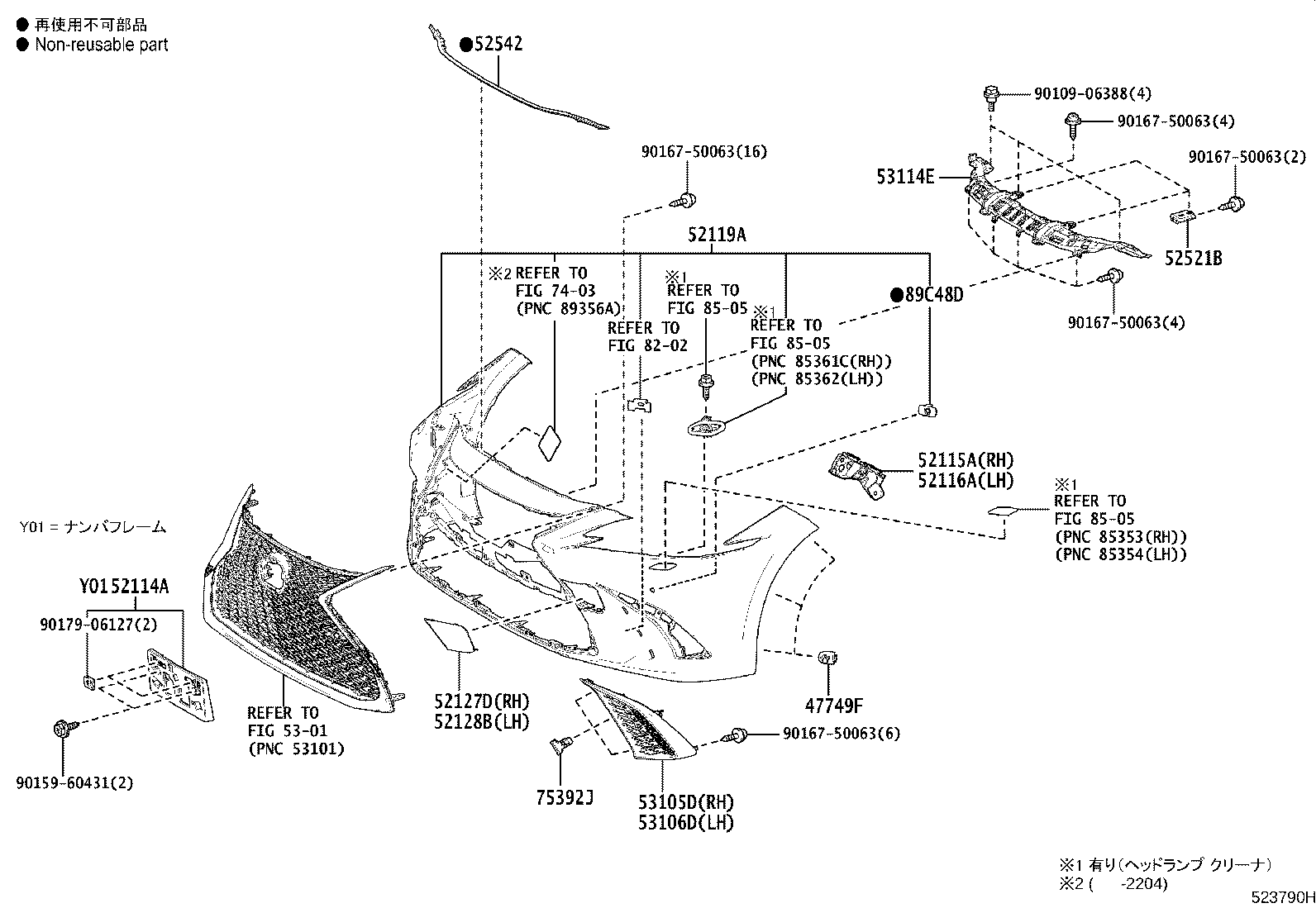

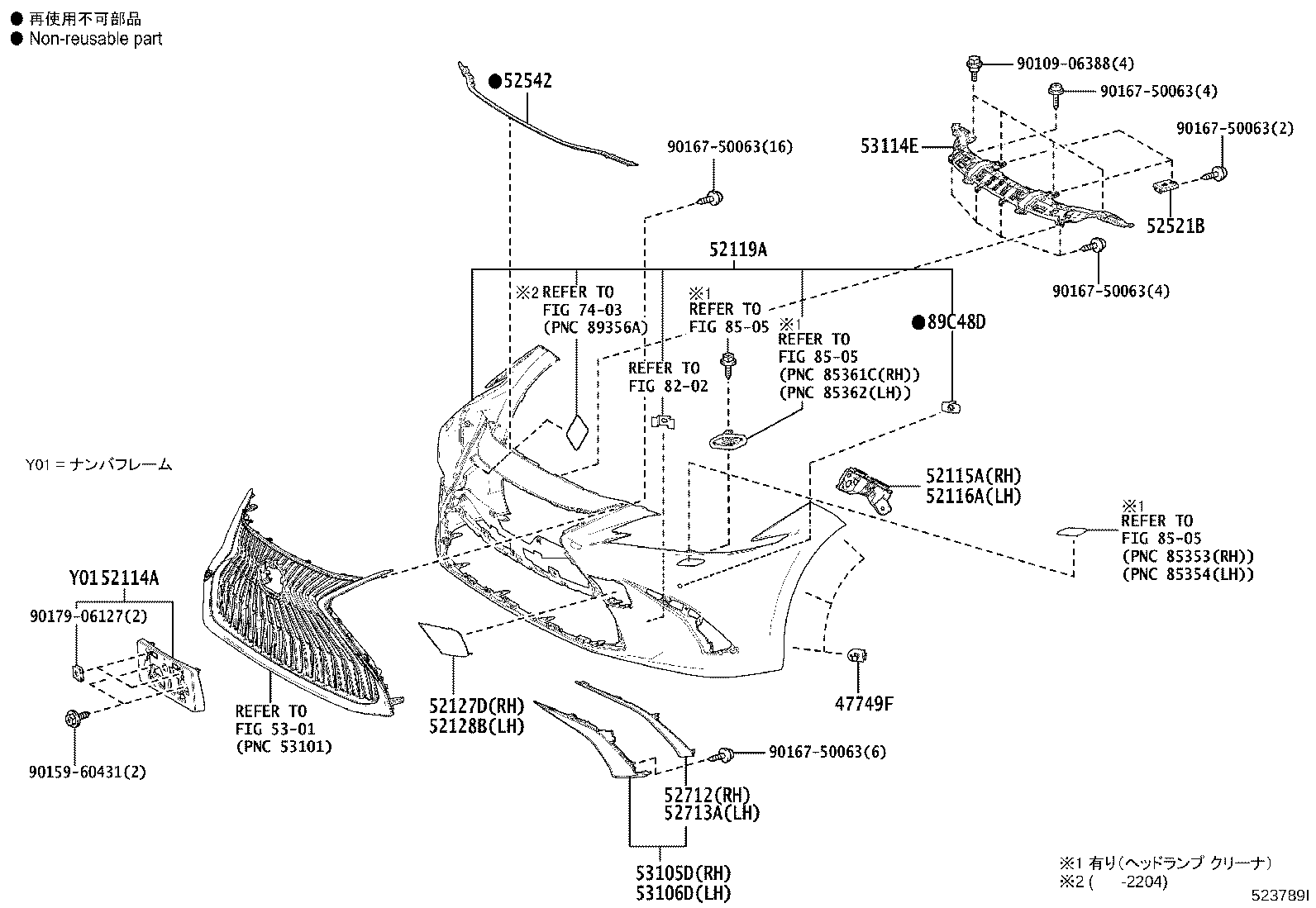

Figure 523788G 523788G 2018-10 → — Figure 523789I 523789I 2018-10 → — Figure 523790H 523790H 2018-10 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451C Grommet(FOR ENGINE UNDER COVER)
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52145C Bracket, Front Bumper Side Mounting, RH
52146B Bracket, Front Bumper Side Mounting, LH
52148H Bracket, Front Bumper Mounting, NO.2
52521B Retainer, Front Bumper, Upper
52542 Seal, Front Bumper, Center
52611 Absorber, Front Bumper Energy
52611B Clip, Front Bumper Energy Absorber
52618 Absorber, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53105D Garnish Sub-assy, Radiator Grille, RH
53106D Garnish Sub-assy, Radiator Grille, LH
53114E Grille, Radiator, Upper
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
