Toyota Lexus ES300H

2018-10 → present · chassis AXZH1# · catalogue 2821A0 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

27 part groups · 2 illustrations

Illustrations

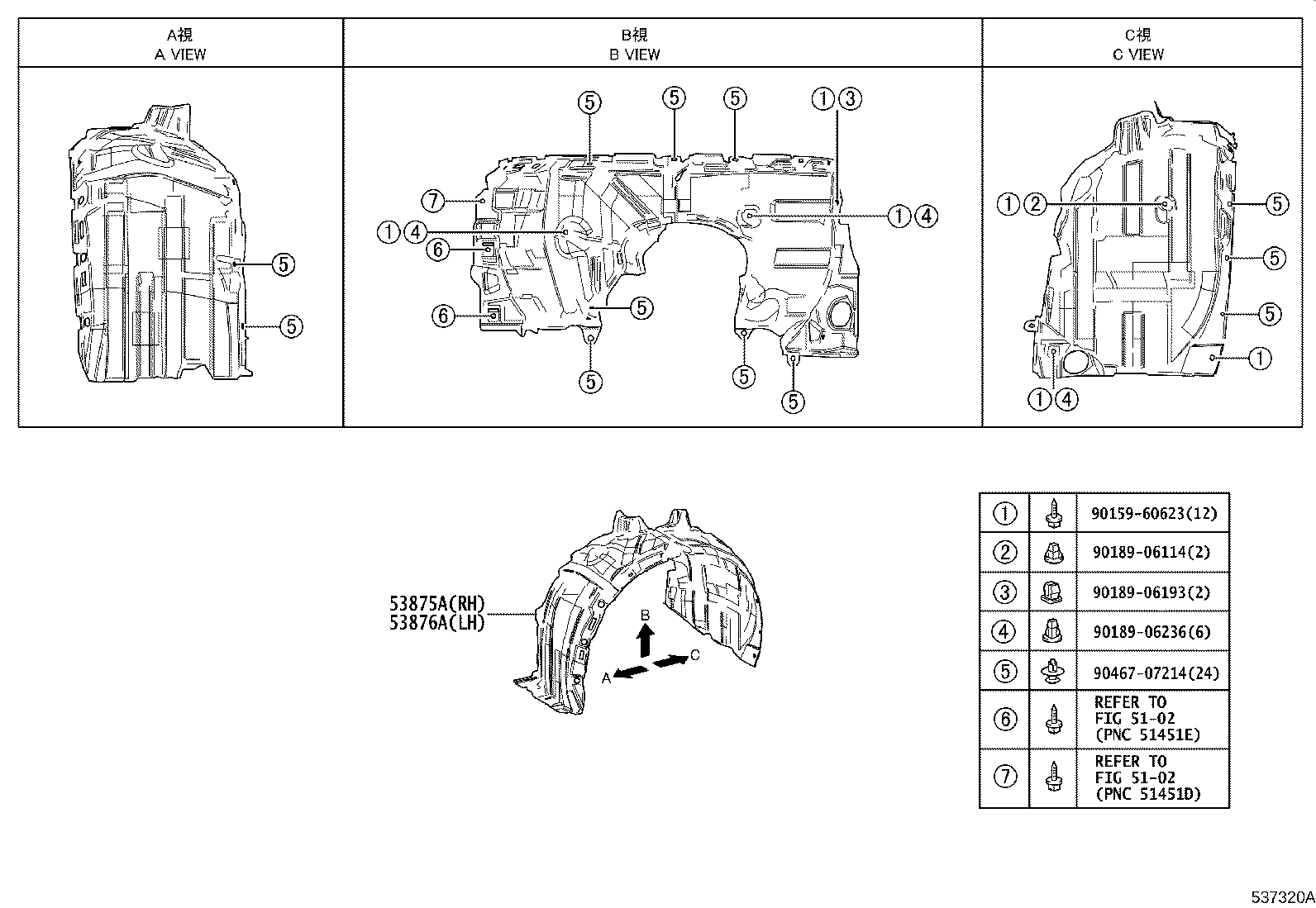

Figure 537319A 537319A 2018-10 → — Figure 537320A 537320A 2018-10 → —

Part groups

PNCDescription
53153B Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53383A Clip(FOR HOOD TO COWL TOP SEAL)
53384B Cushion, Hood, Center
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53393B Protector, Hood, Front
53747C Plate, Air Sealed, RH
53748C Plate, Air Sealed, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805C Seal Sub-assy, Front Pillar TO Front Side, RH
53806C Shield Sub-assy, Fender Splash, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53828P Clip, Front Fender Side Panel Protector, NO.2
53835 Brace, Front Fender TO Extension, RH
53836 Brace, Front Fender TO Extension, LH
53857 Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53866A Clip(FOR FRONT FENDER TO COWL SIDE SEAL)
53867A Retainer, Front Fender
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
