Toyota Lexus ES300H

2018-10 → present · chassis AXZH1# · catalogue 2821A0 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 2 illustrations

Illustrations

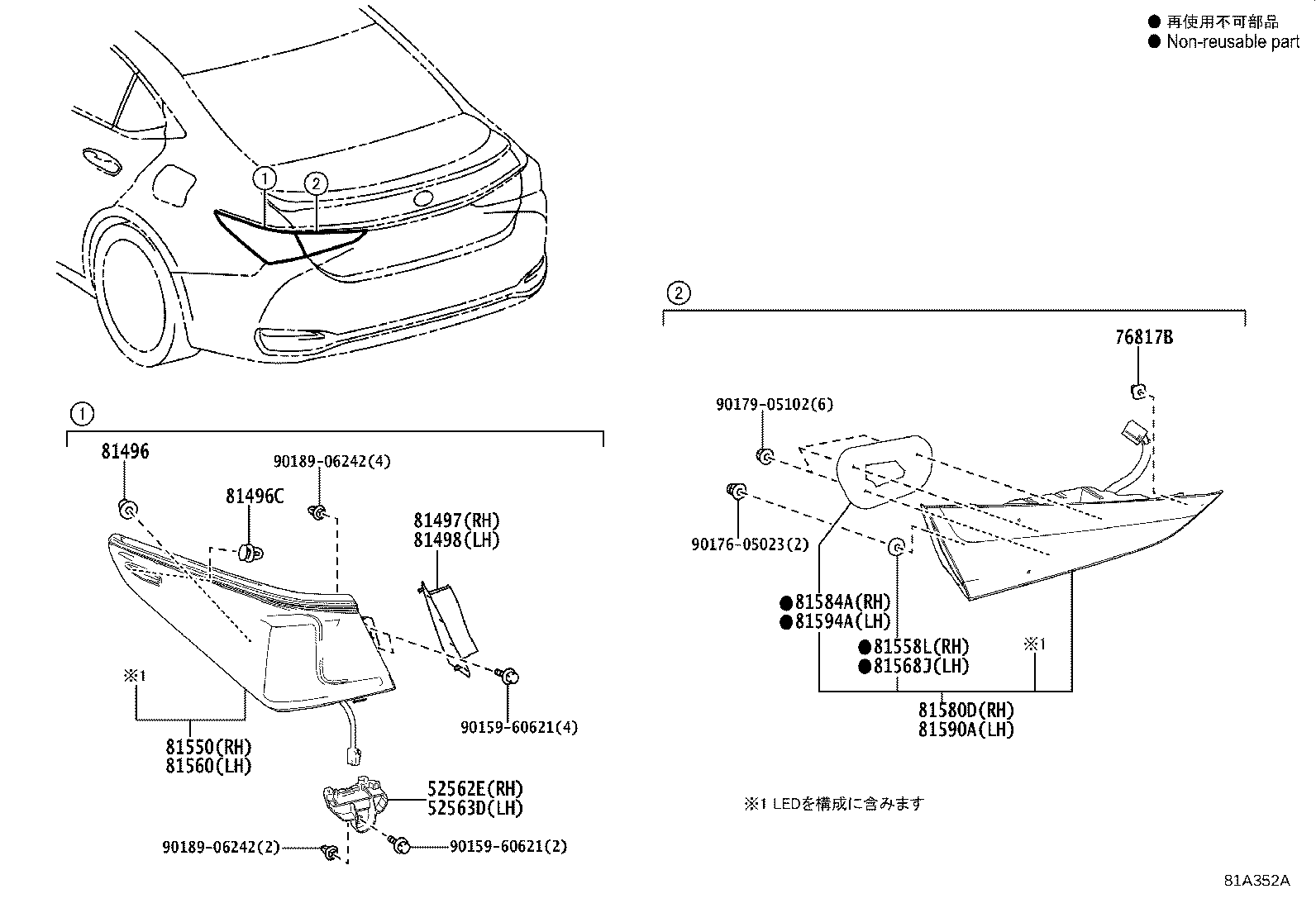

Figure 818610A 818610A 2018-10 → 2021-04 Figure 81A352A 81A352A 2021-04 → —

Part groups

PNCDescription
52562E Retainer, Rear Bumper, Upper RH
52563D Retainer, Rear Bumper, Upper LH
76817B Clip, Rear Lamp
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81550 Lamp Assy, Rear Combination, RH
81551D Lens & Body, Rear Combination Lamp, RH
81558L Protector, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81568J Protector, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81584A Gasket, Rear Lamp RH
81590A Lamp Assy, Rear, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
