Toyota Lexus ES300H
2018-10 → present · chassis AXZH1# · catalogue 2821A0 · Japan
Supported model
Data version 2021-08

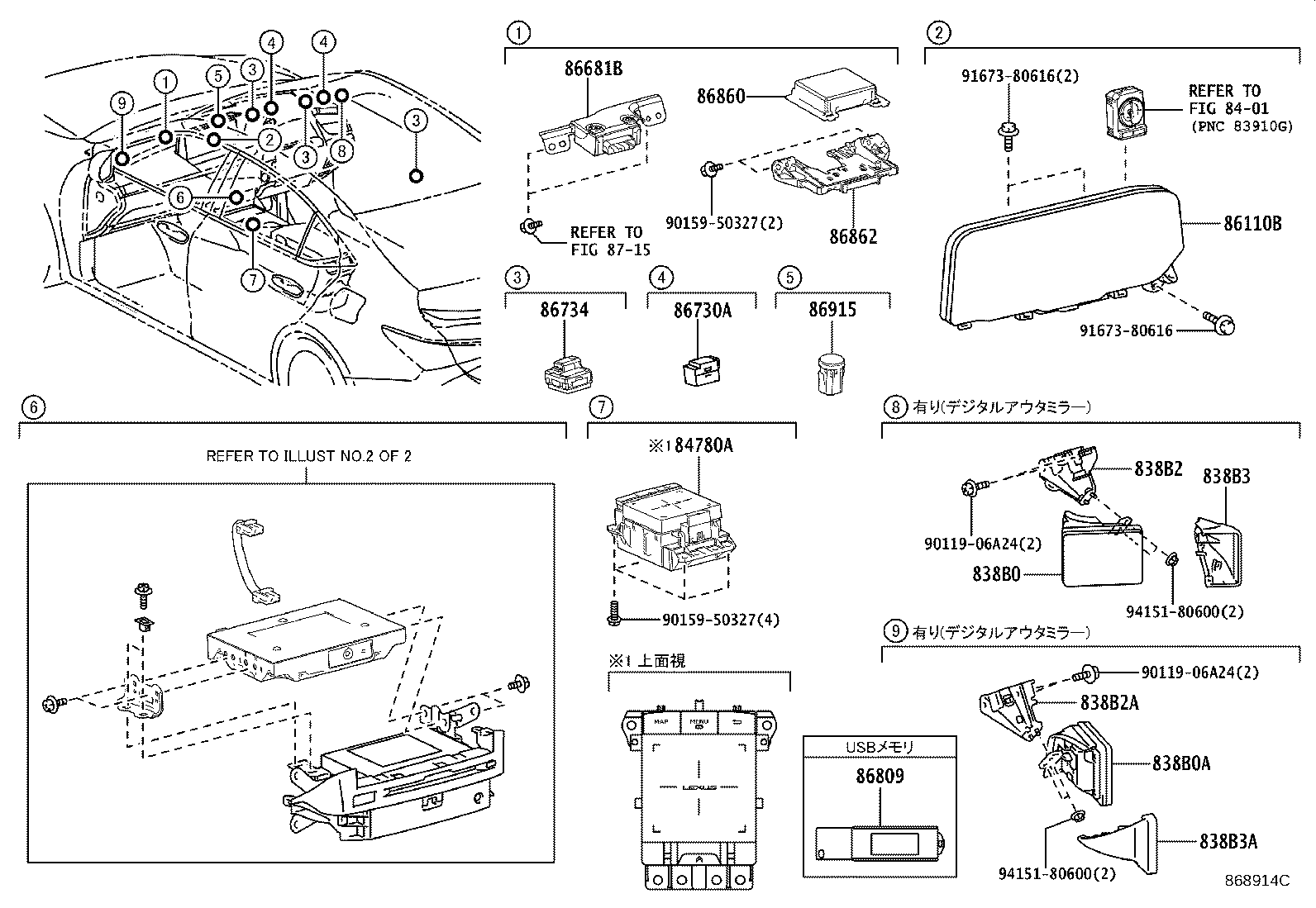

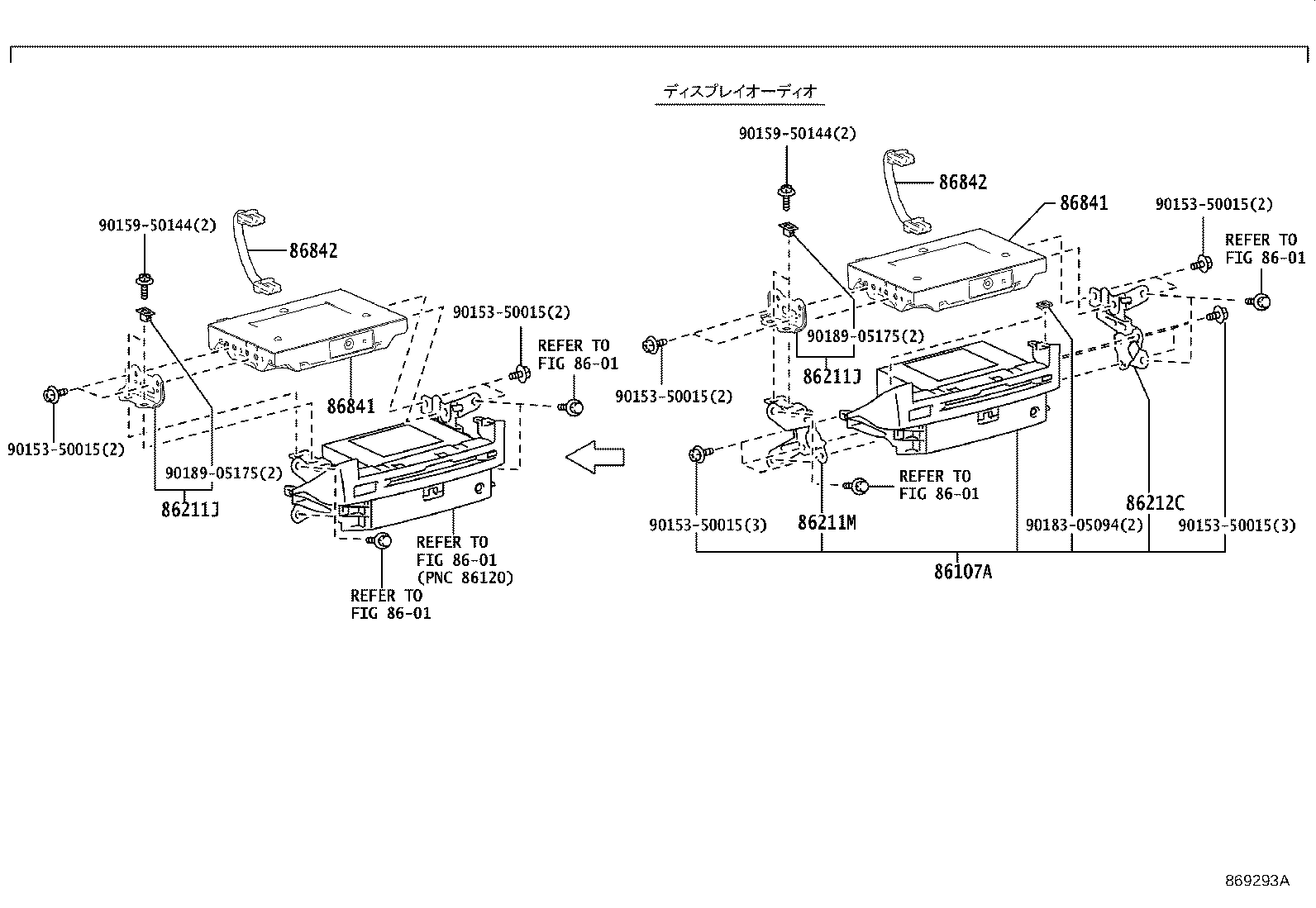

Navigation & Front Monitor Display
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 838B0 | Display Assy, Outer Mirror, RH |
| 838B0A | Display Assy, Outer Mirror, LH |
| 838B2 | Bracket, Outer Mirror Display, RH |
| 838B2A | Bracket, Outer Mirror Display, LH |
| 838B3 | Cover, Outer Mirror Display, RH |
| 838B3A | Cover, Outer Mirror Display, LH |
| 84780A | Controller Assy, Remote Operation |
| 86107A | Receiver Sub-assy, Multi-media Module |
| 86110B | Multi-display Assy |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86211M | Bracket, Radio Receiver, NO.3 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86452 | Panel, Sub-cluster Module, NO.1 |
| 86456 | Cover, Multi-media Module |
| 86681B | Divider, Antenna |
| 86730A | Microphone Assy, Telephone |
| 86734 | Microphone, Active Noise Control |
| 86809 | Usb Set, Usb Memory Navigation Data |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
| 86915 | Transceiver, Optical Beacon |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
