Toyota Lexus ES300H

2018-10 → present · chassis AXZH1# · catalogue 2821A0 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

11 part groups · 2 illustrations

Illustrations

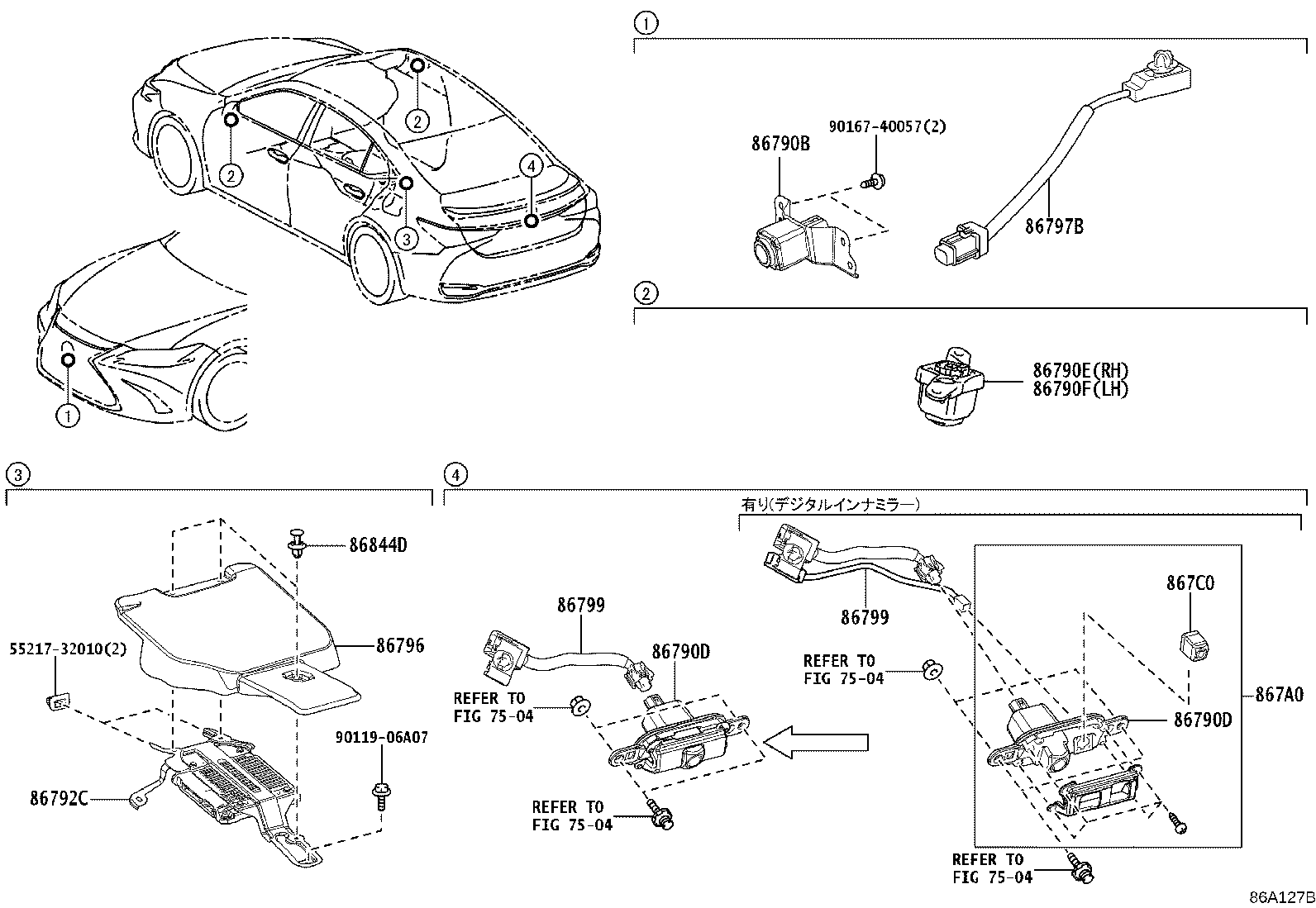

Figure 867286H 867286H 2018-10 → 2022-08 Figure 86A127B 86A127B 2022-08 → —

Part groups

PNCDescription
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
86796 Cover, Computer Parking Assist
86797B Wire, Parking Assist
86799 Wire, Television Camera
867A0 Camera Assy, Television & Inner Rear View Mirror
867C0 Camera Assy, Inner Mirror
86844D Retainer, Navigation Computer Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
