Toyota Scepter (WG,CP)

1992-07 → 1996-07 · chassis SXV15,VCV15 · catalogue 283150 · Japan

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

8 part groups · 2 illustrations

Illustrations

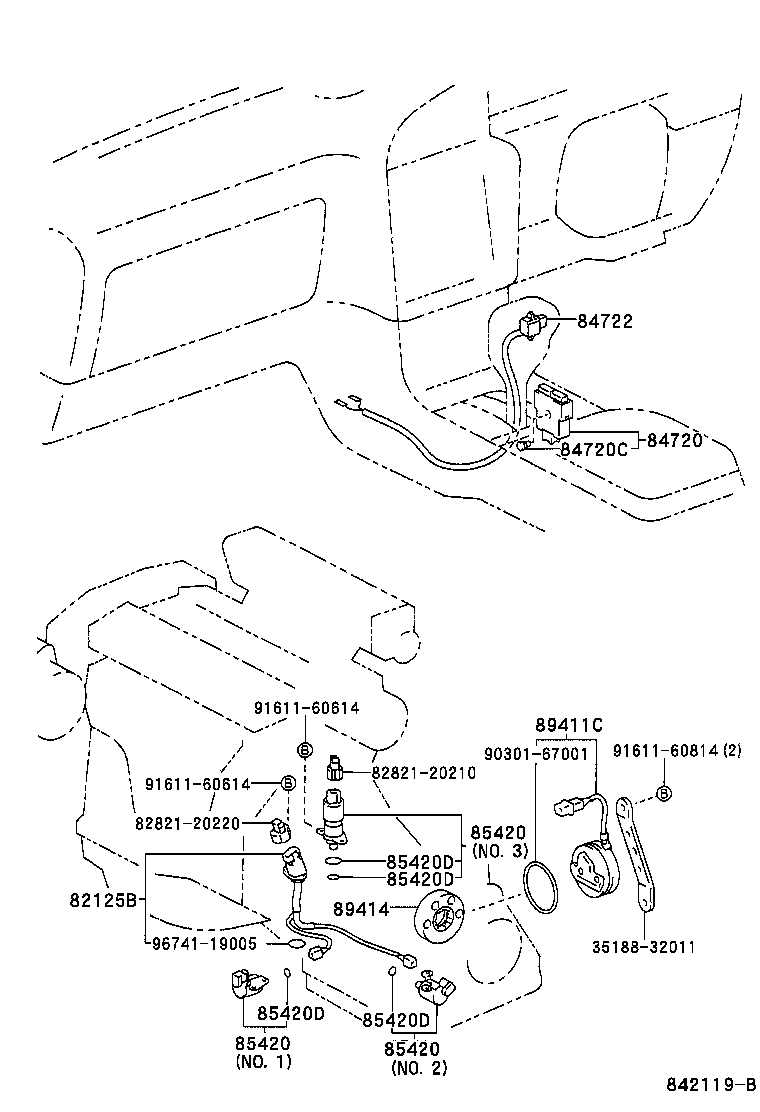

Figure 842118A 842118A 1992-07 → 1996-08 Figure 842119B 842119B 1992-11 → 1996-08

Part groups

PNCDescription
82125B Wire, Transmission
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
