Toyota Scepter (SED)
1992-11 → 1996-08 · chassis SXV10,VCV10 · catalogue 284150 · Japan
Discontinued model
Data version 1997-02

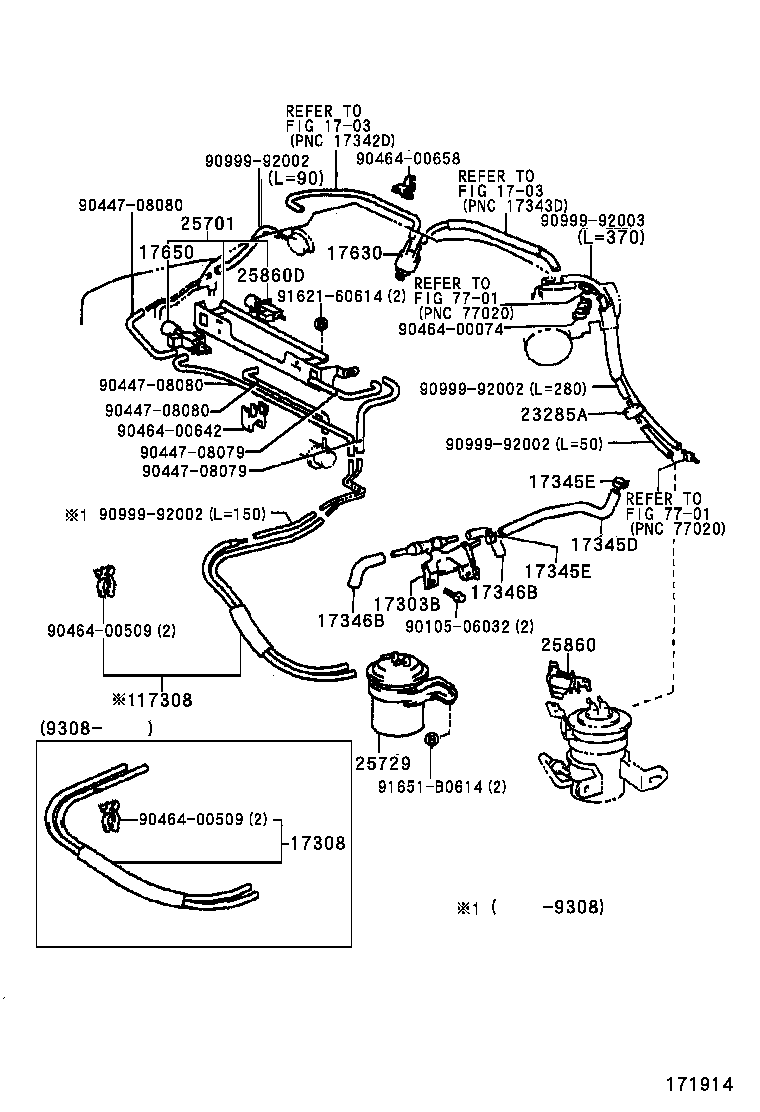

Vacuum Piping
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17344C | Hose, NO.4(FOR IDLE-UP) |
| 17345B | Hose, NO.5(FOR IDLE-UP) |
| 17345D | Hose, Air, NO.5 |
| 17345E | Clamp OR Clip(FOR AIR HOSE, NO.5) |
| 17346B | Hose, Air, NO.6 |
| 17347B | Hose, Air, NO.7 |
| 17361G | Tube, Air(FOR IDLE-UP) |
| 17600A | Valve Assy, Air By-pass W/Hose |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23285A | Valve, Check, NO.1 |
| 25701 | Valve Set, Emission Control |
| 25729 | Tank, Vacuum Surge W/Bracket |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
