Toyota Scepter (SED)

1992-11 → 1996-08 · chassis SXV10,VCV10 · catalogue 284150 · Japan

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

23 part groups · 2 illustrations

Illustrations

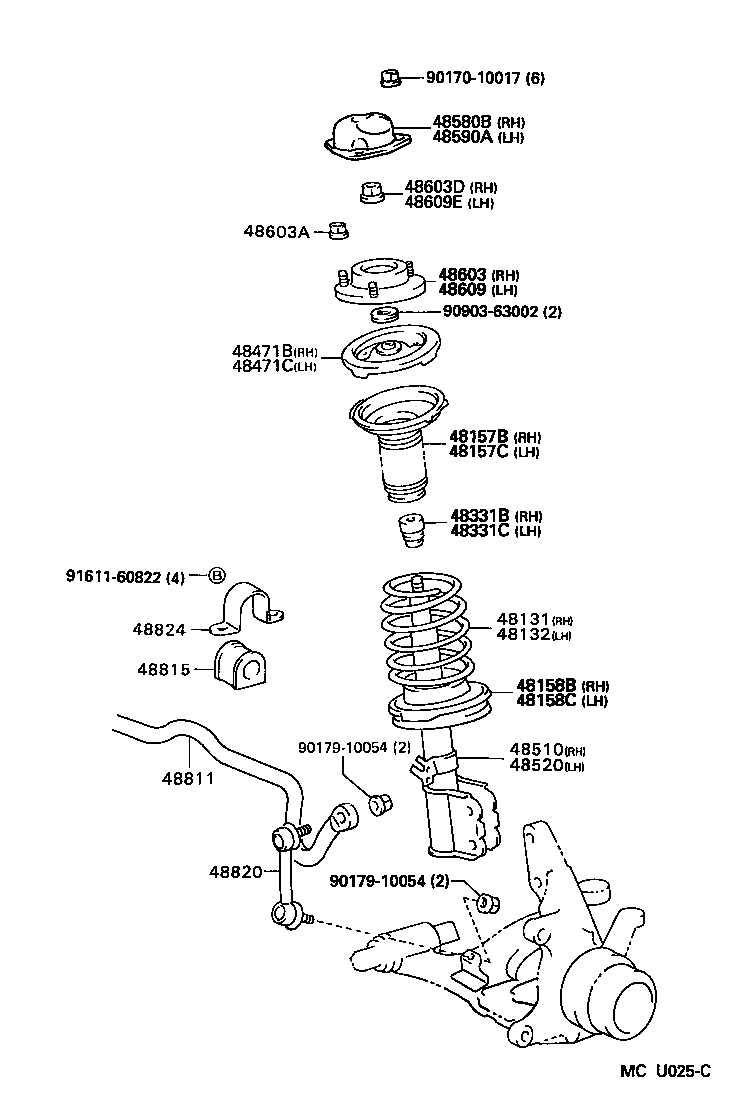

Figure MCU024B MCU024B 1992-07 → 1994-08 Figure MCU025C MCU025C 1994-08 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48471B Seat, Front Coil Spring, Upper RH
48471C Seat, Front Coil Spring, Upper LH
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48580B Cap Assy, Front Shock Absorber, RH
48590A Cap Assy, Front Shock Absorber, LH
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48603D Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609 Support Sub-assy, Front Suspension, LH
48609E Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820 Link Assy, Front Stabilizer
48824 Bracket, Stabilizer, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
