Toyota Scepter (SED)
1992-11 → 1996-08 · chassis SXV10,VCV10 · catalogue 284150 · Japan
Discontinued model
Data version 1997-02

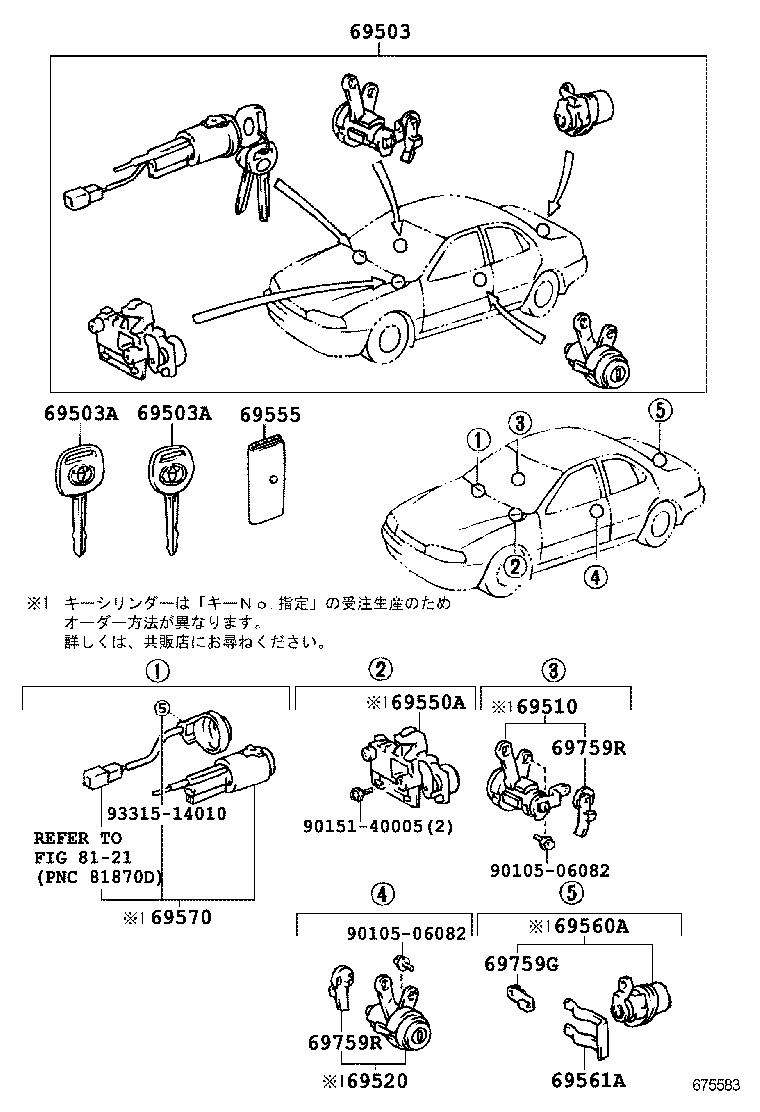

Lock Cylinder Set
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055A | Cylinder & Key Set, Luggage Compartment Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 69555 | Cover, Key |
| 69560A | Cylinder Assy, Luggage Compartment Door Lock |
| 69561A | Retainer, Luggage Compartment Lock Cylinder |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69759G | Snap, Luggage Door Lock Cylinder |
| 69759R | Snap, Front Door Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
