Toyota Scepter (SED)
1992-11 → 1996-08 · chassis SXV10,VCV10 · catalogue 284150 · Japan
Discontinued model
Data version 1997-02

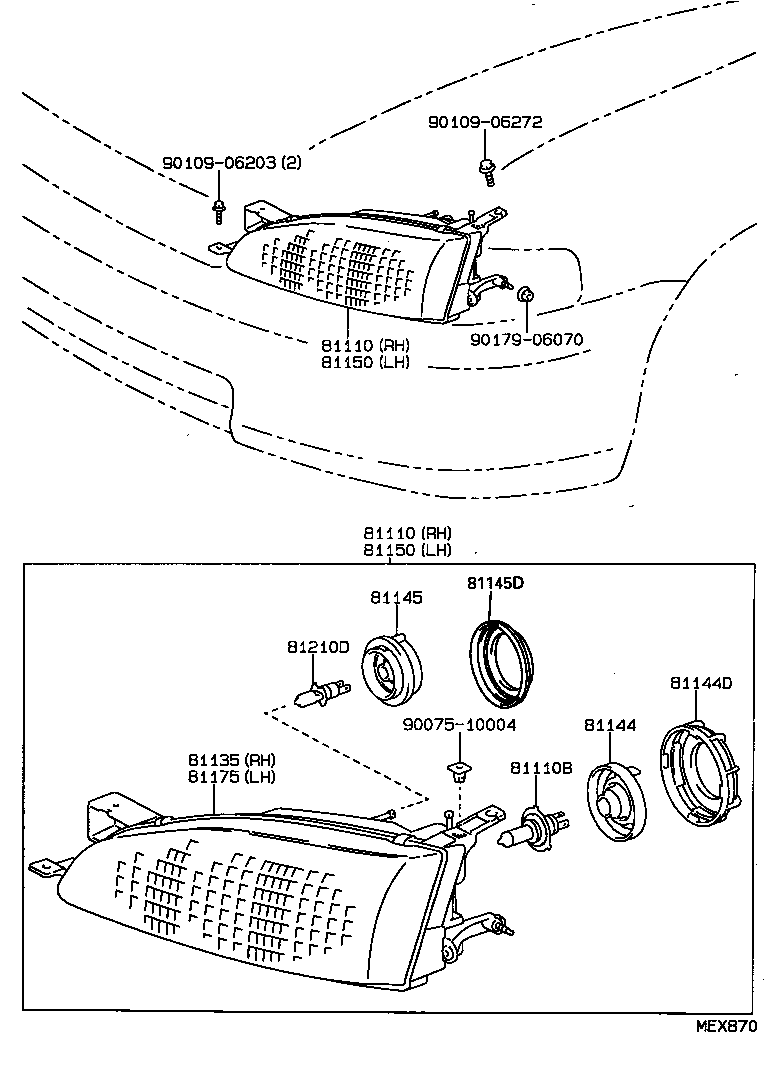

Headlamp
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81144D | Cap, Headlamp Locking |
| 81145 | Cover, Headlamp, NO.2 |
| 81145D | Cap, Headlamp Locking NO.2 |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81210D | Bulb, Fog Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615C | Socket & Wire, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
