Toyota Scepter (SED)

1992-11 → 1996-08 · chassis SXV10,VCV10 · catalogue 284150 · Japan

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

11 part groups · 2 illustrations

Illustrations

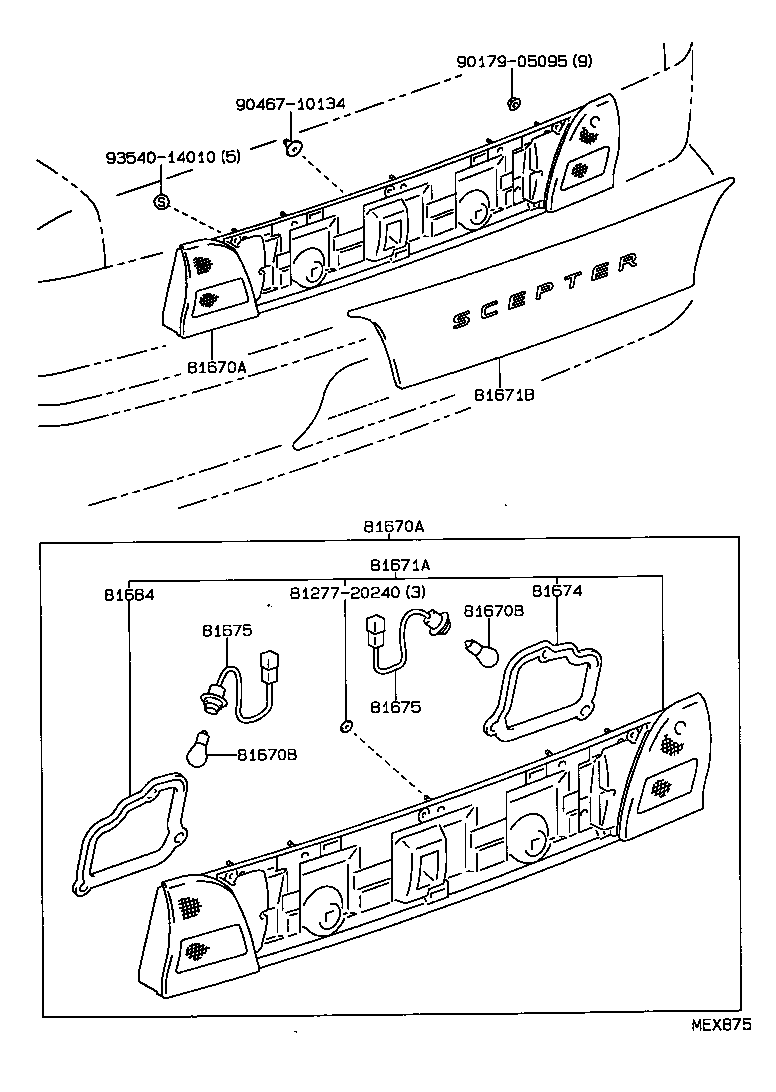

Figure MEU754B MEU754B 1992-11 → 1994-08 Figure MEX875 MEX875 1994-08 → 1996-08

Part groups

PNCDescription
81670A Lamp Assy, Back-up
81670B Bulb(FOR BACK-UP LAMP)
81671A Lens & Body, Back-up Lamp
81671B Garnish, Back-door, Outside
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81676B Bracket, Back-up Lamp
81677B Bracket, Back-up Lamp
81678A Cover, Back UP Lamp, RH
81679A Cover, Back UP Lamp, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
