Toyota Scepter (SED)

1992-11 → 1996-08 · chassis SXV10,VCV10 · catalogue 284150 · Japan

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 2 illustrations

Illustrations

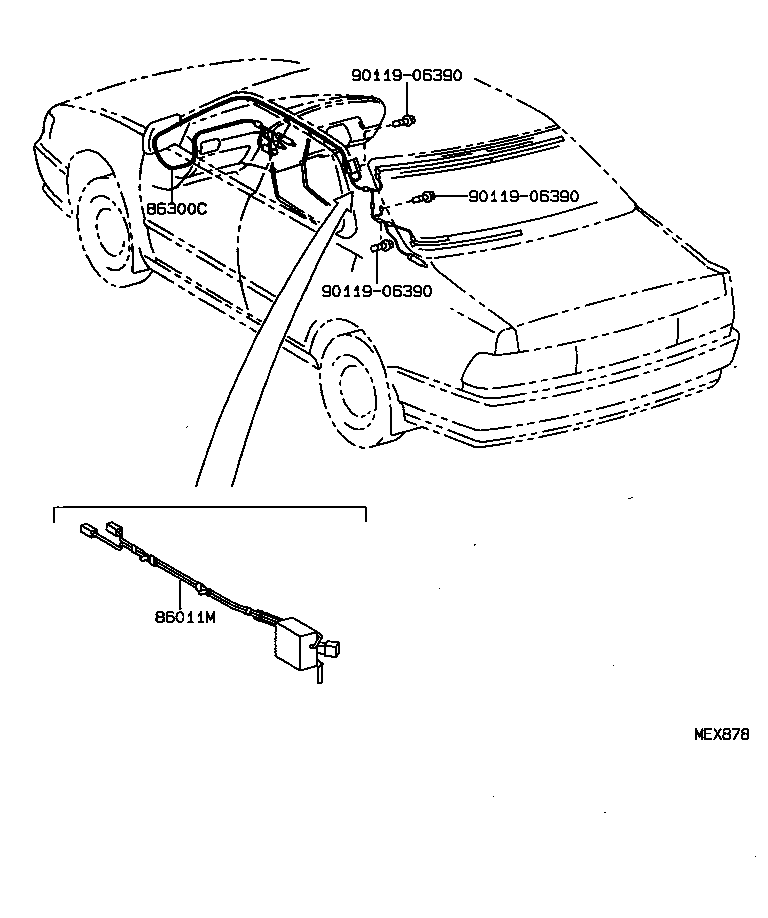

Figure MEU061E MEU061E 1992-11 → 1994-08 Figure MEX878 MEX878 1994-08 → 1996-08

Part groups

PNCDescription
85914 Relay, Motor Antenna Control
86011M Filter, Noise
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
86300C Antenna Assy, Amplifier, NO.2
86337 Rod & Pipe, Sealed W/Cable
86392 Ornament, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
