Toyota Scepter (SED)

1992-11 → 1996-08 · chassis SXV10,VCV10 · catalogue 284150 · Japan

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

17 part groups · 3 illustrations

Illustrations

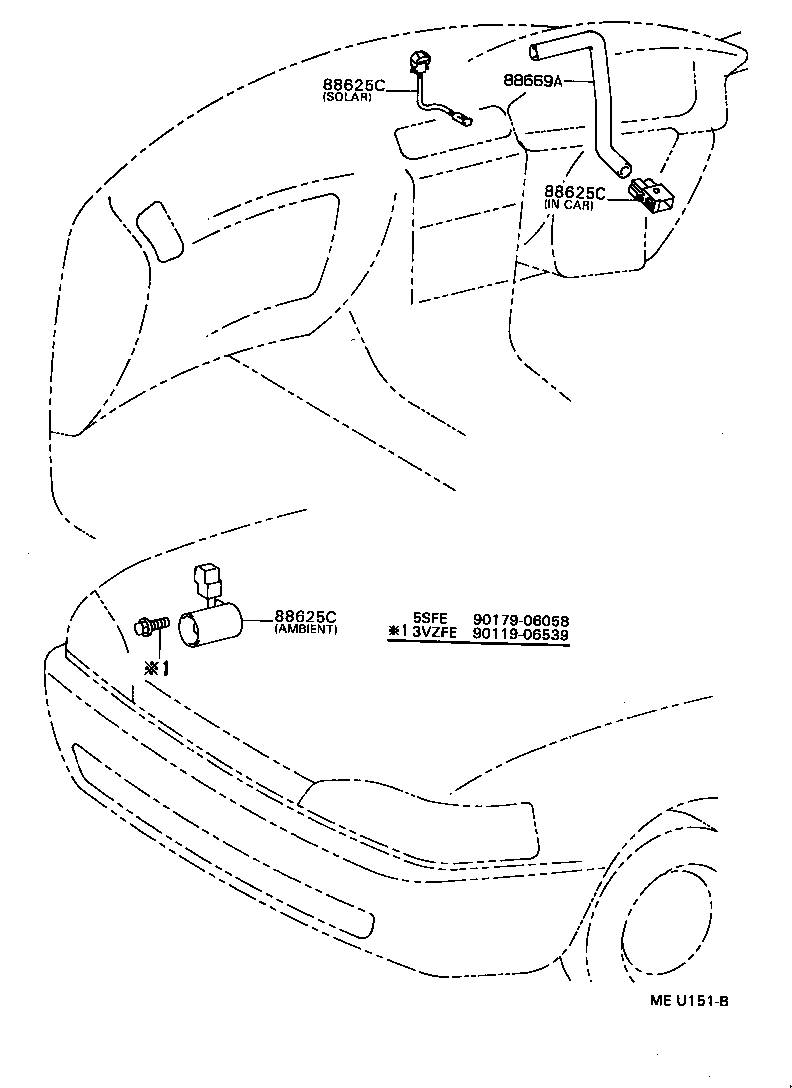

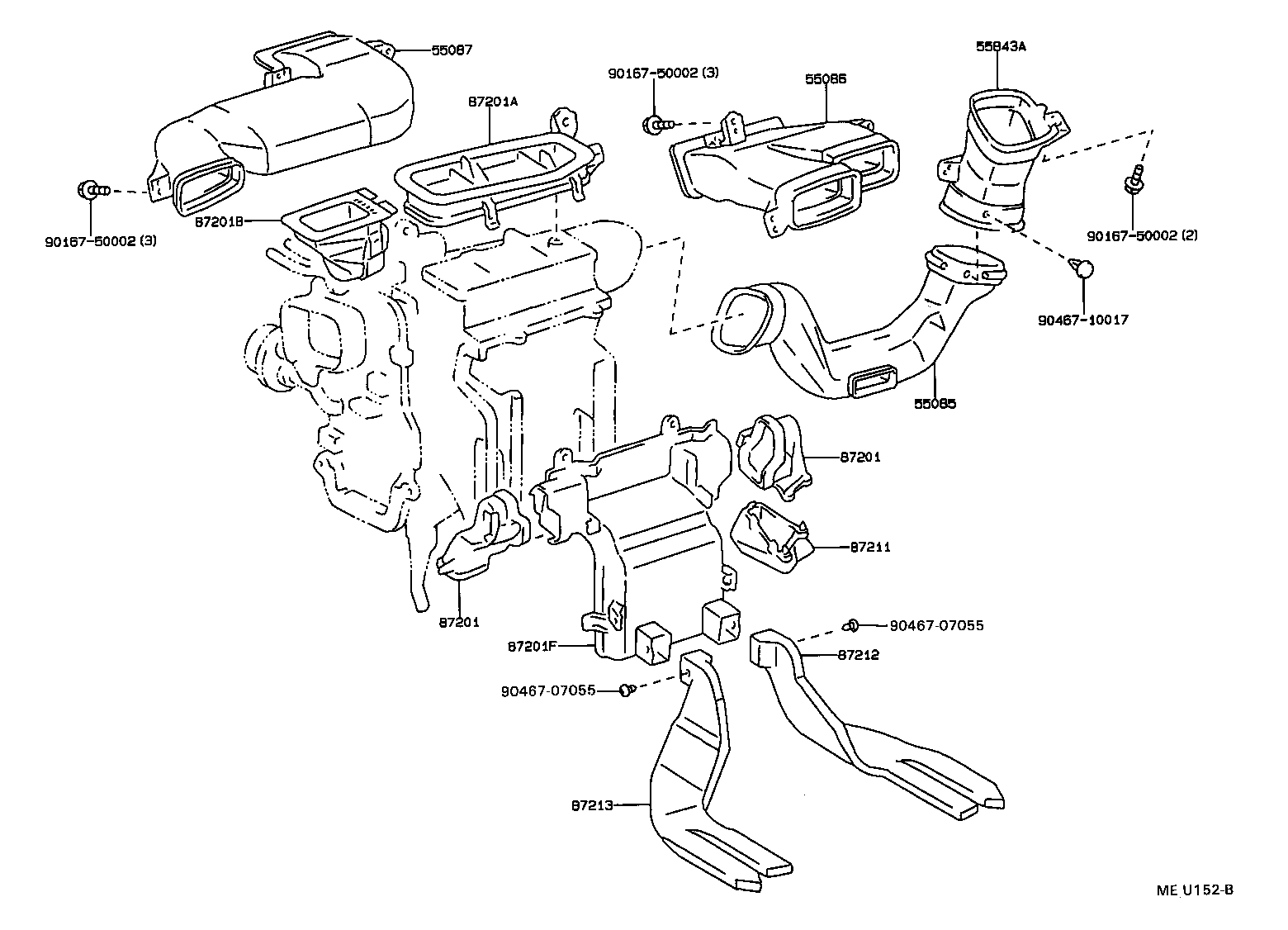

Figure MEU150C MEU150C 1992-07 → 1996-08 Figure MEU152B MEU152B 1992-07 → 1996-08 Figure MEU151B MEU151B 1992-07 → 1996-08

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55843A Duct, Heater TO Register, NO.1
55900B Bulb, Air Conditioner Control
55902B Control Sub-assy, Heater
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
88484 Wire, Cooler, NO.1
88625C Thermistor, Cooler
88650M Computer Assy, Air Conditioner
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
