Toyota Camry Gracia

1996-12 → 2001-09 · chassis MCV2#,SXV2# · catalogue 284160 · Japan

Discontinued model Data version 2002-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

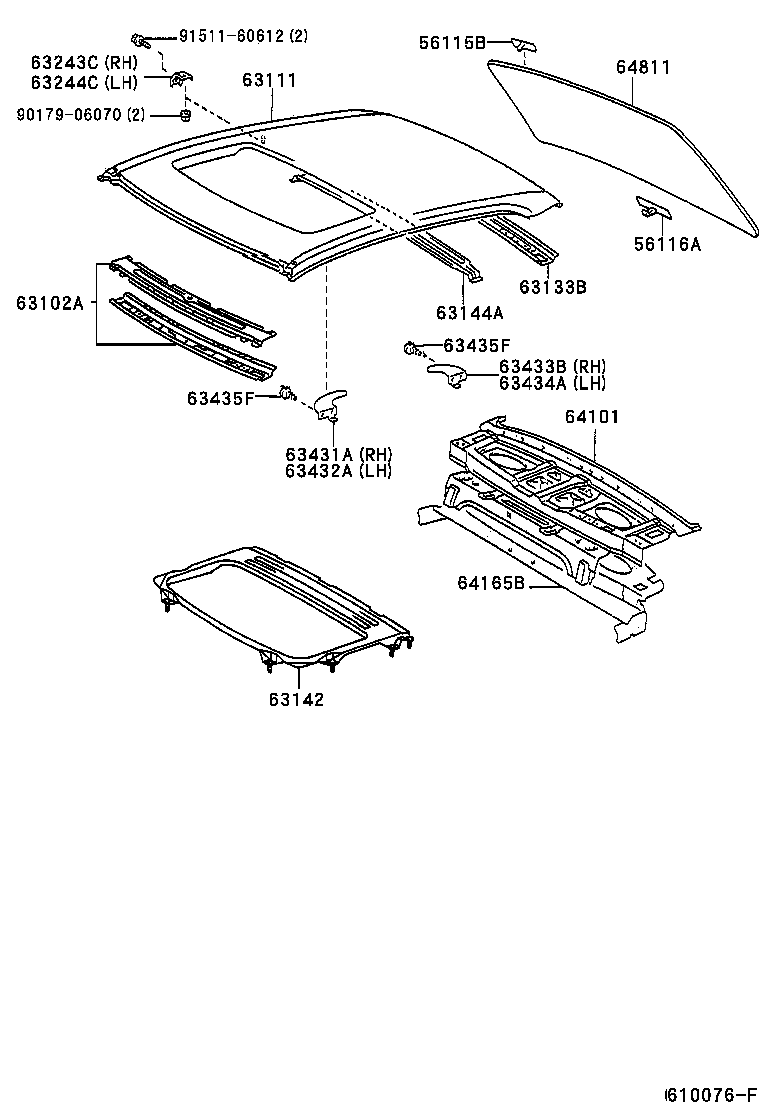

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

38 parts on this figure

Part number	Description	Fitment	Price
56115B — Stopper, Back Window Glass, NO.1
56116-35040	Stopper, Back Window Glass, NO.1 1996-12 → —	MCV21,SXV2# SED	¥210
56116A — Spacer, Windshield Glass
56116-35040	Spacer, Windshield Glass 1996-12 → —	MCV21,SXV2# SED	¥210
63102A — Panel Sub-assy, Windshield Header
63102-33060	Panel Sub-assy, Windshield Header 1996-12 → 1998-08 ended	MCV21,SXV20 SED	¥7,200
63102-33061	Panel Sub-assy, Windshield Header 1998-08 → —	MCV21,SXV2# SED	¥7,200
63102-33070 note	Panel Sub-assy, Windshield Header 1996-12 → 1998-08 ended	MCV21,SXV20 SED	¥7,200
63102-33071 note	Panel Sub-assy, Windshield Header 1998-08 → —	MCV21,SXV2# SED	¥7,200
63102-33100 note	Panel Sub-assy, Windshield Header 1996-12 → —	MCV2#,SXV2# WG	¥7,200
63102-33110	Panel Sub-assy, Windshield Header 1996-12 → —	MCV2#,SXV2# WG	¥7,200
63111 — Panel, Roof
63111-33110	Panel, Roof 1996-12 → —	MCV21,SXV2# SED	¥48,900
63111-33120 note	Panel, Roof 1996-12 → —	MCV21,SXV2# SED	¥48,900
63111-33150	Panel, Roof 1996-12 → —	MCV2#,SXV2# WG	¥79,400
63111-33160 note	Panel, Roof 1996-12 → —	MCV2#,SXV2# WG	¥79,400
63133B — Frame, Back Window
63133-AA020	Frame, Back Window 1996-12 → 1998-08 ended	MCV21,SXV20 SED	¥4,220
63133-AA030	Frame, Back Window 1998-08 → —	MCV21,SXV2# SED	¥4,210
63142 — Reinforcement, Roof Panel, NO.2
63142-33020	Reinforcement, Roof Panel, NO.2 1996-12 → —	MCV21,SXV2# SED	¥11,800
63142-33030	Reinforcement, Roof Panel, NO.2 1996-12 → —	MCV2#,SXV2# WG	¥11,800
63144A — Reinforcement, Roof Panel, NO.4
63144-33060	Reinforcement, Roof Panel, NO.4 1996-12 → —	MCV2#,SXV2# WG	¥6,000
63144-AA020	Reinforcement, Roof Panel, NO.4 1996-12 → —	MCV21,SXV2# SED	¥4,050
63144-AA030 note	Reinforcement, Roof Panel, NO.4 1996-12 → —	MCV21,SXV2# SED	¥4,210
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-33050	Bracket, Sliding Roof Housing Center Mounting, RH 1996-12 → —	MCV21,SXV2# SED	¥890
63243-33070	Bracket, Sliding Roof Housing Center Mounting, RH 1996-12 → —	MCV2#,SXV2# WG	¥750
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63243-33050	Bracket, Sliding Roof Housing Center Mounting, LH 1996-12 → —	MCV21,SXV2# SED	¥890
63243-33070	Bracket, Sliding Roof Housing Center Mounting, LH 1996-12 → —	MCV2#,SXV2# WG	¥750
63431A — Bracket, Roof Inner Rack, NO.1 RH
63431-33010	Bracket, Roof Inner Rack, NO.1 RH 1996-12 → —	MCV21,SXV2# SED	¥550
63431-33020 note	Bracket, Roof Inner Rack, NO.1 RH 1996-12 → —	MCV21,SXV2# SED	¥640
63432A — Bracket, Roof Inner Rack, NO.1 LH
63432-33010	Bracket, Roof Inner Rack, NO.1 LH 1996-12 → —	MCV21,SXV2# SED	¥550
63432-33020 note	Bracket, Roof Inner Rack, NO.1 LH 1996-12 → —	MCV21,SXV2# SED	¥640
63433B — Bracket, Roof Inner Rack, NO.2 RH
63433-33010	Bracket, Roof Inner Rack, NO.2 RH 1996-12 → —	MCV21,SXV2# SED	¥540
63434A — Bracket, Roof Inner Rack, NO.2 LH
63434-33010	Bracket, Roof Inner Rack, NO.2 LH 1996-12 → —	MCV21,SXV2# SED	¥540
63435F — Seal, Roof Carrier, NO.1
63435-12030	Seal, Roof Carrier, NO.1 1997-03 → —	MCV21,SXV2# SED	¥140
64101 — Panel Sub-assy, Upper Back
64101-33140	Panel Sub-assy, Upper Back 1996-12 → —	MCV21,SXV2# SED	¥27,400
64101-33230 note	Panel Sub-assy, Upper Back 1996-12 → —	MCV21,SXV2# SED	¥27,400
64101-33240 note	Panel Sub-assy, Upper Back 1996-12 → —	MCV21,SXV2# SED	¥27,400
64165B — Cover, Upper Back Panel Hole, NO.1
64165-33040	Cover, Upper Back Panel Hole, NO.1 1996-12 → —	MCV21,SXV2# SED	¥8,200
64811 — Glass, Back Window
64811-33250 note	Glass, Back Window 1996-12 → —	MCV21,SXV2# SED	¥91,300
64811-33260 note	Glass, Back Window 1996-12 → —	MCV21,SXV2# SED	¥93,100
64811-33900 note	Glass, Back Window 1996-12 → —	MCV21,SXV2# SED	¥92,400
64811-33904 note	Glass, Back Window 1996-12 → —	MCV21,SXV2# SED	¥96,800

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
