Toyota Camry Gracia

1996-12 → 2001-09 · chassis MCV2#,SXV2# · catalogue 284160 · Japan

Discontinued model Data version 2002-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

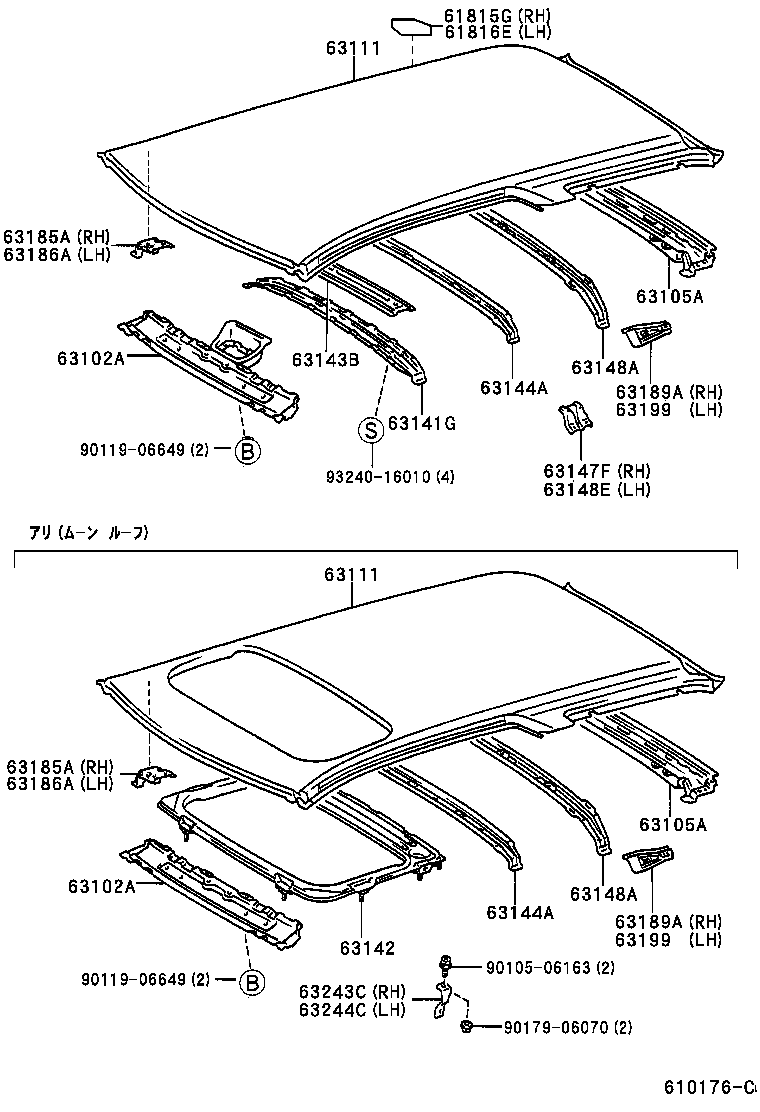

34 parts on this figure

Part number	Description	Fitment	Price
61815G — Cover, Roof Side, Inner Upper LH
61816-33020	Cover, Roof Side, Inner Upper LH 1996-12 → —	MCV2#,SXV2# WG	¥2,490
61816E — Cover, Roof Side, Inner Upper LH
61816-33020	Cover, Roof Side, Inner Upper LH 1996-12 → —	MCV2#,SXV2# WG	¥2,490
63102A — Panel Sub-assy, Windshield Header
63102-33060	Panel Sub-assy, Windshield Header 1996-12 → 1998-08 ended	MCV21,SXV20 SED	¥7,200
63102-33061	Panel Sub-assy, Windshield Header 1998-08 → —	MCV21,SXV2# SED	¥7,200
63102-33070 note	Panel Sub-assy, Windshield Header 1996-12 → 1998-08 ended	MCV21,SXV20 SED	¥7,200
63102-33071 note	Panel Sub-assy, Windshield Header 1998-08 → —	MCV21,SXV2# SED	¥7,200
63102-33100 note	Panel Sub-assy, Windshield Header 1996-12 → —	MCV2#,SXV2# WG	¥7,200
63102-33110	Panel Sub-assy, Windshield Header 1996-12 → —	MCV2#,SXV2# WG	¥7,200
63105A — Frame Sub-assy, Back Door Opening
63105-33010	Frame Sub-assy, Back Door Opening 1996-12 → —	MCV2#,SXV2# WG	¥12,000
63111 — Panel, Roof
63111-33110	Panel, Roof 1996-12 → —	MCV21,SXV2# SED	¥48,900
63111-33120 note	Panel, Roof 1996-12 → —	MCV21,SXV2# SED	¥48,900
63111-33150	Panel, Roof 1996-12 → —	MCV2#,SXV2# WG	¥79,400
63111-33160 note	Panel, Roof 1996-12 → —	MCV2#,SXV2# WG	¥79,400
63141G — Reinforcement, Roof Panel, NO.1
63141-33040	Reinforcement, Roof Panel, NO.1 1996-12 → —	MCV2#,SXV2# WG	¥7,600
63142 — Reinforcement, Roof Panel, NO.2
63142-33020	Reinforcement, Roof Panel, NO.2 1996-12 → —	MCV21,SXV2# SED	¥11,800
63142-33030	Reinforcement, Roof Panel, NO.2 1996-12 → —	MCV2#,SXV2# WG	¥11,800
63143B — Reinforcement, Roof Panel, NO.3
63143-33040	Reinforcement, Roof Panel, NO.3 1996-12 → —	MCV2#,SXV2# WG	¥6,000
63143-AA020	Reinforcement, Roof Panel, NO.3 1996-12 → —	MCV21,SXV2# SED	¥3,230
63144A — Reinforcement, Roof Panel, NO.4
63144-33060	Reinforcement, Roof Panel, NO.4 1996-12 → —	MCV2#,SXV2# WG	¥6,000
63144-AA020	Reinforcement, Roof Panel, NO.4 1996-12 → —	MCV21,SXV2# SED	¥4,050
63144-AA030 note	Reinforcement, Roof Panel, NO.4 1996-12 → —	MCV21,SXV2# SED	¥4,210
63147F — Bracket, Roof Panel Reinforcement, RH
63147-33010	Bracket, Roof Panel Reinforcement, RH 1996-12 → 1998-08 ended	MCV21,SXV20 SED	¥1,270
63147-33020	Bracket, Roof Panel Reinforcement, RH 1996-12 → 1998-08 ended	MCV2#,SXV2# WG	¥1,000
63148A — Reinforcement, Roof Panel, NO.7
63148-33020	Reinforcement, Roof Panel, NO.7 1996-12 → —	MCV2#,SXV2# WG	¥4,210
63148E — Bracket, Roof Panel Reinforcement, LH
63147-33010	Bracket, Roof Panel Reinforcement, LH 1996-12 → 1998-08 ended	MCV21,SXV20 SED	¥1,270
63147-33020	Bracket, Roof Panel Reinforcement, LH 1996-12 → 1998-08 ended	MCV2#,SXV2# WG	¥1,000
63185A — Bracket, Roof Rack, Front RH
63185-33020	Bracket, Roof Rack, Front RH 1996-12 → —	MCV2#,SXV2# WG	¥890
63186A — Bracket, Roof Rack, Front LH
63186-33020	Bracket, Roof Rack, Front LH 1996-12 → —	MCV2#,SXV2# WG	¥890
63189A — Bracket, Roof Rack, Center
63189-33020	Bracket, Roof Rack, Center 1996-12 → —	MCV2#,SXV2# WG	¥1,030
63199 — Bracket, Roof Rack, Center LH
63199-33020	Bracket, Roof Rack, Center LH 1996-12 → —	MCV2#,SXV2# WG	¥1,030
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-33050	Bracket, Sliding Roof Housing Center Mounting, RH 1996-12 → —	MCV21,SXV2# SED	¥890
63243-33070	Bracket, Sliding Roof Housing Center Mounting, RH 1996-12 → —	MCV2#,SXV2# WG	¥750
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63243-33050	Bracket, Sliding Roof Housing Center Mounting, LH 1996-12 → —	MCV21,SXV2# SED	¥890
63243-33070	Bracket, Sliding Roof Housing Center Mounting, LH 1996-12 → —	MCV2#,SXV2# WG	¥750

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
