Toyota Camry Gracia
1996-12 → 2001-09 · chassis MCV2#,SXV2# · catalogue 284160 · Japan
Discontinued model
Data version 2002-01

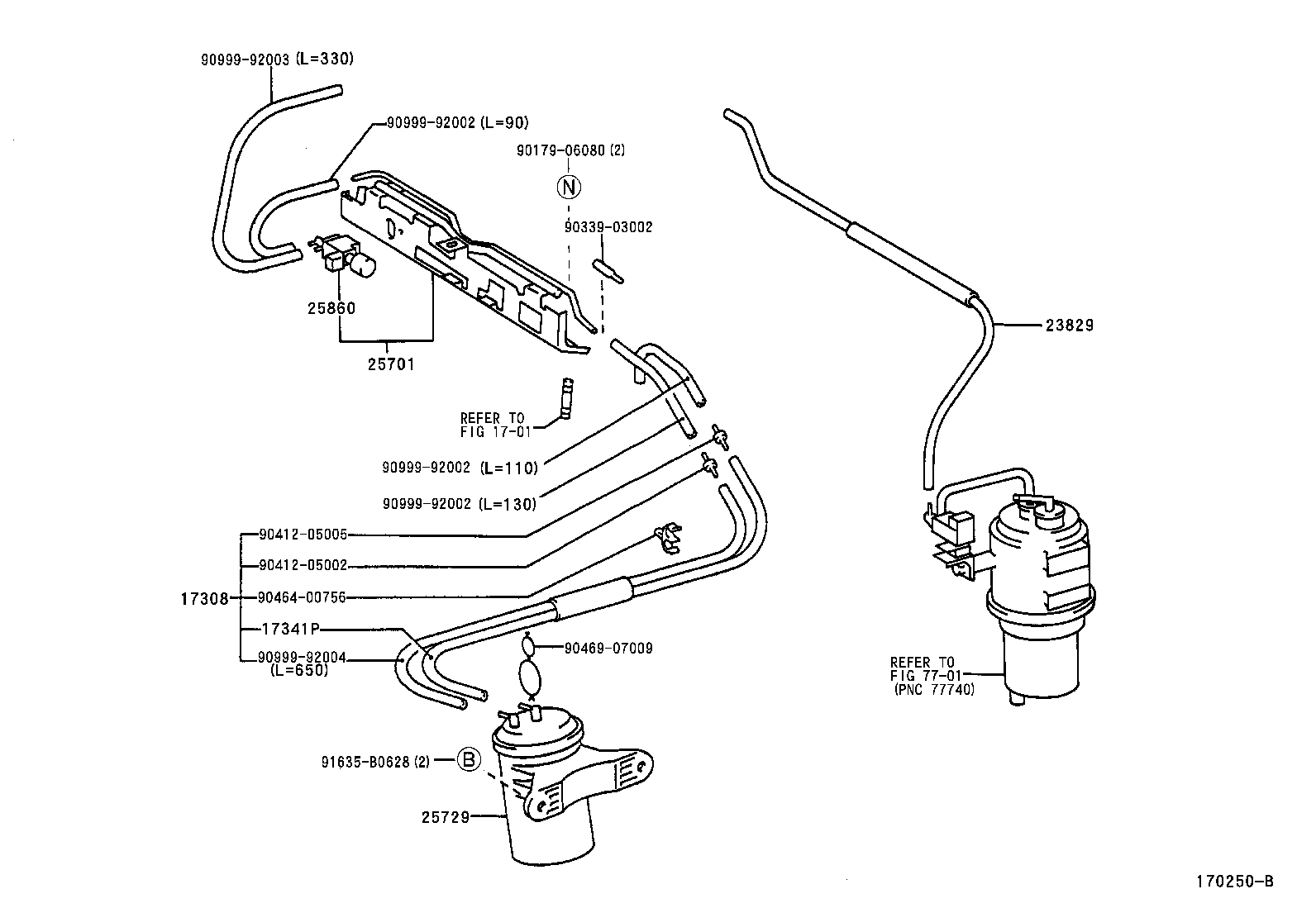

Vacuum Piping
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17341P | Hose, Air |
| 23265 | Filter, Gas, NO.1 |
| 23829 | Hose, Fuel Vapor Feed, NO.3 |
| 25701 | Valve Set, Emission Control |
| 25729 | Tank, Vacuum Surge W/Bracket |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
