Toyota Camry Gracia

1996-12 → 2001-09 · chassis MCV2#,SXV2# · catalogue 284160 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

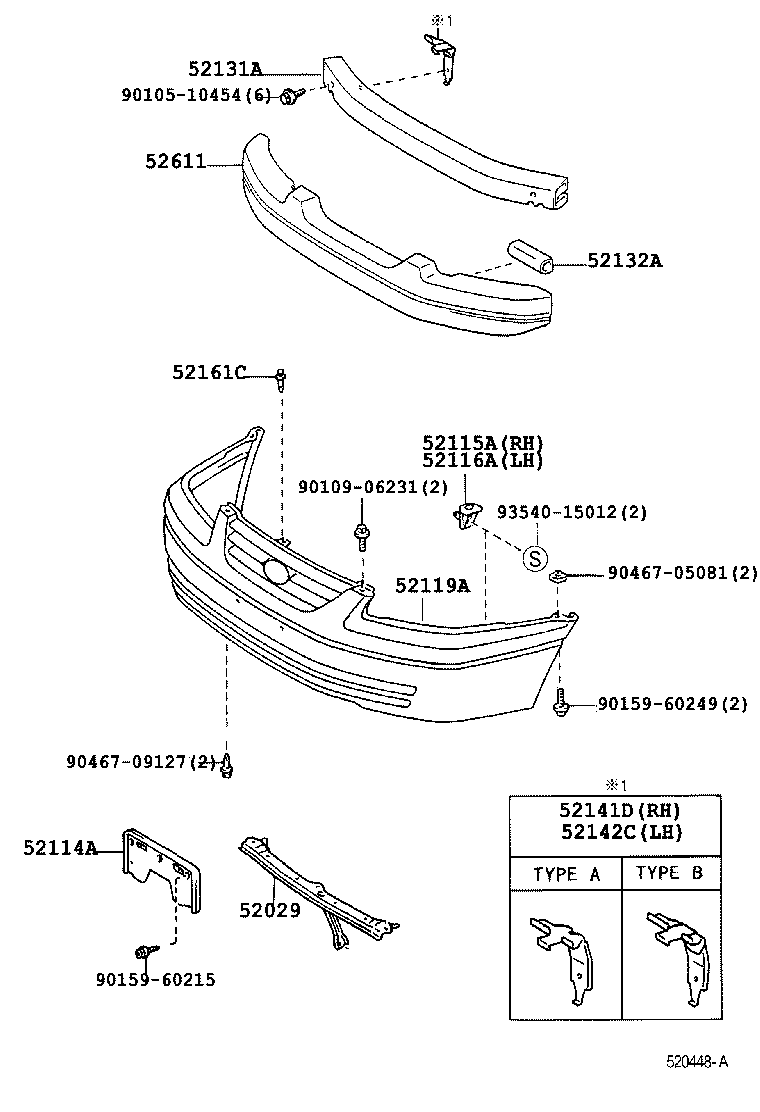

Figure 520042H 520042H 1996-12 → — Figure 520448A 520448A 1998-08 → —

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52132A Reinforcement, Front Bumper, NO.2
52141D Stay, Front Bumper, RH
52142C Stay, Front Bumper, LH
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
