Toyota Camry Gracia

1996-12 → 2001-09 · chassis MCV2#,SXV2# · catalogue 284160 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

11 part groups · 2 illustrations

Illustrations

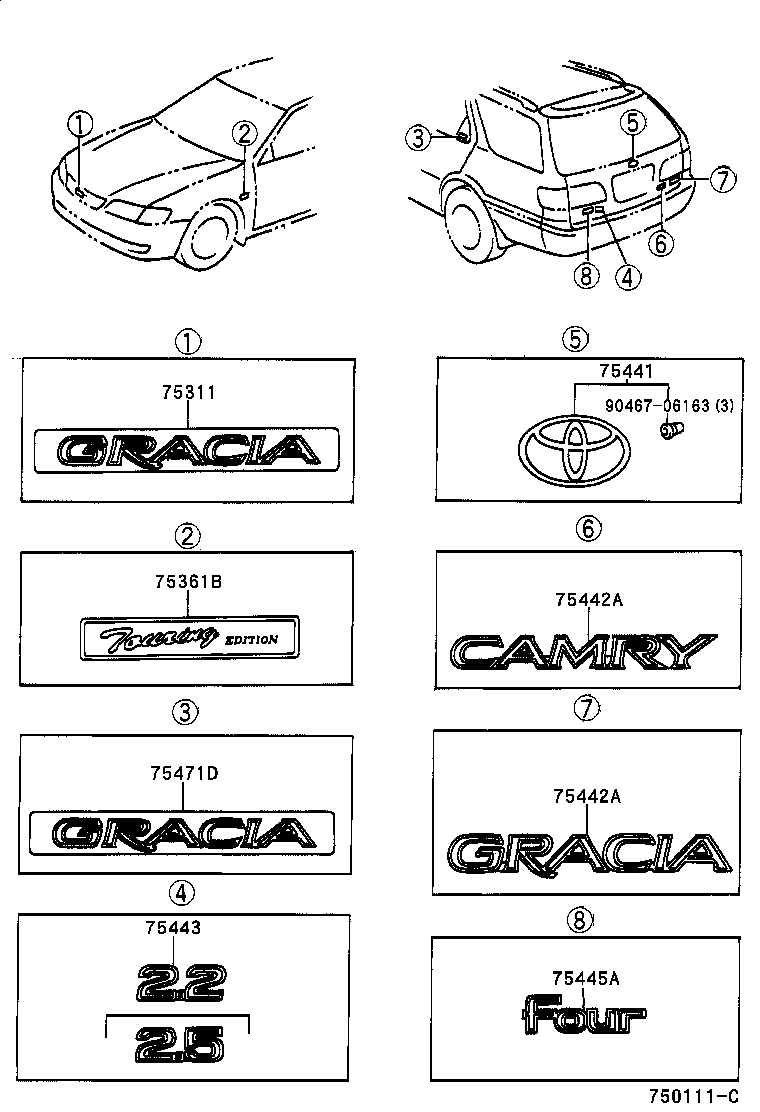

Figure 750046C 750046C 1996-12 → — Figure 750111C 750111C 1996-12 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75361B Plate, Side Panel Name
75441 Plate, Rear Name, NO.1
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75443A Plate, Luggage Compartment Door, NO.3
75445 Plate, Luggage Compartment Door Name, NO.5
75445A Plate, Back Door Name, NO.5
75471D Plate, Rear Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
