Toyota Camry Gracia

1996-12 → 2001-09 · chassis MCV2#,SXV2# · catalogue 284160 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

11 part groups · 2 illustrations

Illustrations

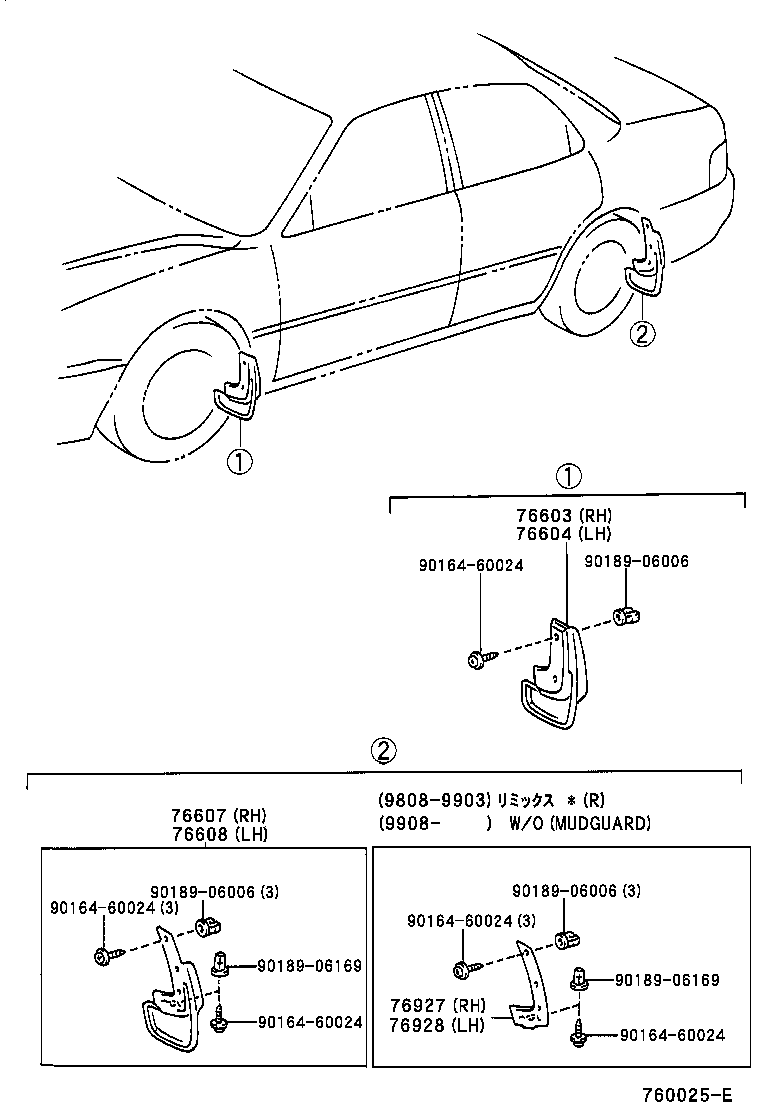

Figure 760036E 760036E 1996-12 → — Figure 760025E 760025E 1996-12 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76625D Mudguard, Quarter Panel, Rear RH
76626D Mudguard, Quarter Panel, Rear LH
76879 Clip, Rear Spoiler, NO.1
76927 Protecter, Rear Mudguard, RH
76928 Protecter, Rear Mudguard, LH
81977B Cover, Center Stop Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
