Toyota Camry Gracia

1996-12 → 2001-09 · chassis MCV2#,SXV2# · catalogue 284160 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

6 part groups · 3 illustrations

Illustrations

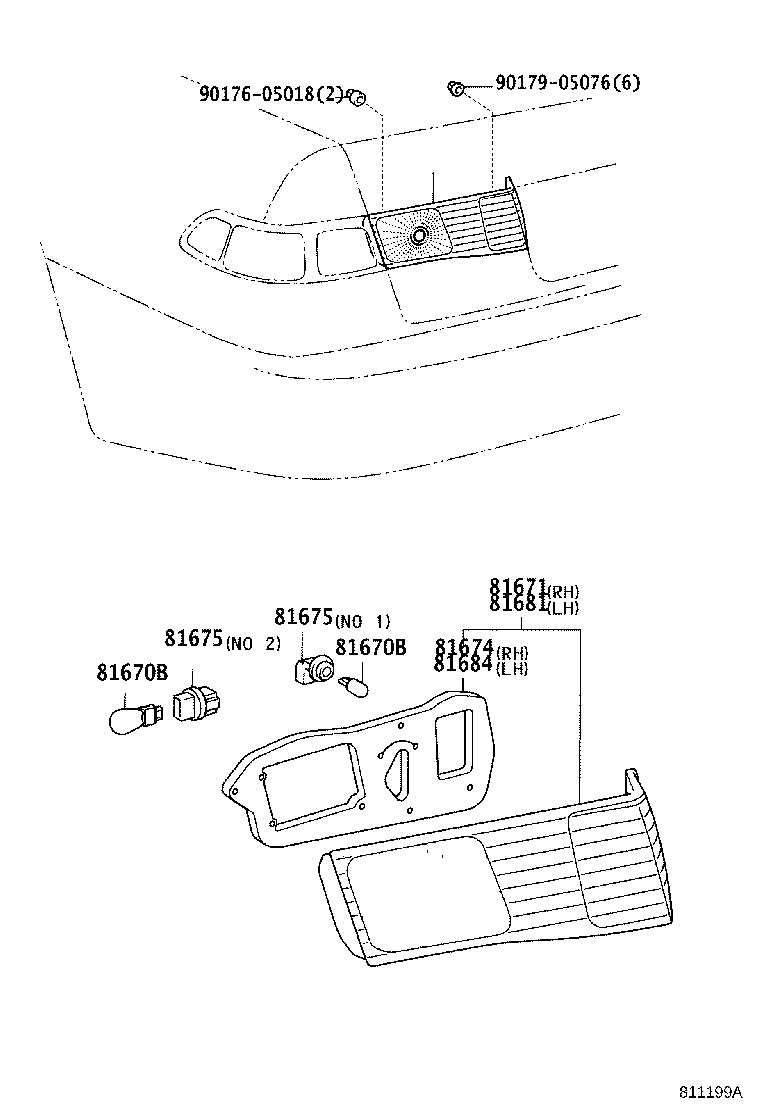

Figure 810080B 810080B 1996-12 → 1999-08 Figure 811199A 811199A 1999-08 → — Figure 811102A 811102A 1996-12 → —

Part groups

PNCDescription
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81681 Lens, Back-up Lamp, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
