Toyota Camry Gracia
1996-12 → 2001-09 · chassis MCV2#,SXV2# · catalogue 284160 · Japan
Discontinued model
Data version 2002-01

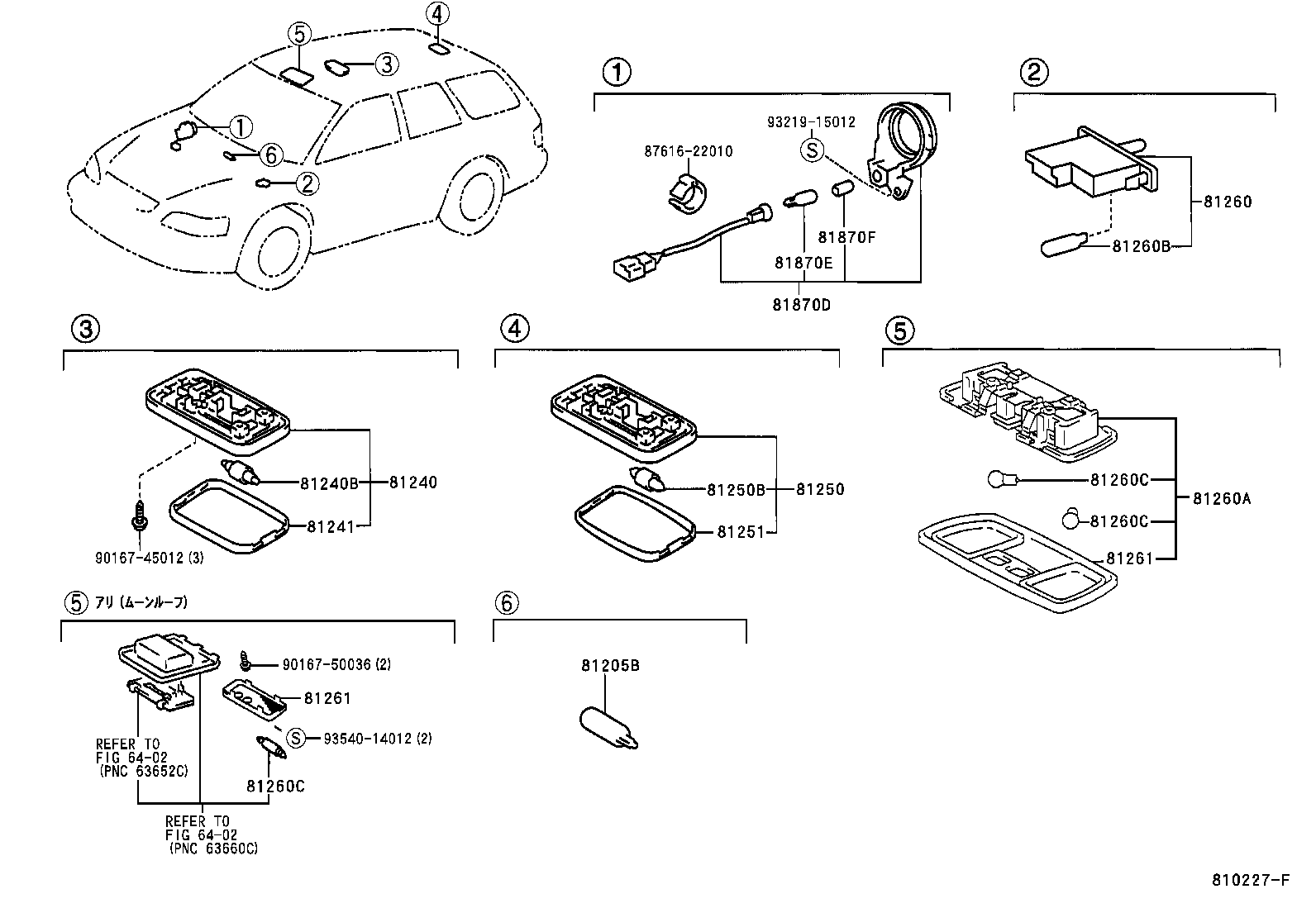

Interior Lamp
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205B | Bulb, Ash Receptacle Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81251 | Lens, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
| 81870F | Cap, Key Cylinder Lamp Bulb |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
