Toyota Camry

2001-09 → 2006-01 · chassis ACV3# · catalogue 284170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

21 part groups · 2 illustrations

Illustrations

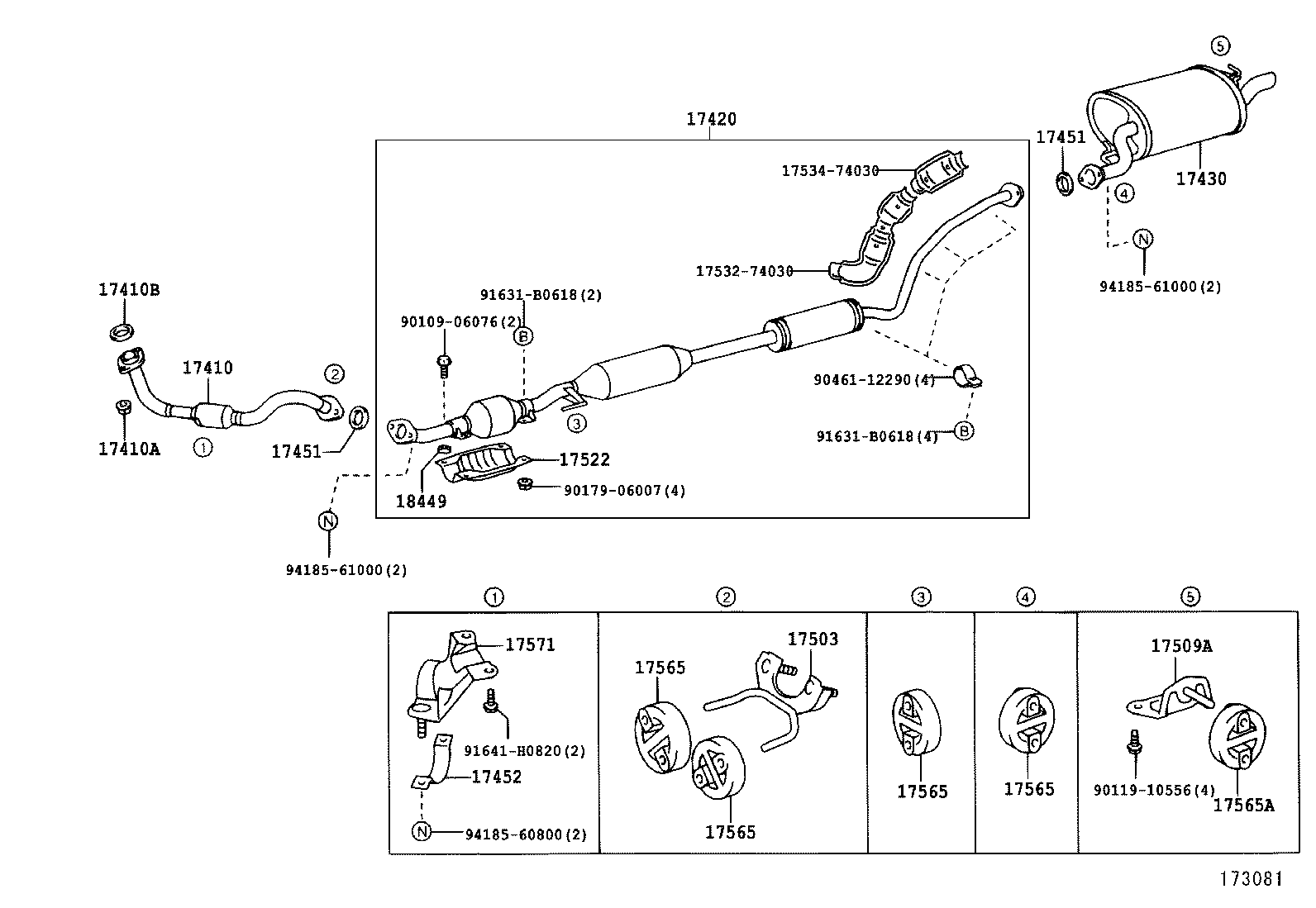

Figure 173125B 173125B 2001-09 → — Figure 173081B 173081B 2001-09 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17522 Protector, Exhaust Pipe, Upper NO.2
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573A Bracket, Exhaust Pipe Support, NO.3
17581A Damper, Exhaust Pipe
17584B Bracket, Exhaust Pipe NO.1 Support
18449 Spacer, Converter Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
