Toyota Camry

2001-09 → 2006-01 · chassis ACV3# · catalogue 284170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

24 part groups · 2 illustrations

Illustrations

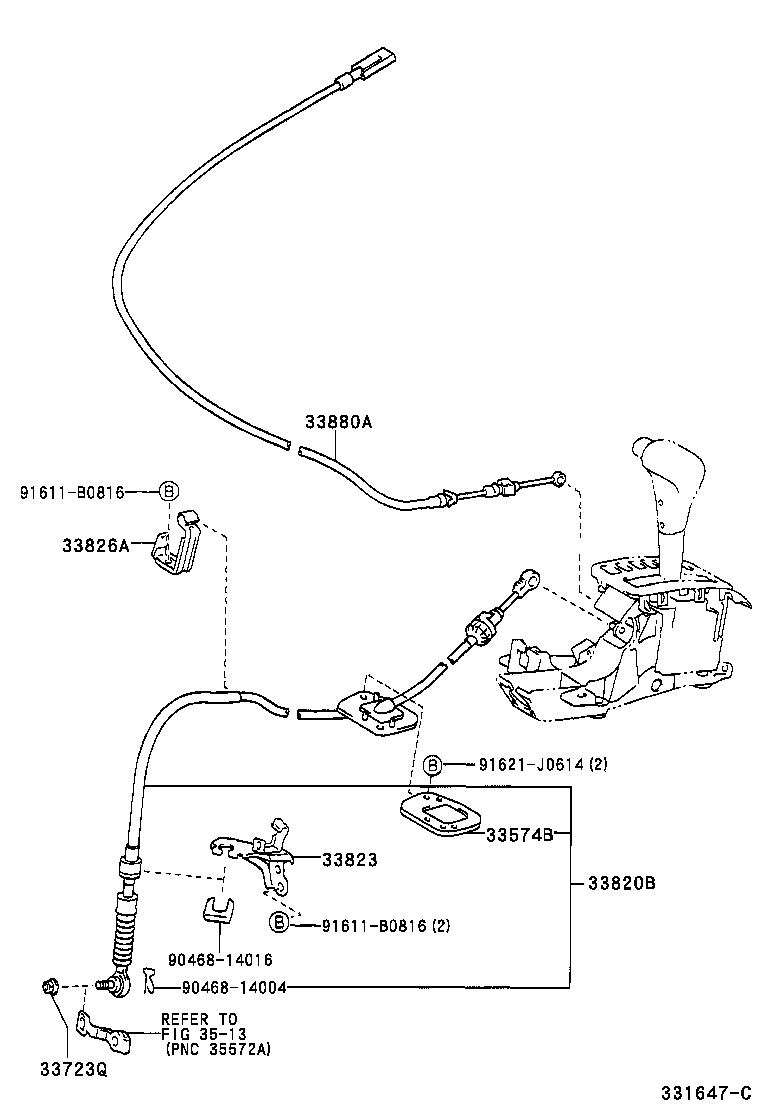

Figure 331646 331646 2001-09 → — Figure 331647C 331647C 2001-09 → —

Part groups

PNCDescription
33502 Plate Sub-assy, Shift Lever
33504C Screw (FOR SHIFT LEVER KNOB SETTING)
33504F Knob Sub-assy, Shift Lever
33544 Insert, Shift Lever, NO.1
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33560 Unit Assy, Shift Lock Control
33563 Button, Shift Lock Release
33574B Retainer, Shift Cable Grommet, NO.2
33623 Button, Shift Lever Knob
33623A Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
33723Q Nut (FOR CONNECTING ROD SWIVEL)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33866 Spring, Shift Lock Release
33880A Cable Assy, Parking Lock (FOR FLOOR SHIFT)
35586C Pin, Toggle Lever Support
35906 Wire Sub-assy, Indicator Lamp
35971A Housing, Position Indicator, Upper
35972 Cover, Position Indicator Housing
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
