Toyota Camry

2001-09 → 2006-01 · chassis ACV3# · catalogue 284170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

13 part groups · 2 illustrations

Illustrations

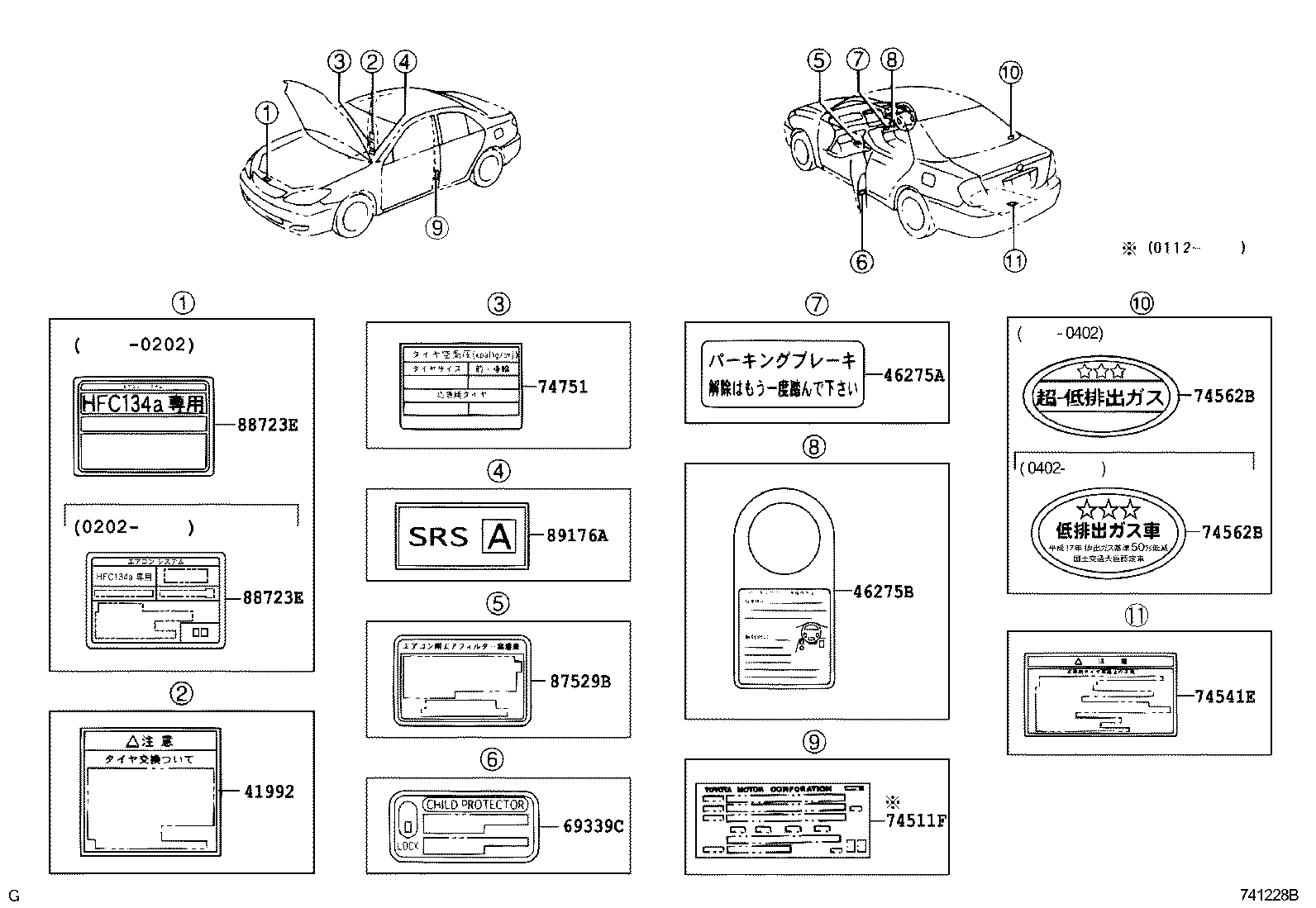

Figure 746017 746017 2001-09 → — Figure 741228B 741228B 2001-09 → —

Part groups

PNCDescription
11296C Label, Engine Service Information
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541E Plate, Compact Spare Tire Caution
74562B Label, Emission Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
