Toyota Camry

2001-09 → 2006-01 · chassis ACV3# · catalogue 284170 · Japan

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

16 part groups · 2 illustrations

Illustrations

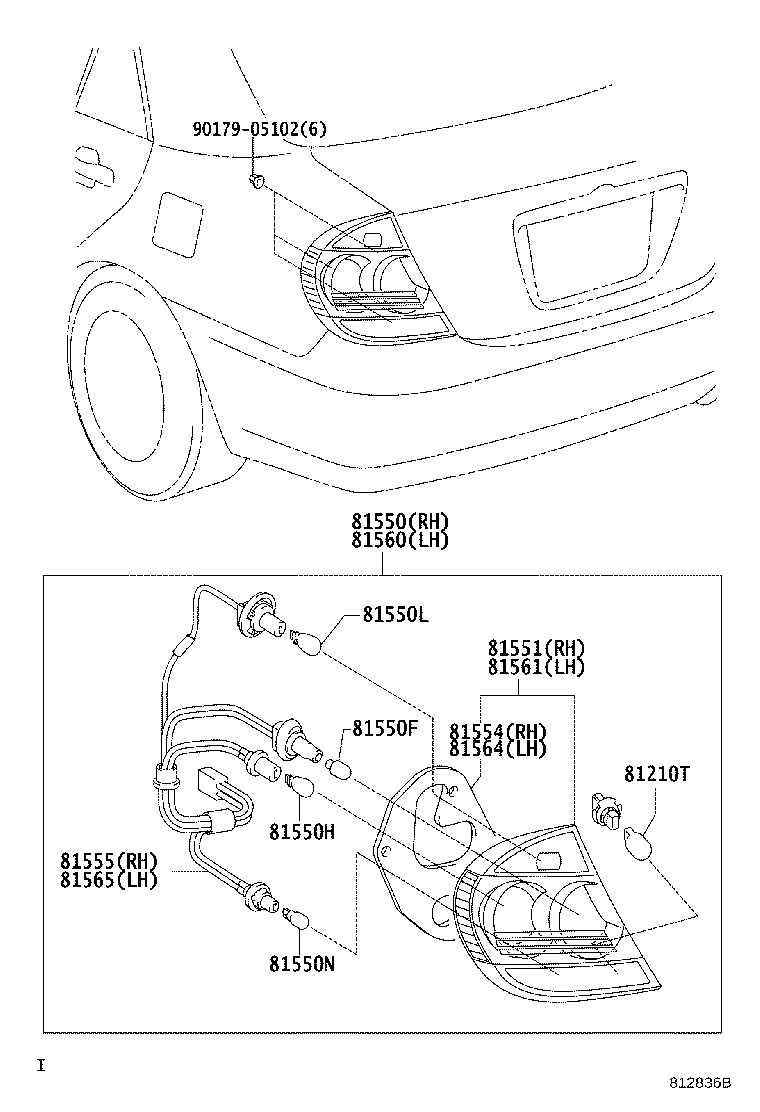

Figure 811926D 811926D 2001-09 → 2004-06 Figure 812836B 812836B 2004-06 → —

Part groups

PNCDescription
81210T Bulb, Rear Fog Lamp
81550 Lamp Assy, Rear Combination, RH
81550F Bulb, Taillamp
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550U Bulb, Stop Lamp
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
