Toyota Camry
2006-01 → 2011-08 · chassis ACV4# · catalogue 284180 · Japan
Supported model
Data version 2012-01

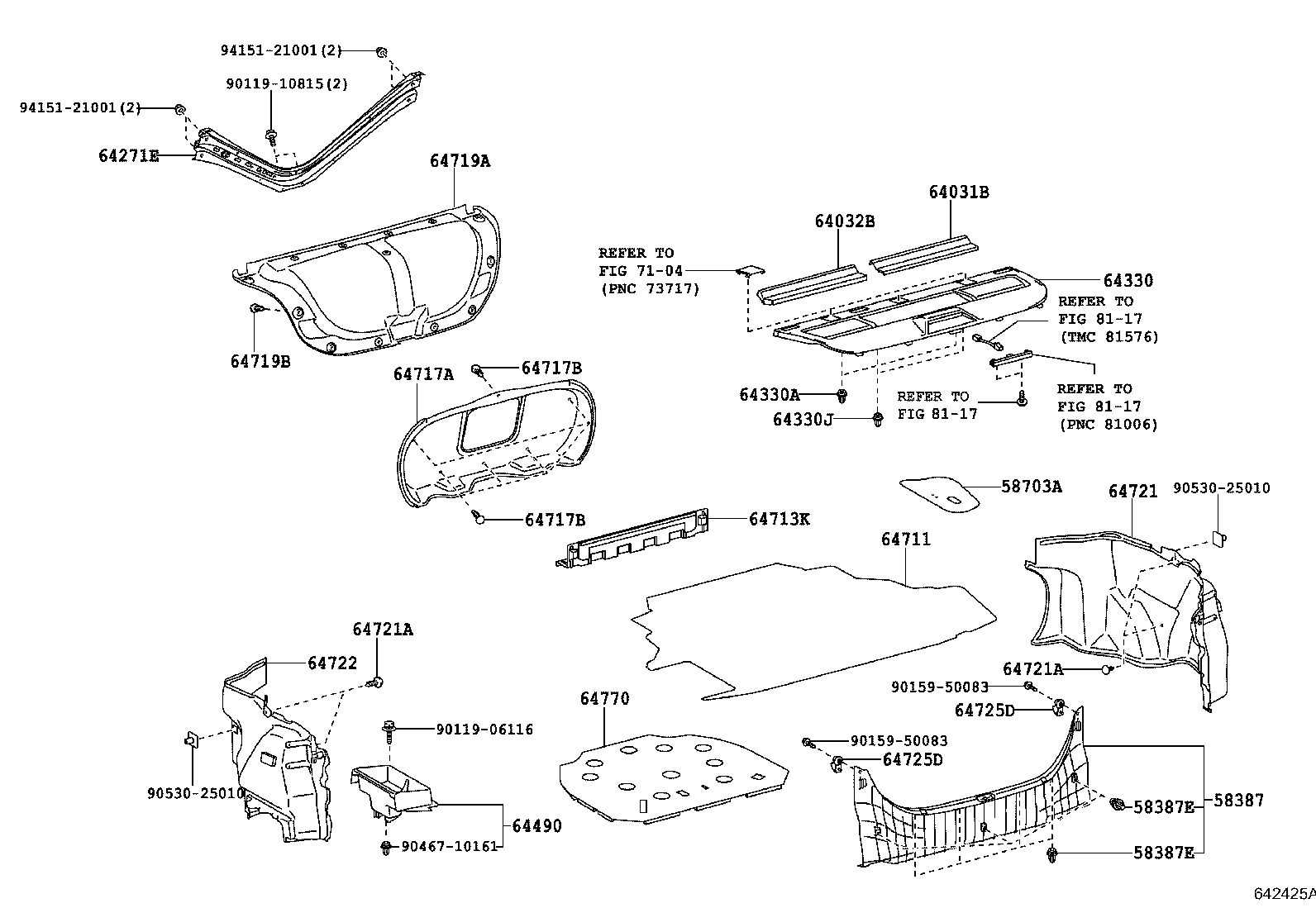

Package Tray Panel & Luggage Compartment Mat
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 64031B | Cover Sub-assy, Tonneau Side, RH |
| 64032B | Cover Sub-assy, Tonneau Side, LH |
| 64271E | Panel, Room Partition |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64490 | Tray Assy, Luggage Compartment Side |
| 64711 | Mat, Luggage Compartment Floor |
| 64713K | Cover, Luggage Compartment Trim, Front Upper |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64770 | Cover Assy, Spare Wheel |
| 65917B | Cap, Curtain Rail End, RH |
| 65918C | Cap, Curtain Rail End, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
