Toyota Camry

2006-01 → 2011-08 · chassis ACV4# · catalogue 284180 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

18 part groups · 3 illustrations

Illustrations

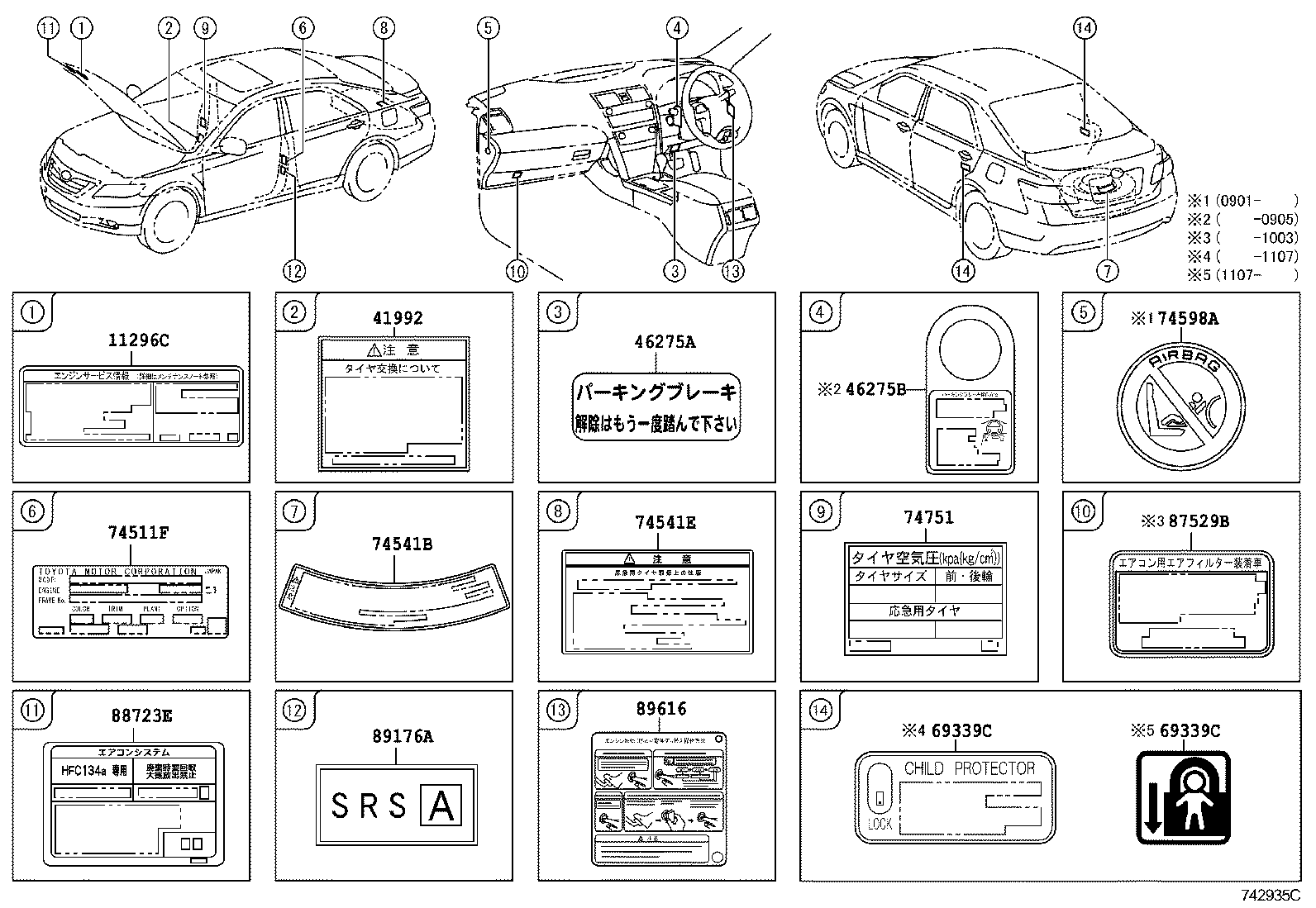

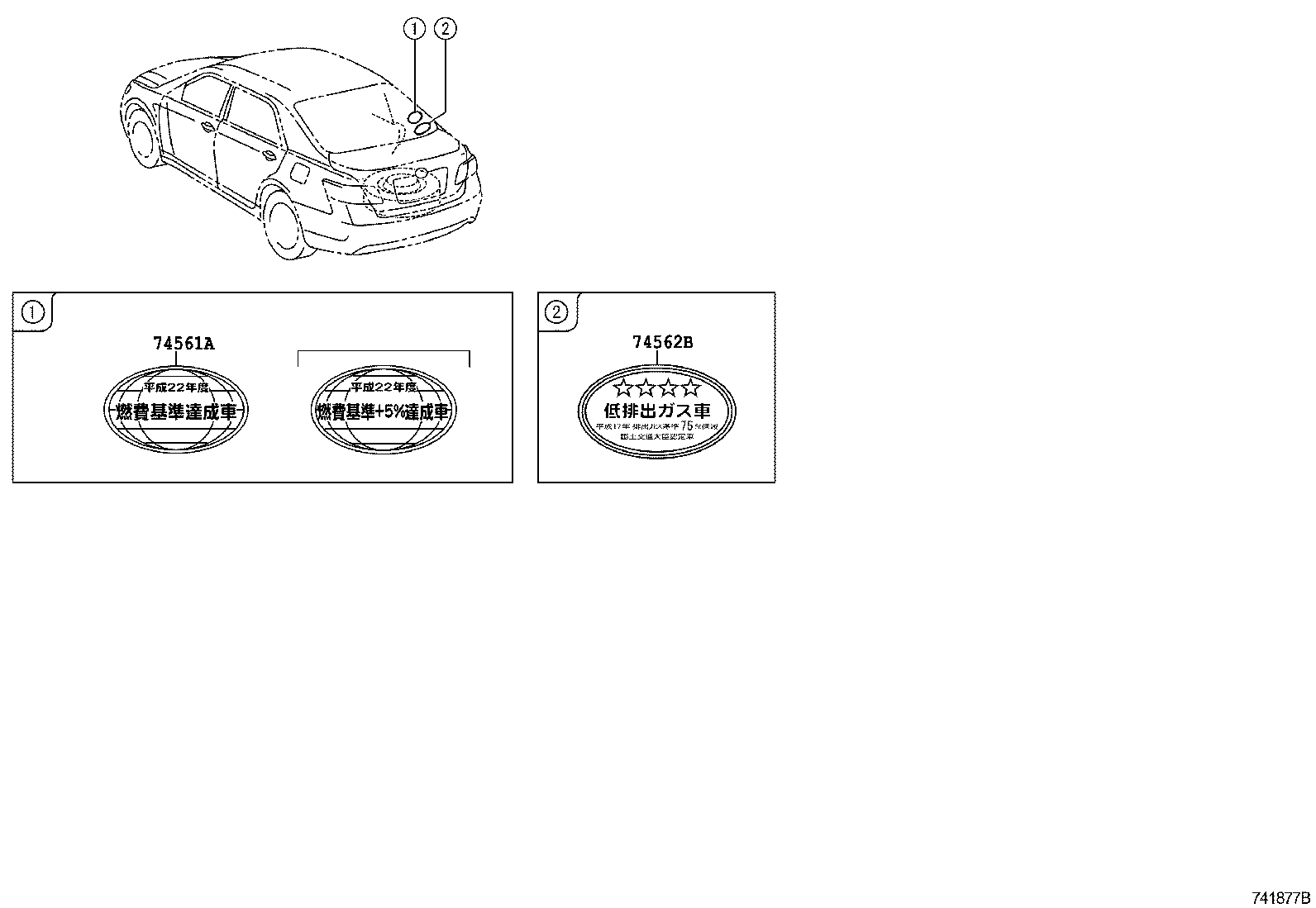

Figure 746120 746120 2006-01 → — Figure 742935C 742935C 2006-01 → — Figure 741877B 741877B 2006-01 → —

Part groups

PNCDescription
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
