Toyota Camry

2006-01 → 2011-08 · chassis ACV4# · catalogue 284180 · Japan

Supported model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 2 illustrations

Illustrations

Figure 847595H

847595H 2006-01 → 2009-01

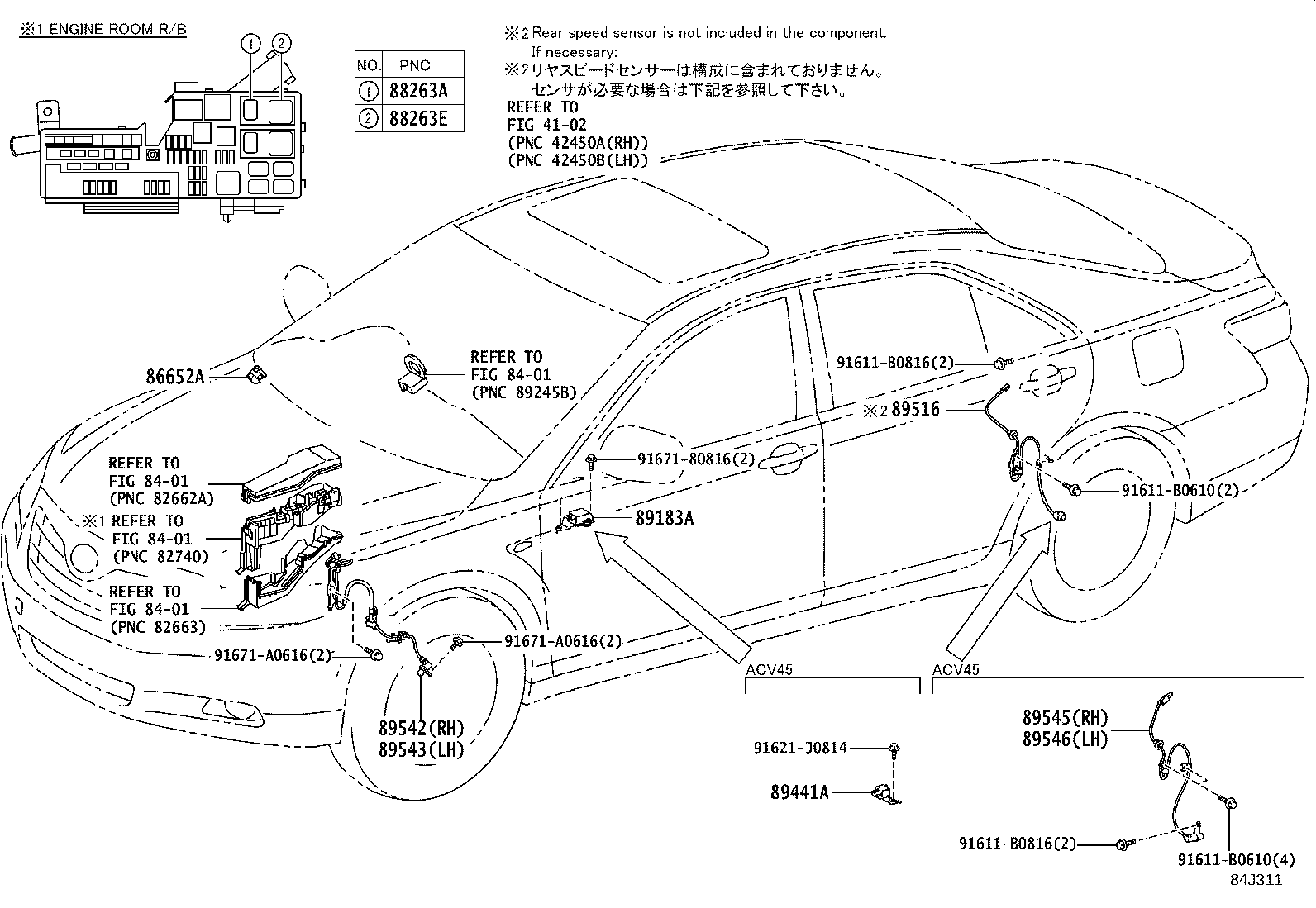

Figure 84J311

84J311 2009-01 → —

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
88263A	Relay, Skid Control
88263E	Relay, Skid Control NO.2
89183A	Sensor, Yawrate
89441A	Sensor, Deceleration
89516	Wire, Skid Control Sensor
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
