Toyota Camry

2006-01 → 2011-08 · chassis ACV4# · catalogue 284180 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

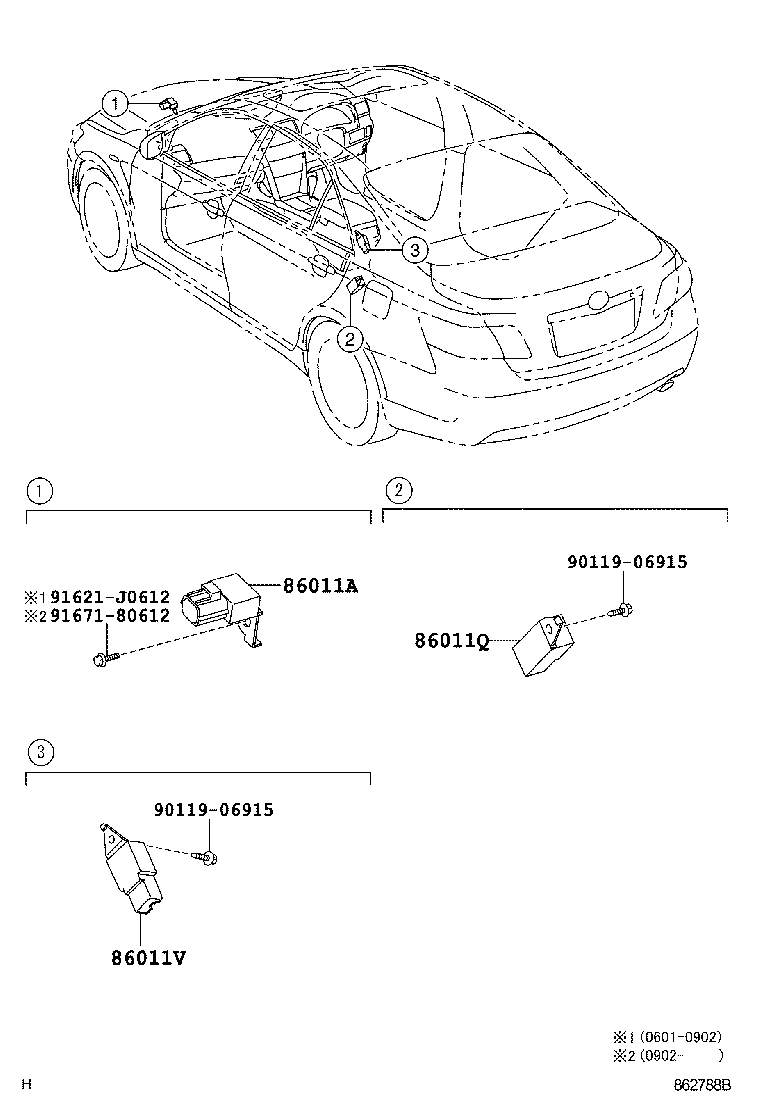

Figure 862778A 862778A 2006-01 → 2009-01 Figure 863763B 863763B 2009-01 → — Figure 862788B 862788B 2006-01 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86250 Microphone Assy, Amplifier
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
