Factory parts data · Europe

Toyota Camry

2006-01 → 2011-08 · chassis ACV4# · catalogue 284180 · Japan

Supported model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 2 illustrations

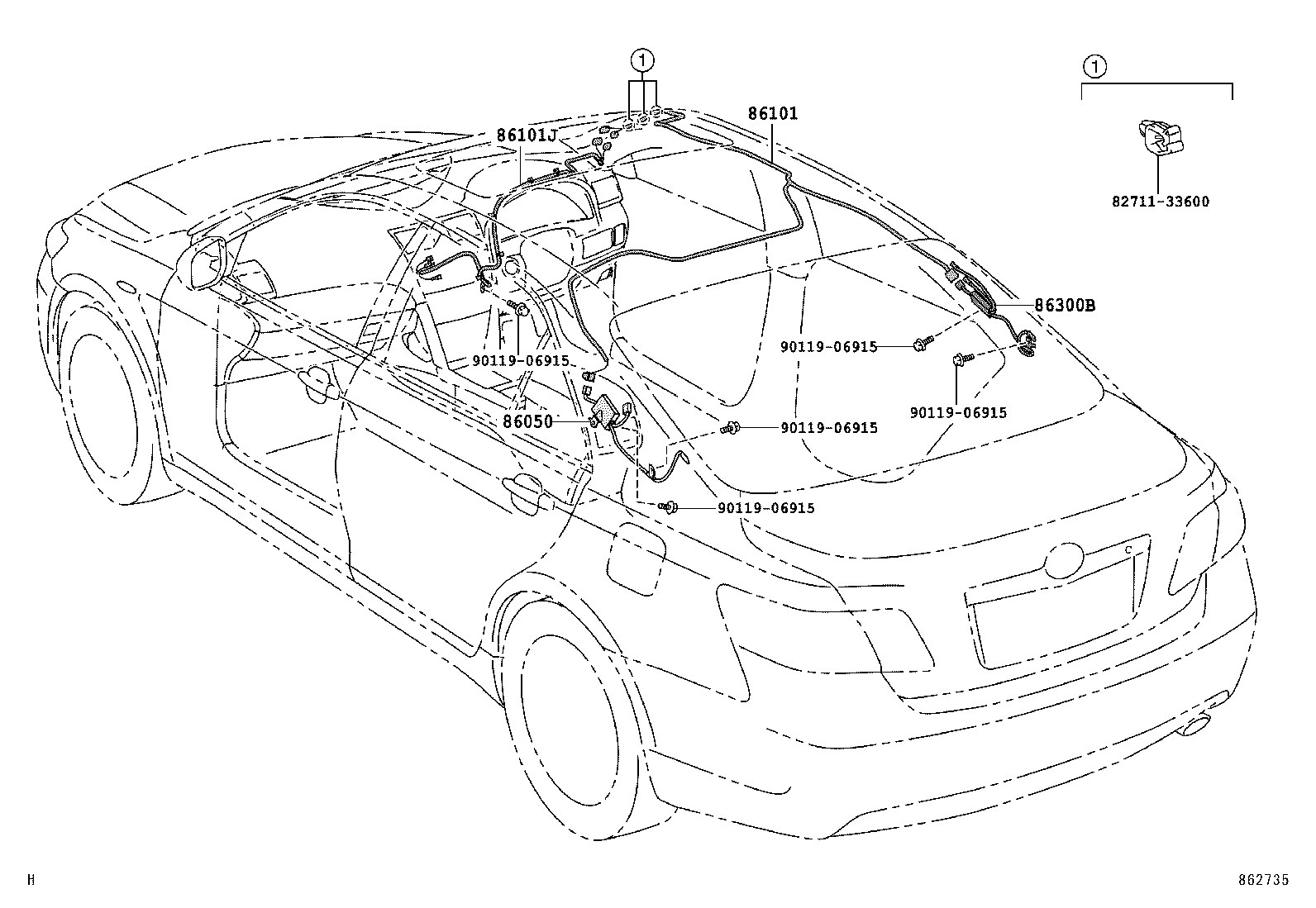

Illustrations

862789 2006-01 → —

862735 2006-01 → —

Part groups

PNC	Description
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86300B	Antenna Assy, Amplifier, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
