Toyota Camry

2006-01 → 2011-08 · chassis ACV4# · catalogue 284180 · Japan

Supported model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

10 part groups · 2 illustrations

Illustrations

Figure 878230D

878230D 2006-01 → —

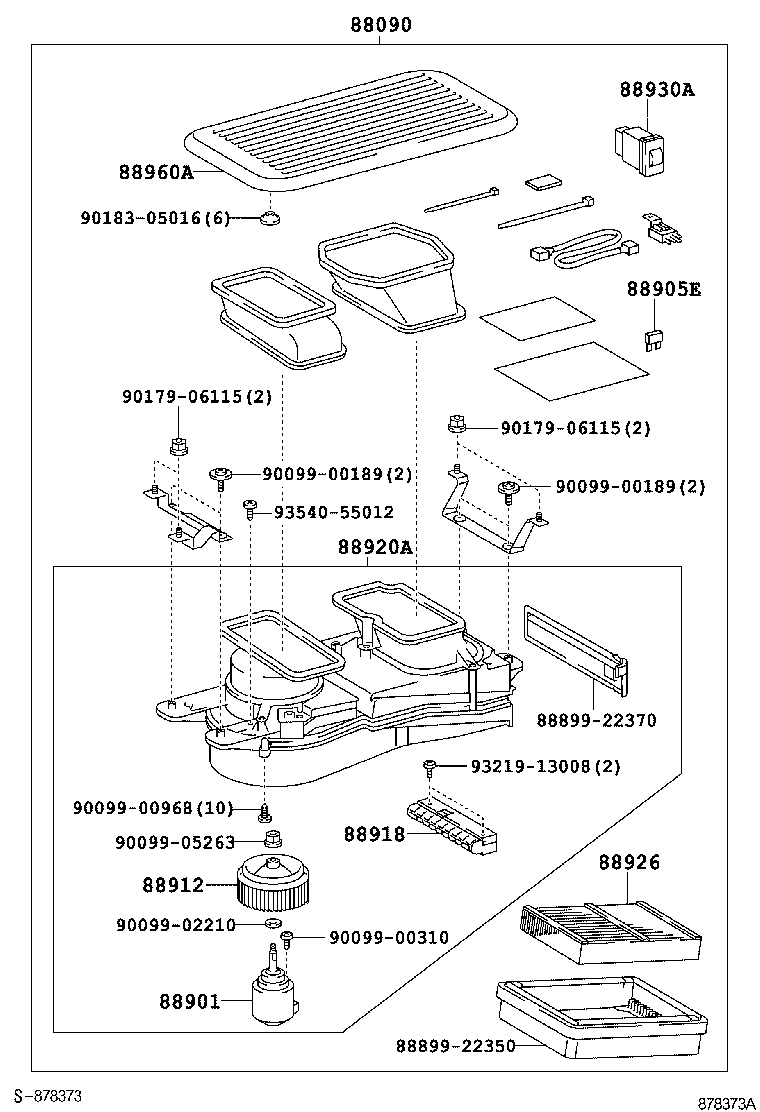

Figure 878373A

878373A 2006-01 → —

Part groups

PNC	Description
88051A	Generator Sub-assy,Ion
88090	Air Purifier & Accessory Assy
88901	Motor Sub-assy, Air Purifier
88905E	Fuse, Air Purifier Wire
88912	Fan, Air Purifier
88918	Lamp, Air Purifier
88920A	Purifier Assy, Air
88926	Filter, Air Purifier
88930A	Switch Assy, Air Purifier
88960A	Grille Assy, Air Purifier

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
