Toyota Camry Hybrid
2011-08 → 2017-04 · chassis AVV50 · catalogue 284190 · Japan
Supported model
Data version 2017-10

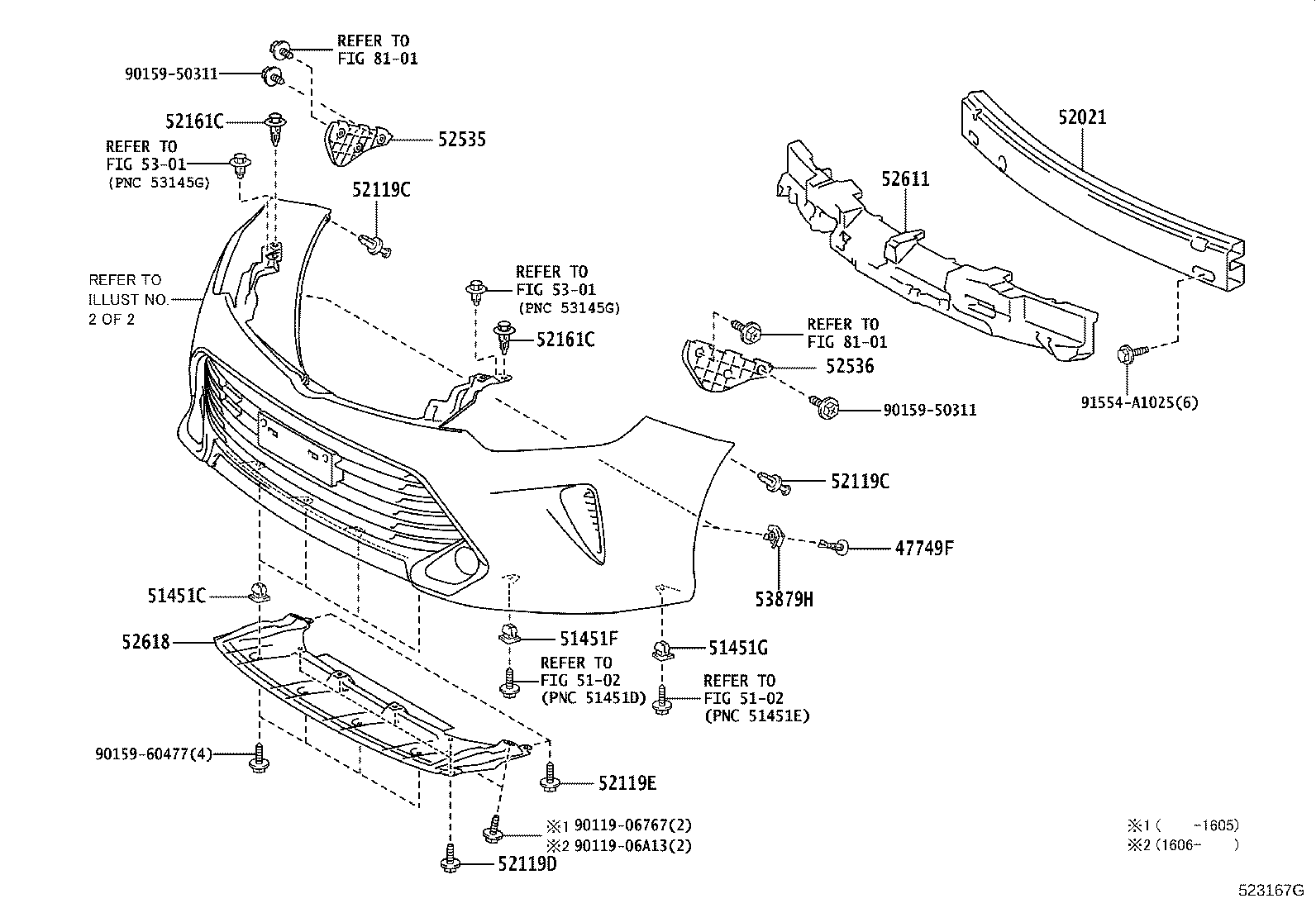

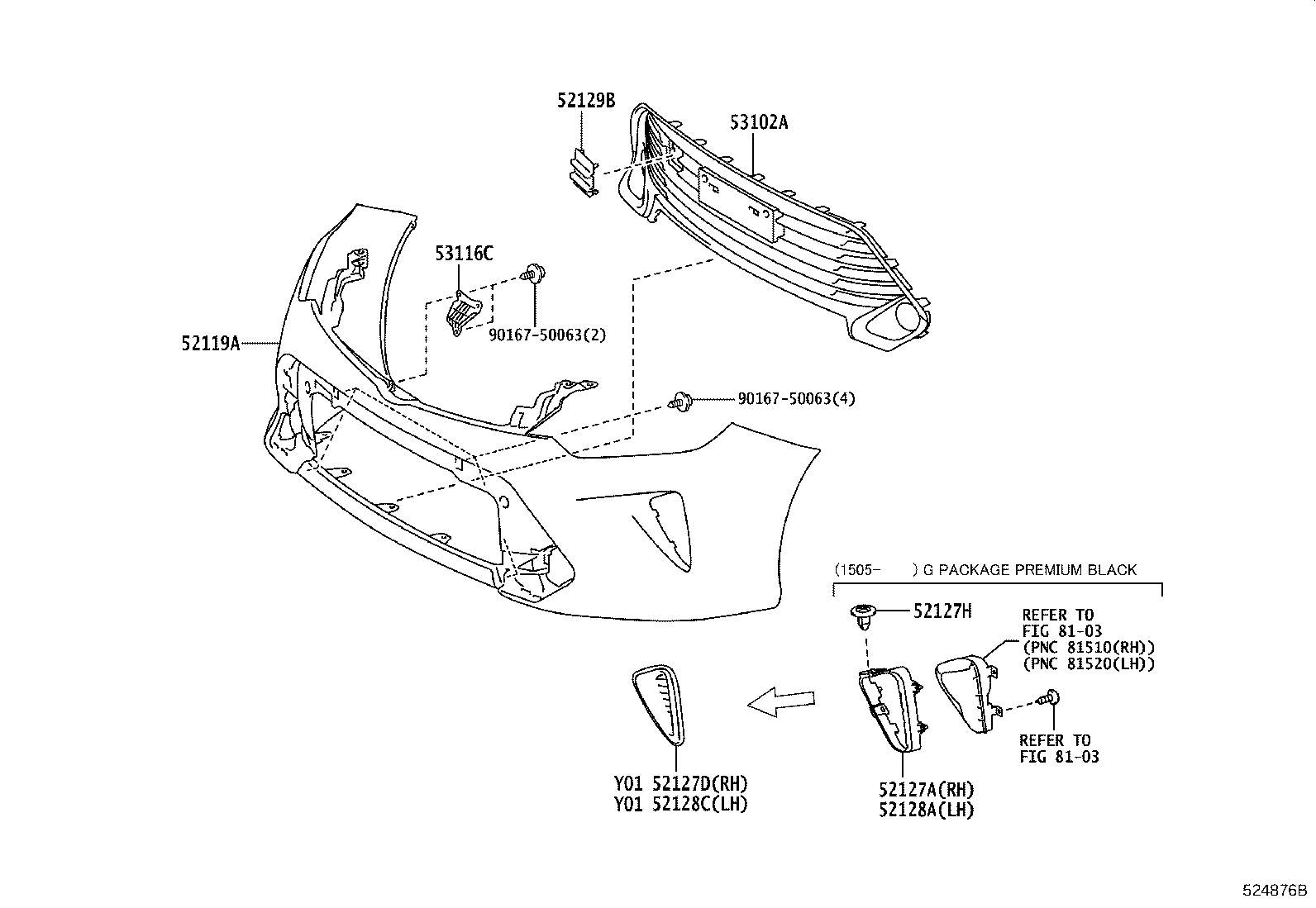

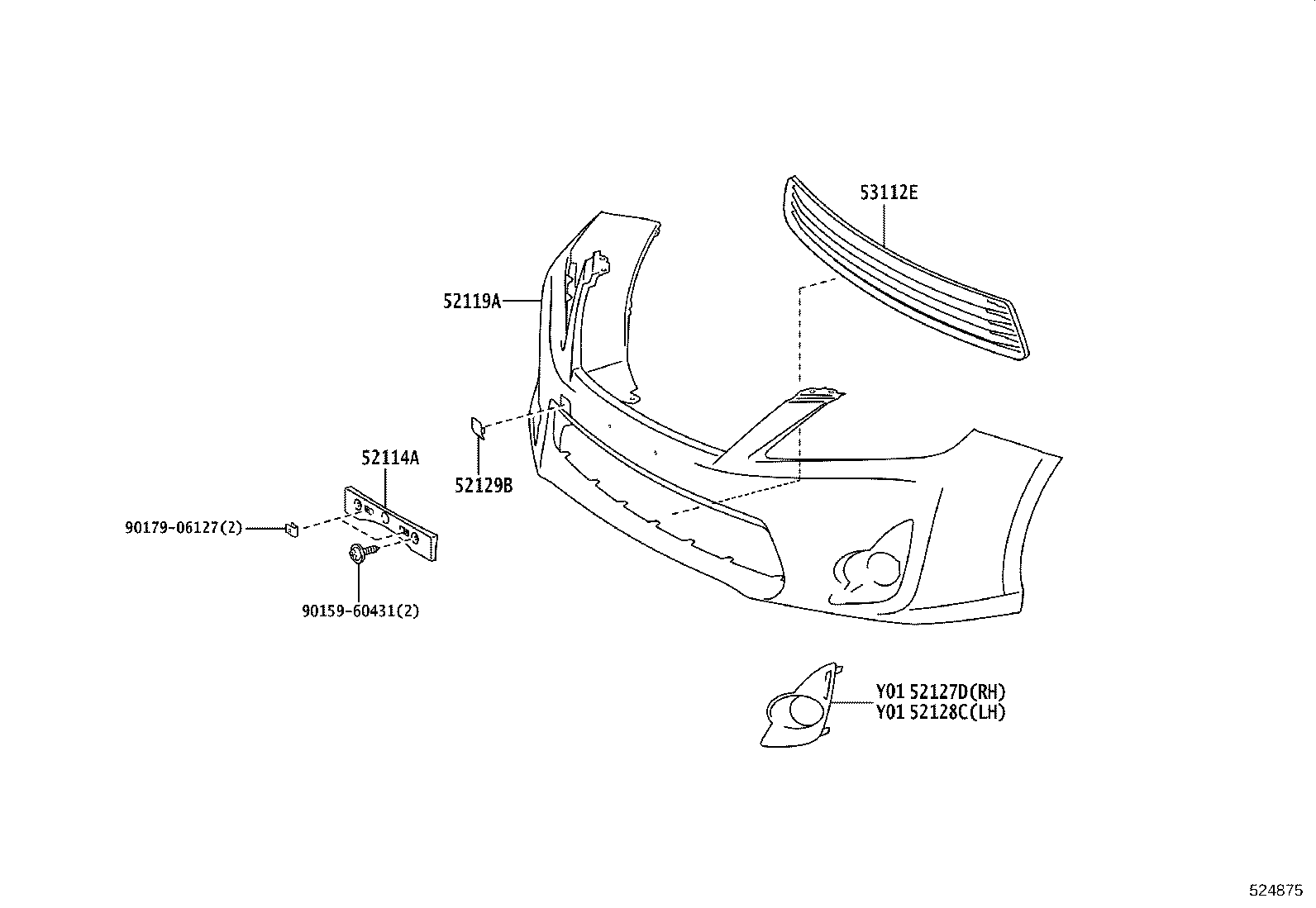

Front Bumper & Bumper Stay
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 51451C | Grommet(FOR ENGINE UNDER COVER) |
| 51451F | Grommet, NO.1 |
| 51451G | Grommet, NO.2 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52119C | Clip, Front Bumper Cover |
| 52119D | Screw, NO.1 |
| 52119E | Screw, NO.2 |
| 52127A | Bracket, Front Turn Signal Lamp, RH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52127H | Clip, Front Bumper Hole Cover |
| 52128A | Bracket, Front Turn Signal Lamp, LH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52161C | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53116C | Bracket, Radiator Grille, NO.2 |
| 53879H | Retainer, Front Fender Liner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
