Toyota Camry Hybrid
2011-08 → 2017-04 · chassis AVV50 · catalogue 284190 · Japan
Supported model
Data version 2017-10

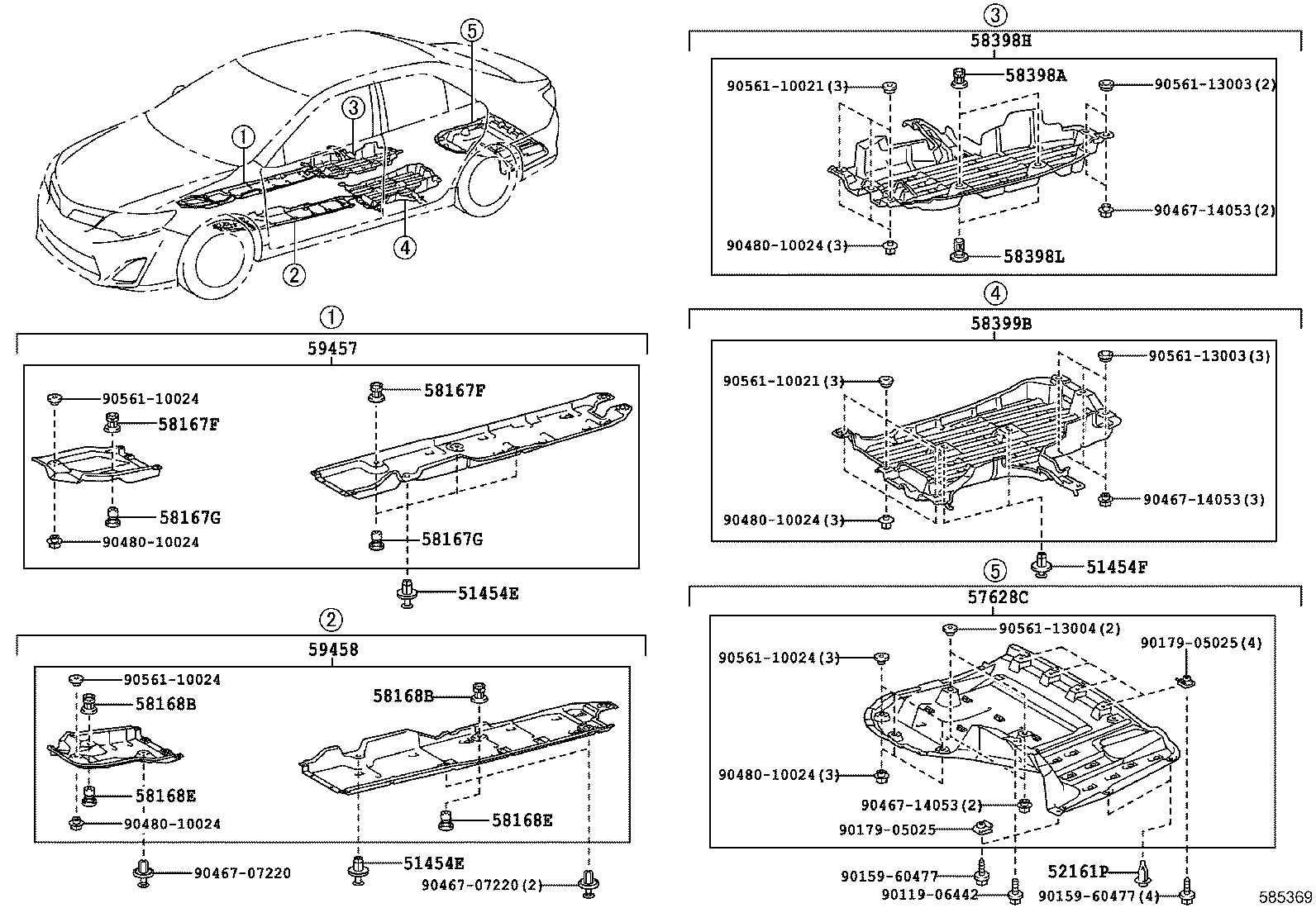

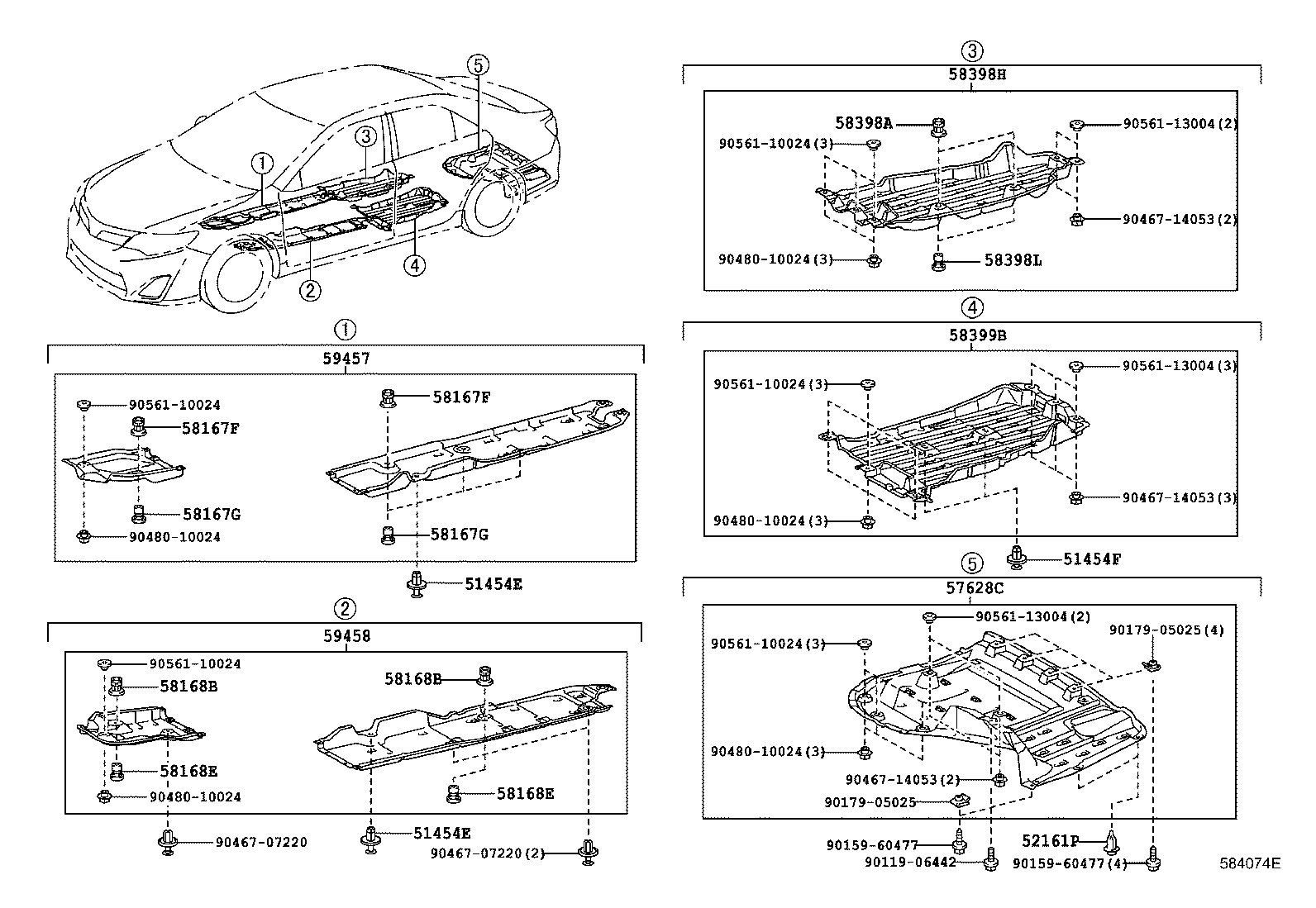

Floor Pan & Lower Back Panel
41 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51454E | Silencer, Front Floor Cover |
| 51454F | Silencer, Rear Floor Cover |
| 52161P | Piece, Rear Bumper |
| 57054B | Reinforcet Sub-assy, Crossmember Floor, NO.4 |
| 57628C | Cover, Rear Floor Side Member, LH |
| 57685A | Bracket, Rear Floor Mounting, NO.1 RH |
| 57695D | Bracket, Rear Floor Mounting, NO.2 RH |
| 57696B | Bracket, Rear Floor Mounting, NO.2 LH |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58111 | Pan, Front Floor |
| 58123A | Support, Shift & Select Lever |
| 58136 | Cover, Front Floor Hole |
| 58167F | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58167G | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 58168B | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58168E | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 58171 | Reinforcement, Parking Brake Base |
| 58189 | Reinforcement, Exhaust Pipe Clamp Bracket |
| 58202A | Pan Sub-assy, Center Floor, Front |
| 58211H | Pan, Center Floor |
| 58215C | Reinforcement, Center Floor Panel, NO.2 RH |
| 58216C | Reinforcement, Center Floor Panel, NO.2 LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58323E | Reinforcement, Rear Bumper Arm Support, RH |
| 58324D | Reinforcement, Rear Bumper Arm Support, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58336F | Reinforcement, Rear Floor Pan, RH |
| 58337D | Reinforcement, Rear Floor Pan, LH |
| 58351E | Bracket, Spare Wheel Clamp |
| 58369B | Bracket, Fuel Tube, NO.3 |
| 58385D | Bracket, Rear Bumper Cover |
| 58398A | Clip, NO.3(FOR FLOOR UNDER COVER) |
| 58398H | Cover, Floor Under, NO.1 |
| 58398L | Clip, NO.4(FOR FLOOR UNDER COVER) |
| 58399B | Cover, Floor Under, NO.2 |
| 58621F | Silencer, Center Console, NO.1 |
| 59457 | Cover, Front Floor Footrest, NO.2 RH |
| 59458 | Cover, Front Floor Footrest, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
