Toyota Camry Hybrid

2011-08 → 2017-04 · chassis AVV50 · catalogue 284190 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

21 part groups · 2 illustrations

Illustrations

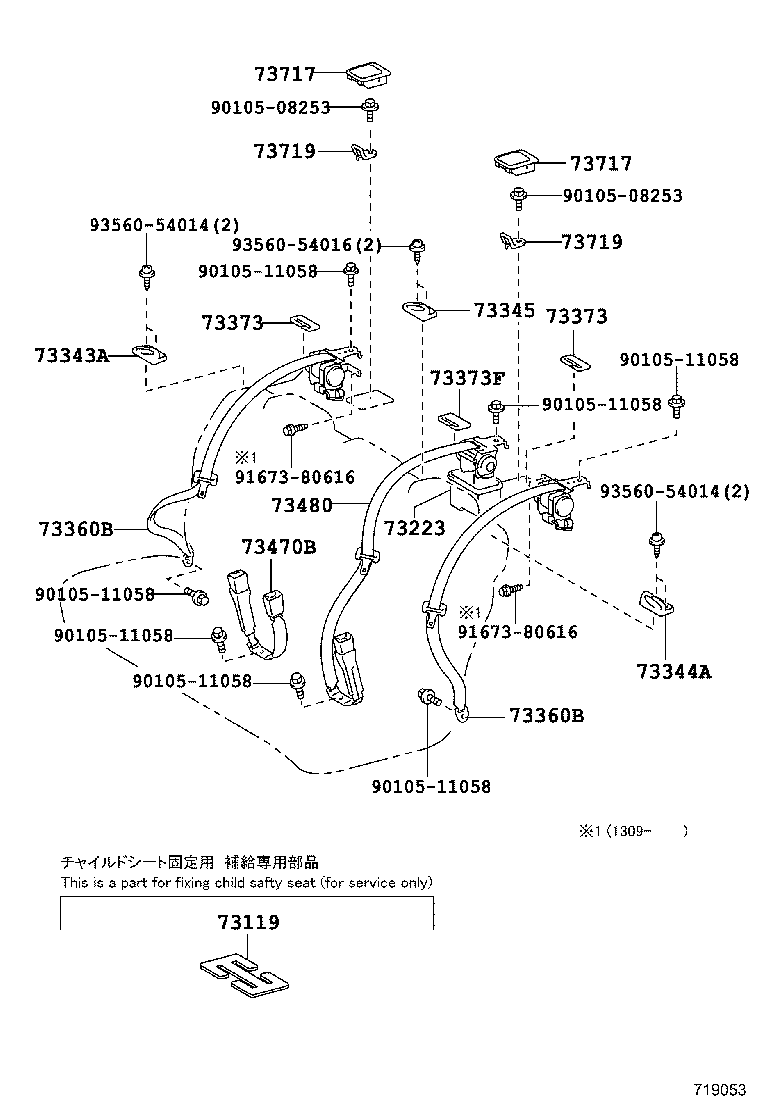

Figure 717148C 717148C 2011-08 → — Figure 719053 719053 2011-08 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73343A Guide, Rear Seat Shoulder Belt, RH
73344A Guide, Rear Seat Shoulder Belt, LH
73345 Guide, Rear Seat Shoulder Belt, Center
73360B Belt Assy, Rear Seat, Outer
73373 Cover, Rear Seat Shoulder Belt
73373F Cover, Rear Seat Shoulder Belt Hole
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73717 Cover, Child Restraint Seat Tether Anchor
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
