Toyota Camry Hybrid
2011-08 → 2017-04 · chassis AVV50 · catalogue 284190 · Japan
Supported model
Data version 2017-10

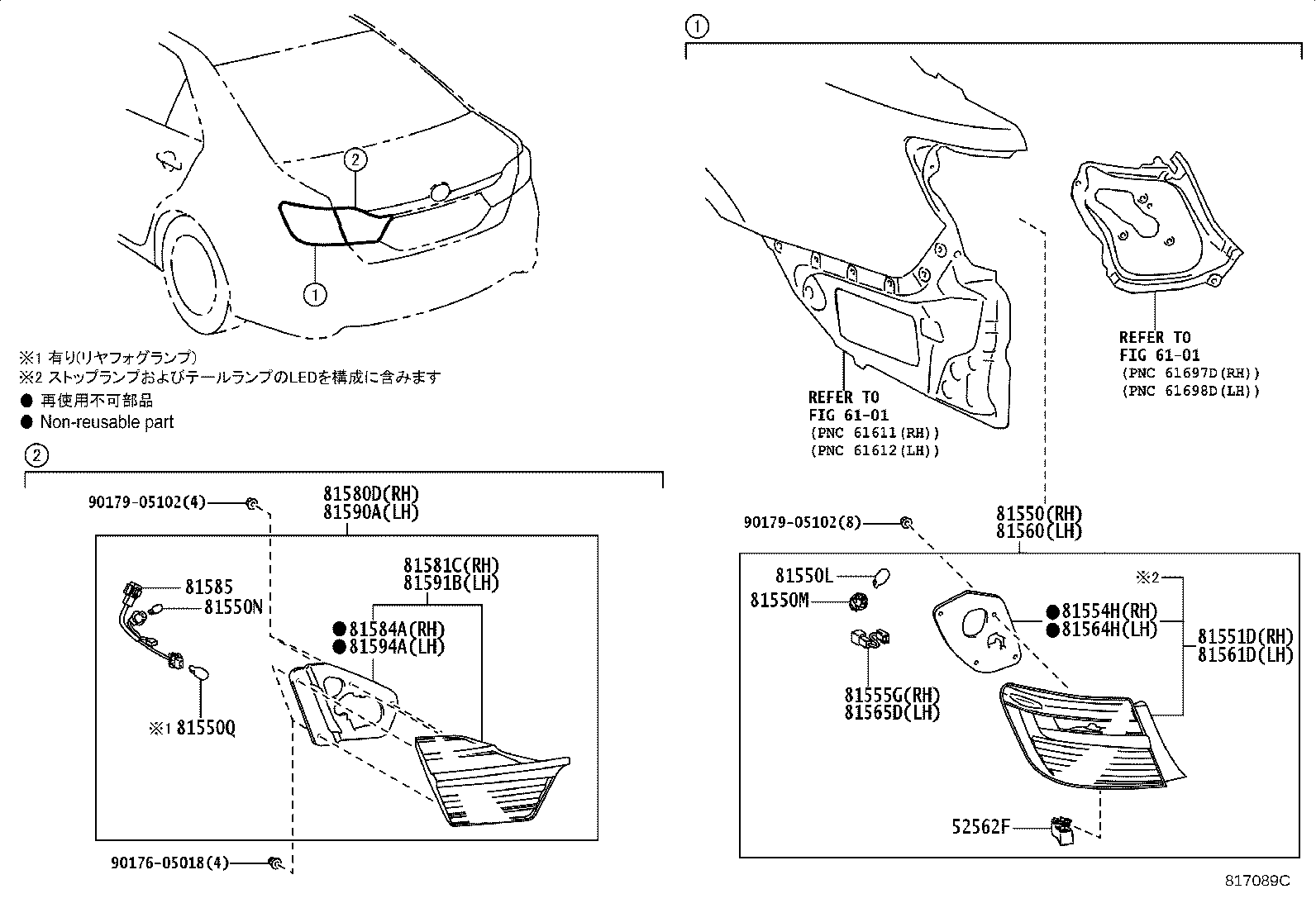

Rear Combination Lamp
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52562F | Retainer, Rear Bumper, Upper Side |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550F | Bulb, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550J | Socket, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550M | Socket, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81554H | Packing, Rear Combination Lamp, RH |
| 81555G | Cord, Rear Combination Lamp, RH |
| 81558M | Bracket, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81564H | Packing, Rear Combination Lamp, LH |
| 81565D | Cord, Rear Combination Lamp, LH |
| 81568K | Bracket, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
