Toyota Camry Hybrid

2011-08 → 2017-04 · chassis AVV50 · catalogue 284190 · Japan

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

102 part groups · 13 illustrations

Illustrations

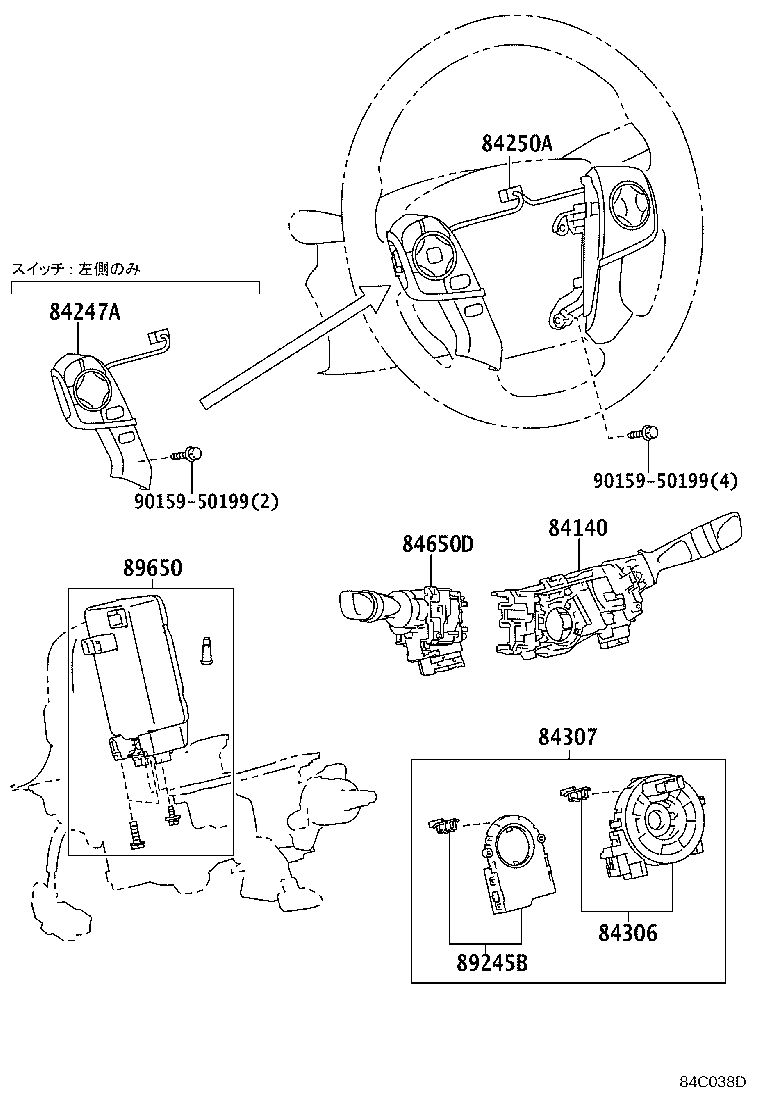

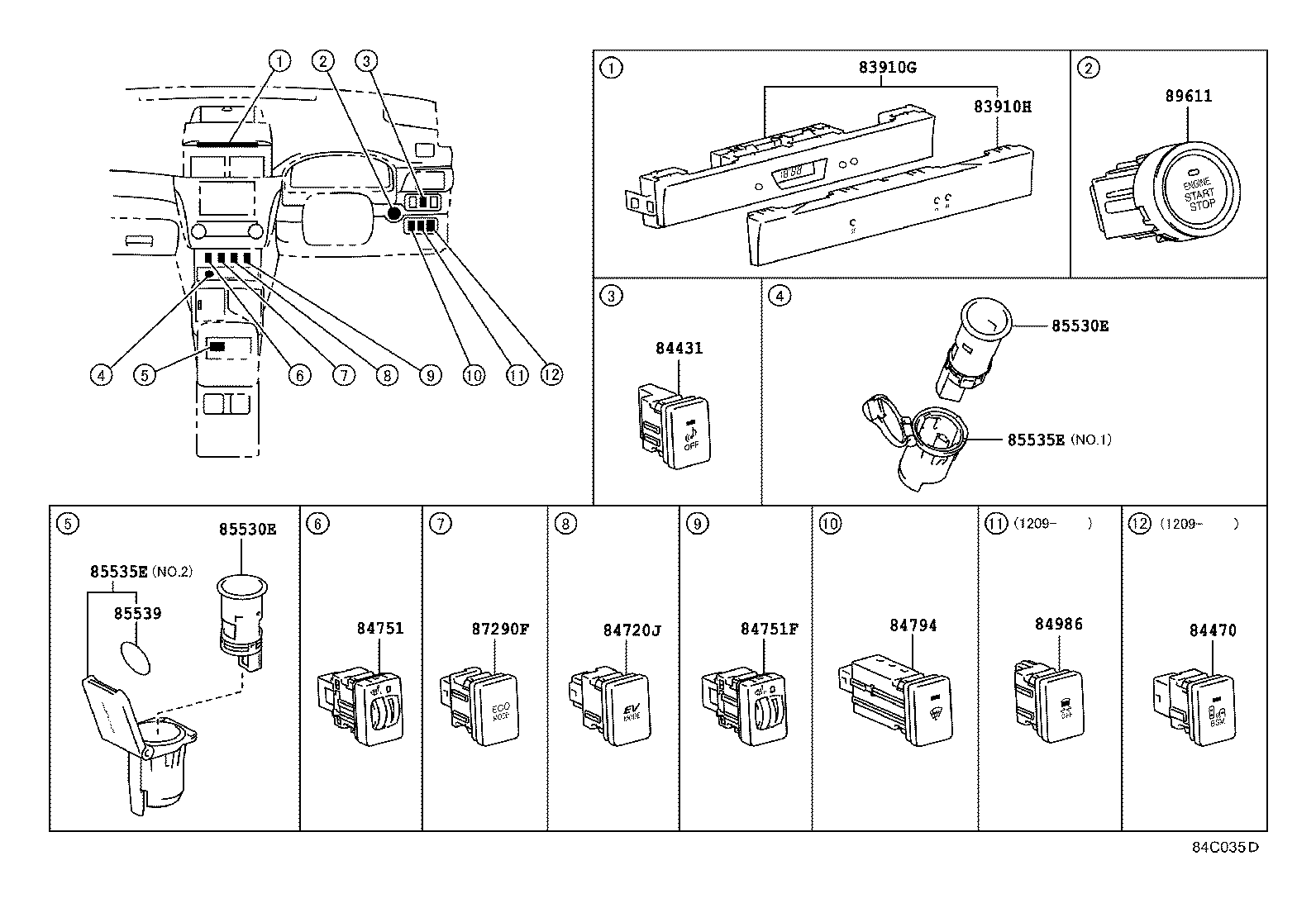

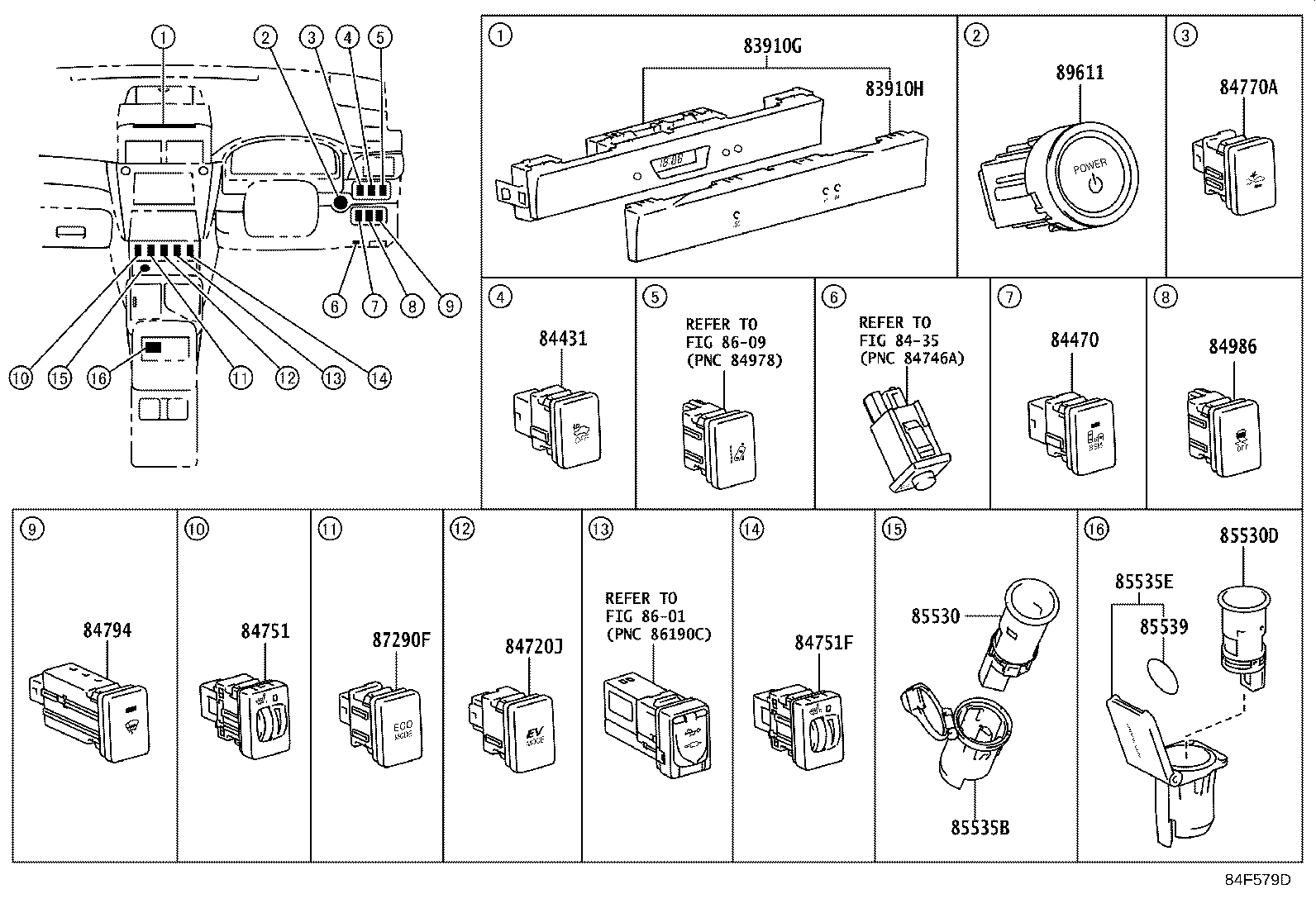

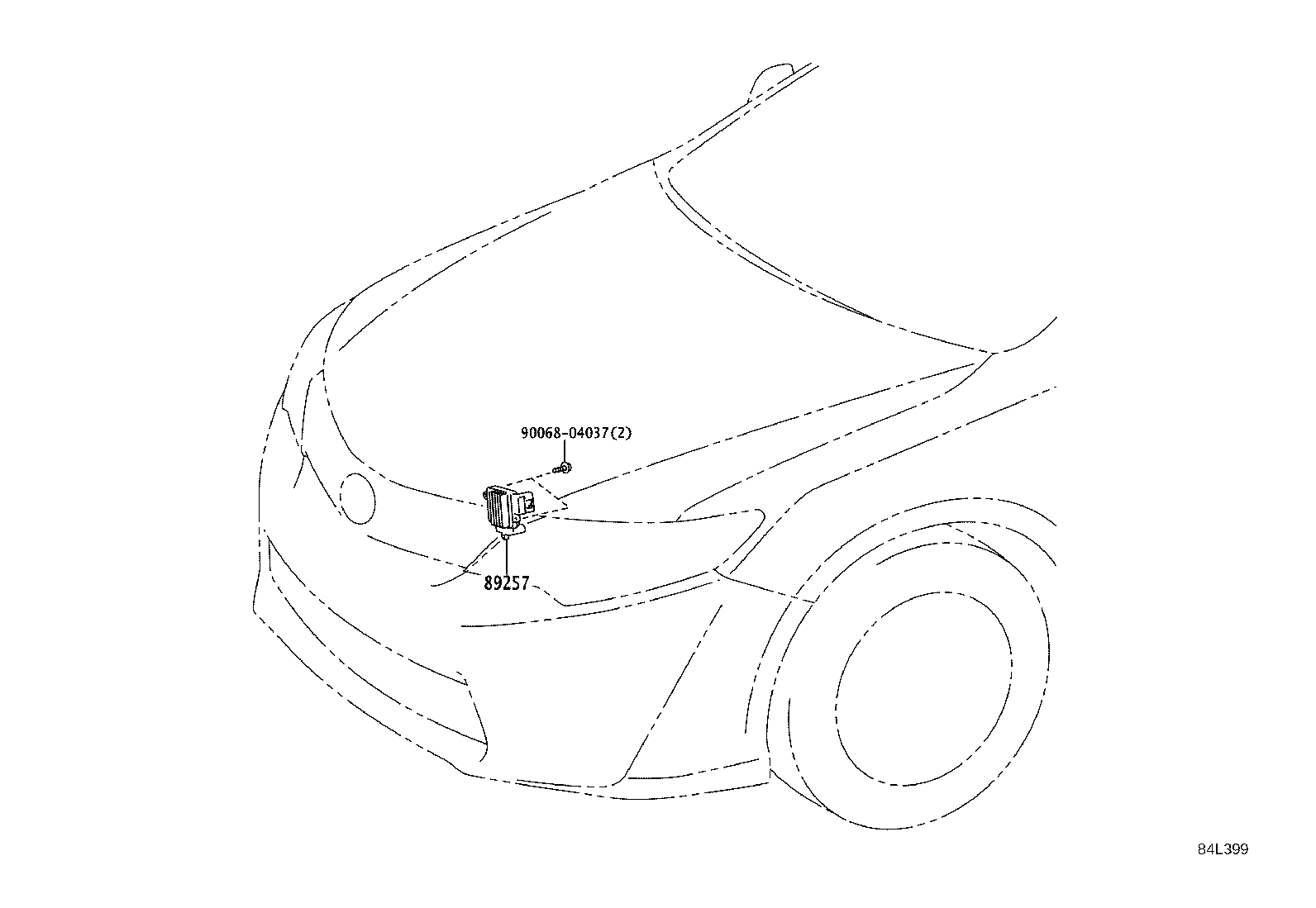

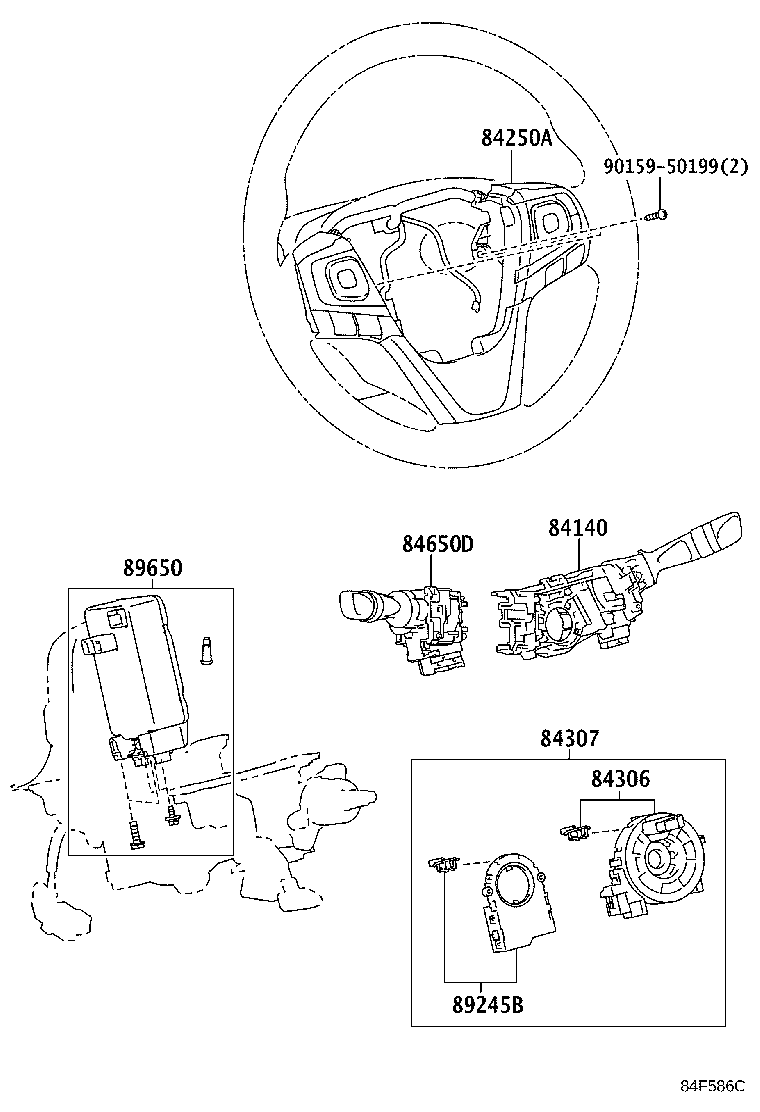

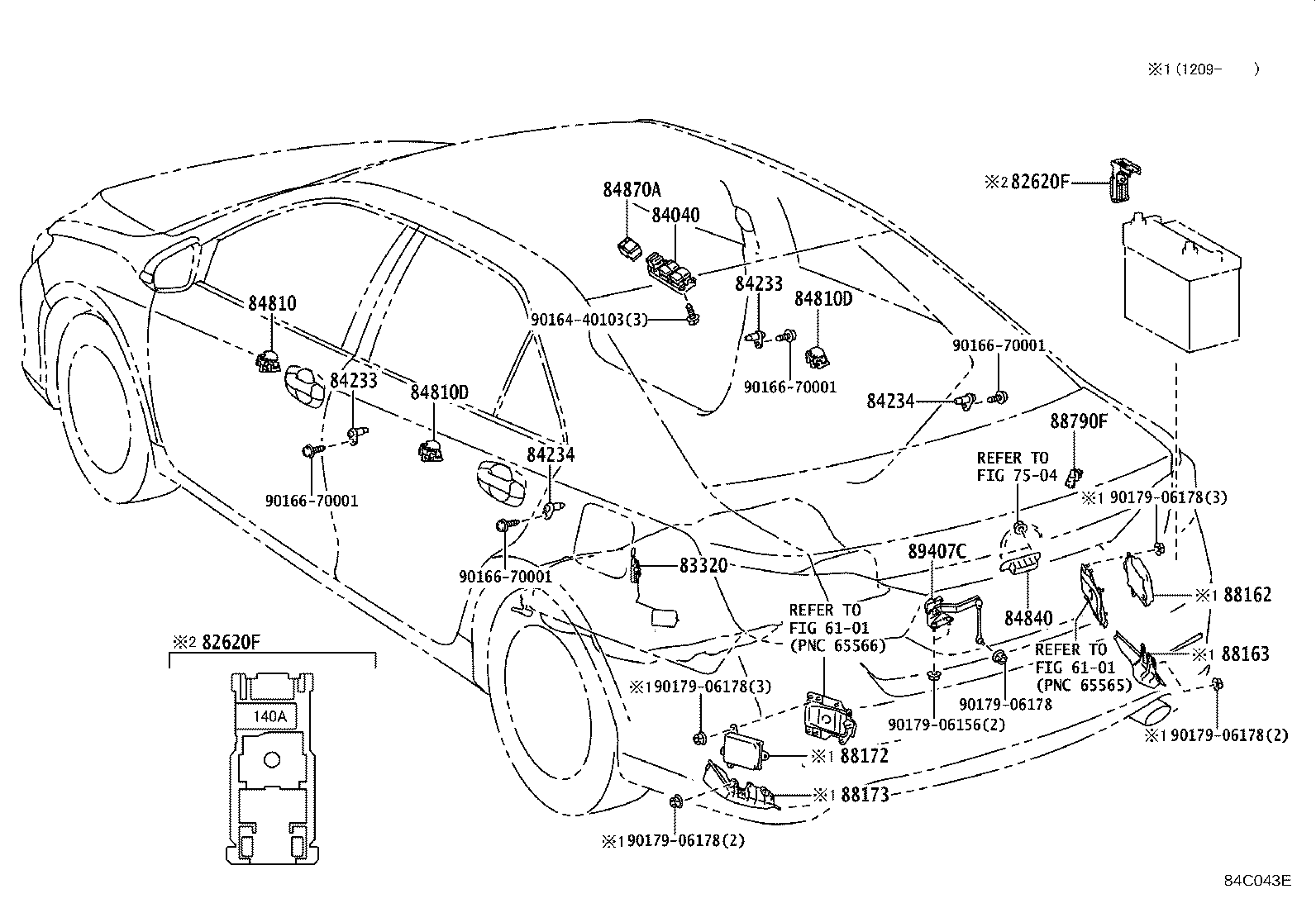

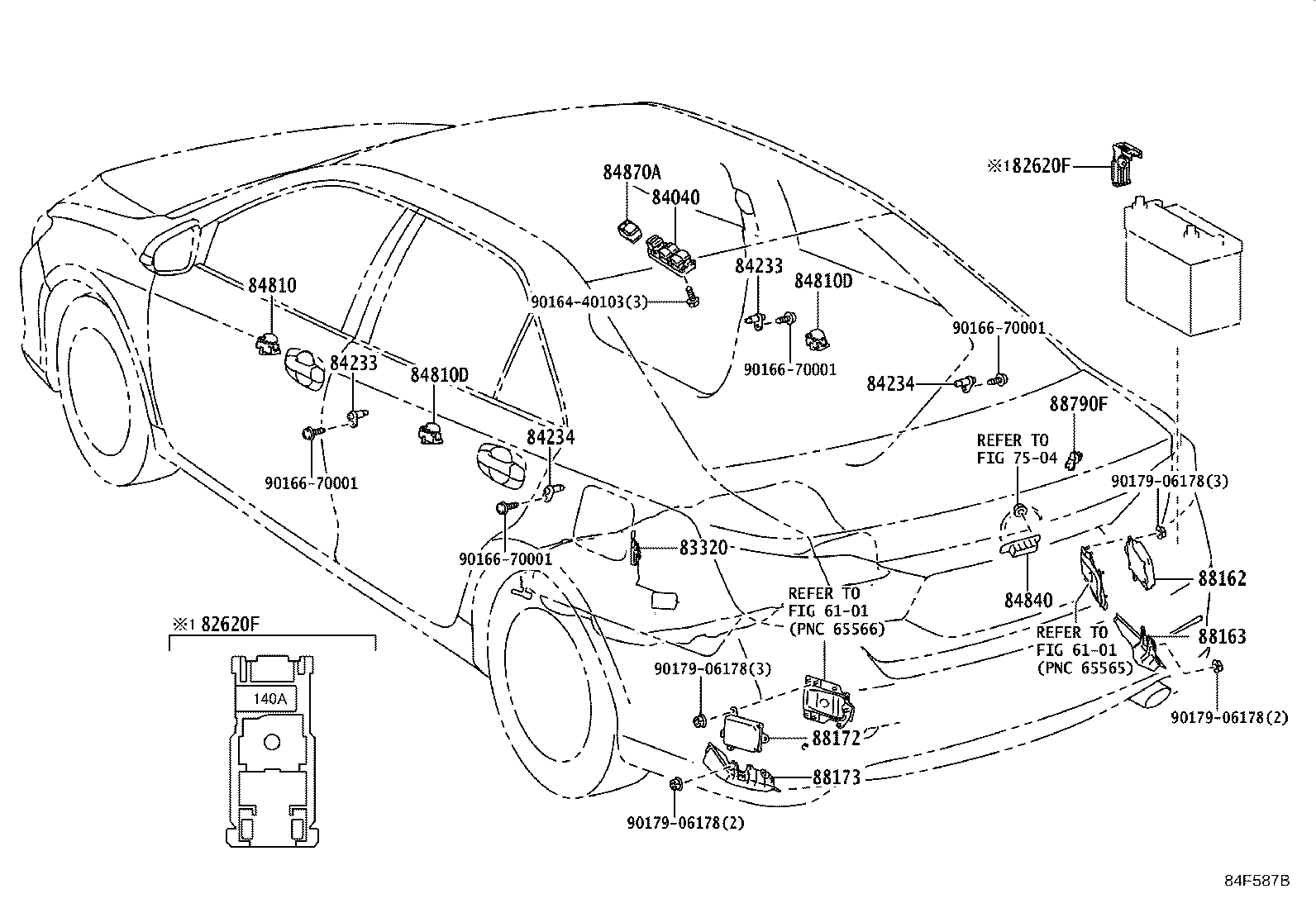

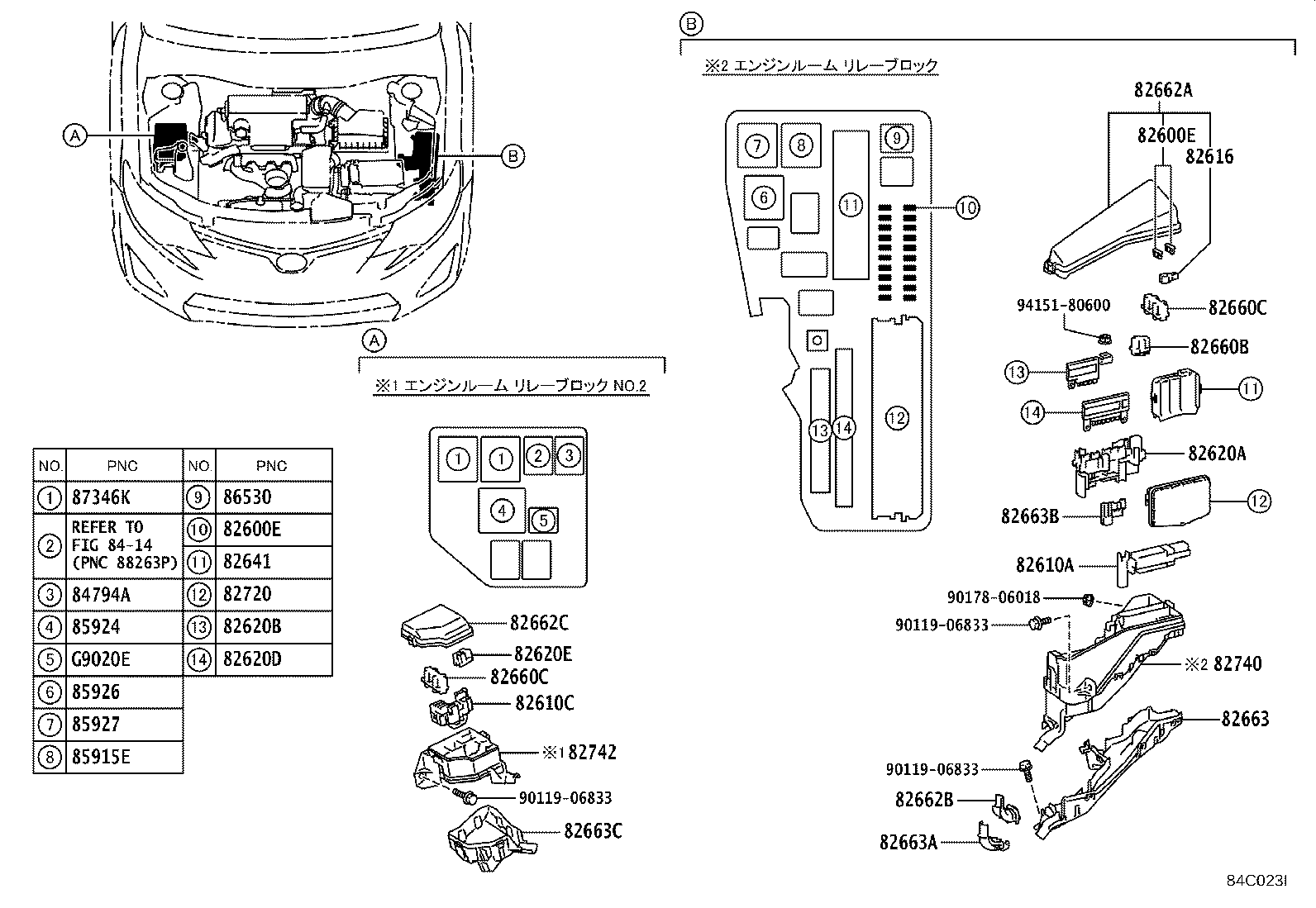

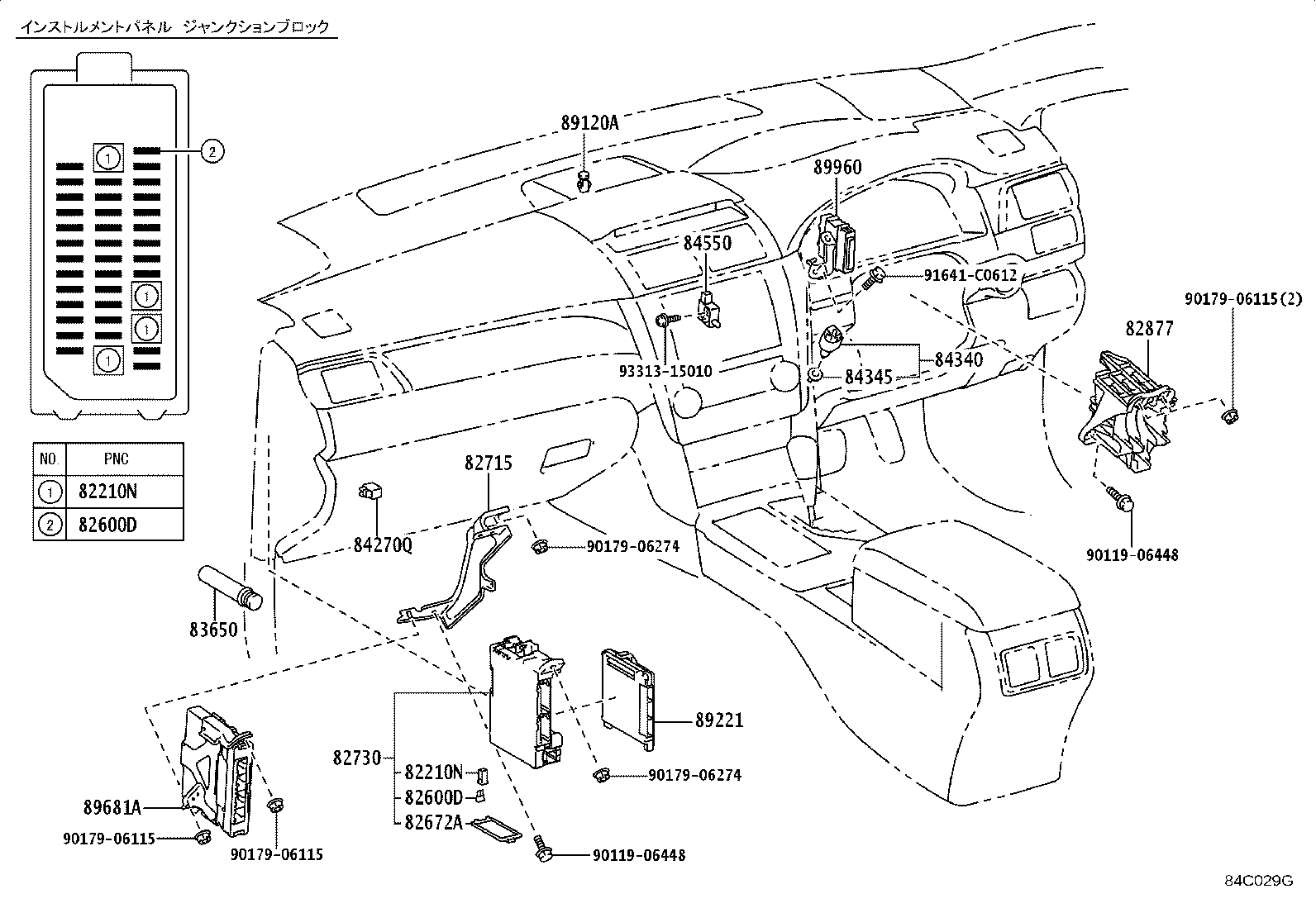

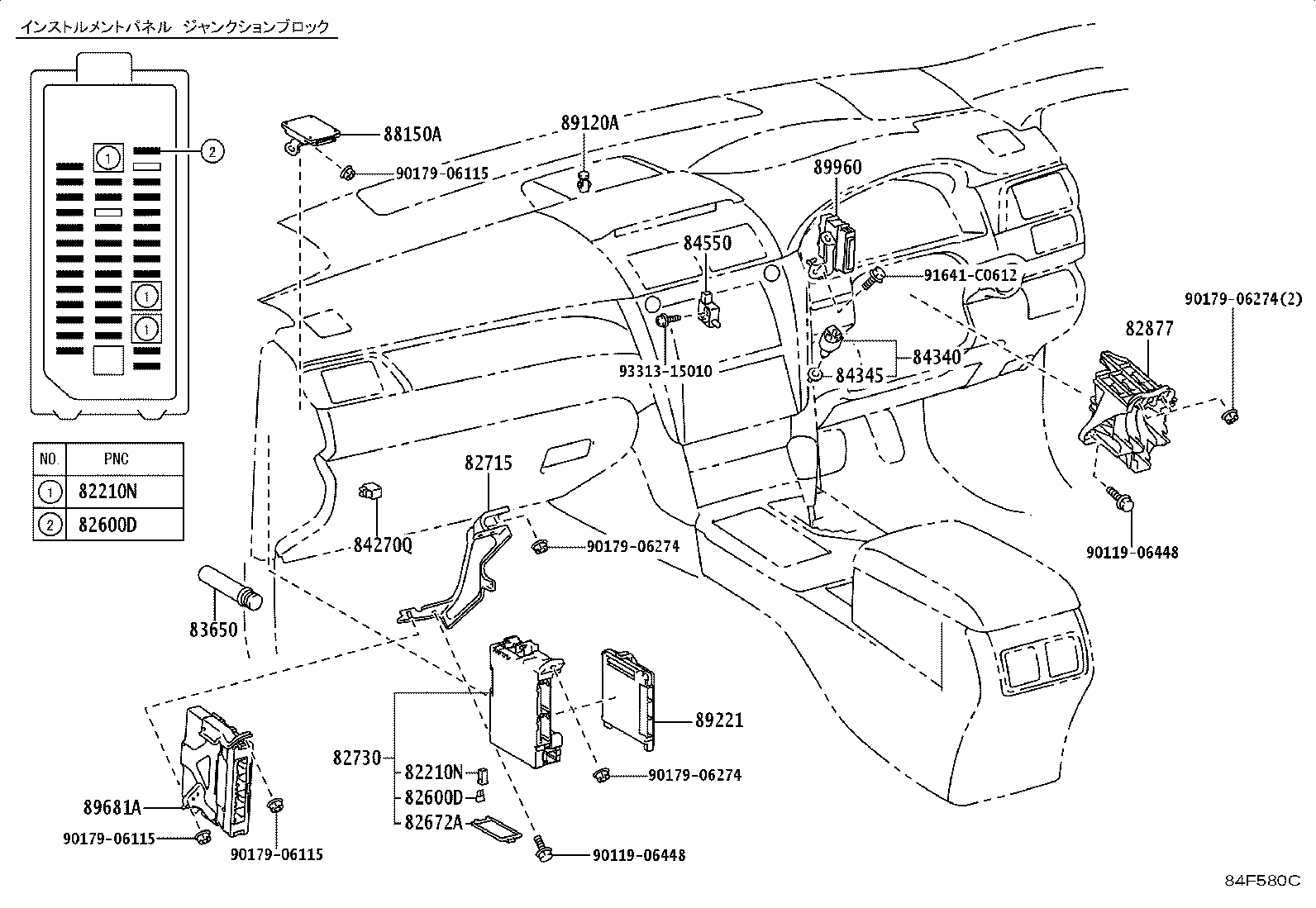

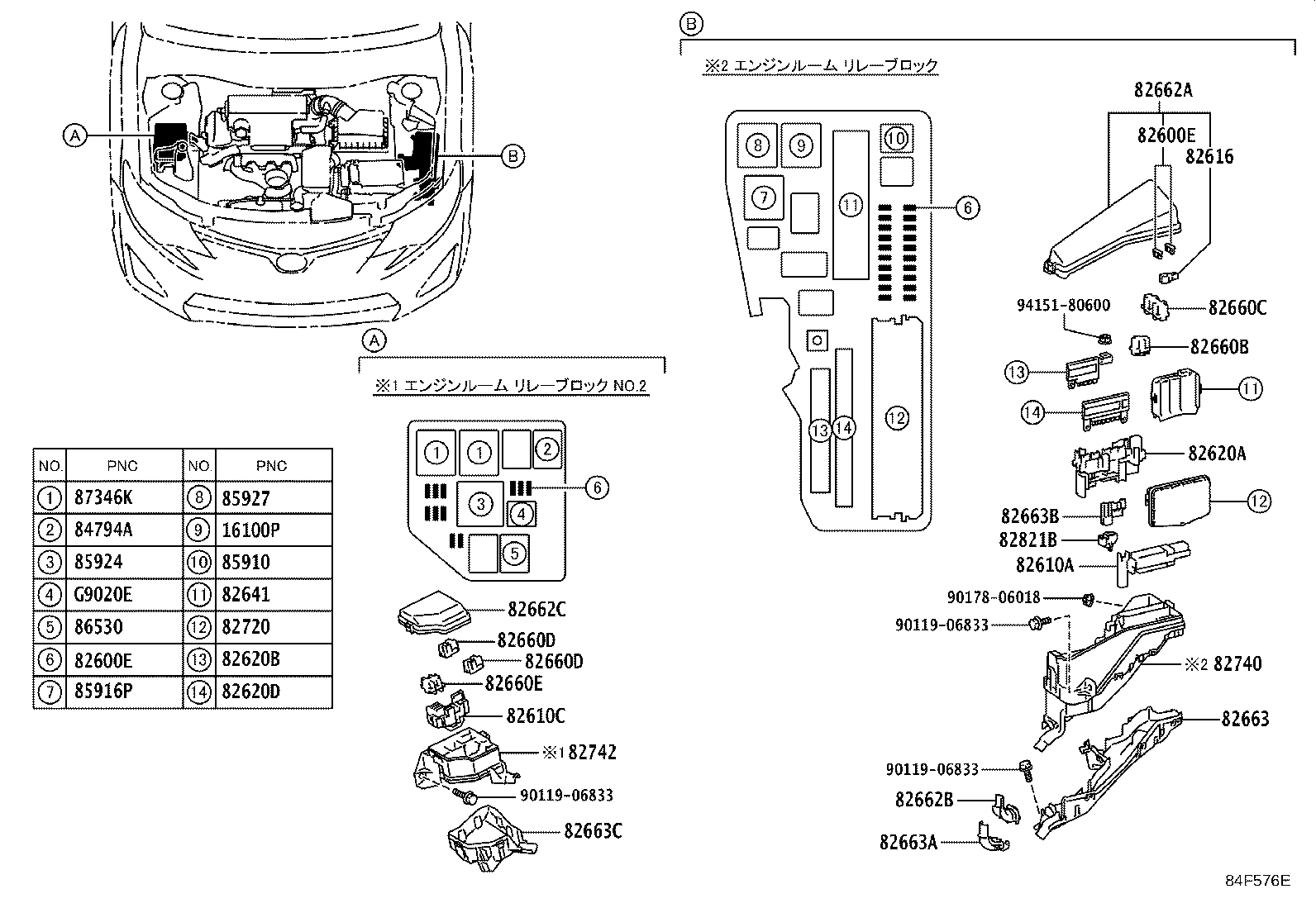

Figure 84C014B 84C014B 2011-08 → — Figure 84L399 84L399 2011-08 → — Figure 84C023I 84C023I 2011-08 → 2014-09 Figure 84F576E 84F576E 2014-09 → — Figure 84C029G 84C029G 2011-08 → 2014-09 Figure 84F580C 84F580C 2014-09 → — Figure 84C035D 84C035D 2011-08 → 2014-09 Figure 84F579D 84F579D 2014-09 → — Figure 84C038D 84C038D 2011-08 → 2014-09 Figure 84F586C 84F586C 2014-09 → — Figure 84C041A 84C041A 2011-08 → — Figure 84C043E 84C043E 2011-08 → 2014-09 Figure 84F587B 84F587B 2014-09 → —

Part groups

PNCDescription
16100P Relay, Water Pump
82210N Instrument Panel Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672A Cover, Junction Block
82715 Bracket,Wiring Harness Clamp
82720 Block Assy, Engine Room Junction
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821B Cover, Connector
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83910G Clock Assy
83910H Lens, Clock
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84431 Switch, Vehicle Approaching Speaker
84470 Switch Assy, Warning Canceling
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720J Switch Assy, Pattern Select
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840 Switch Assy, Luggage Compartment Door Opening
84870A Switch Assy, Outer Mirror
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84986 Switch, Vehicle Stability Control
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85539 Label, Power Outlet Notice
85910 Relay Assy, Circuit Opening
85915E Relay
85916P Relay, Headlamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
86530 Relay Assy, Horn
87290F Switch Assy, Eco
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88173 Cover, Blind Spot Monitor, LH
88790F Thermistor Assy
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89257 Computer, Cooling Fan
89407C Sensor Sub-assy, Height Control, Rear
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89960 Computer Assy, Headlamp Leveling
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
