Toyota Camry Hybrid
2011-08 → 2017-04 · chassis AVV50 · catalogue 284190 · Japan
Supported model
Data version 2017-10
Navigation & Front Monitor Display

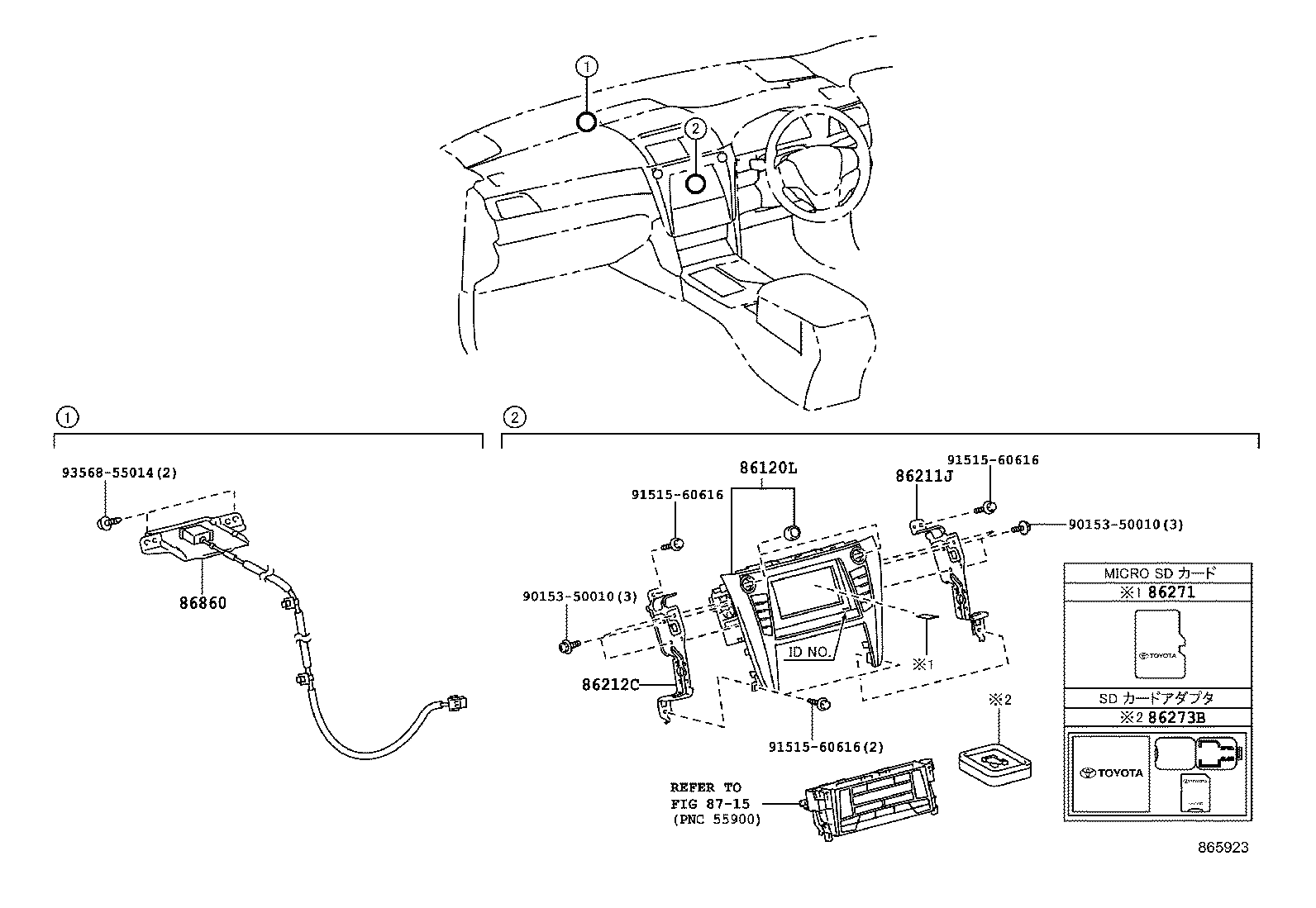

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86120L | Receiver Assy, Navigation |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86273B | Adapter, Disc Player |
| 86804A | Sub-assy, Navigation Computer |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
